T98 1+1

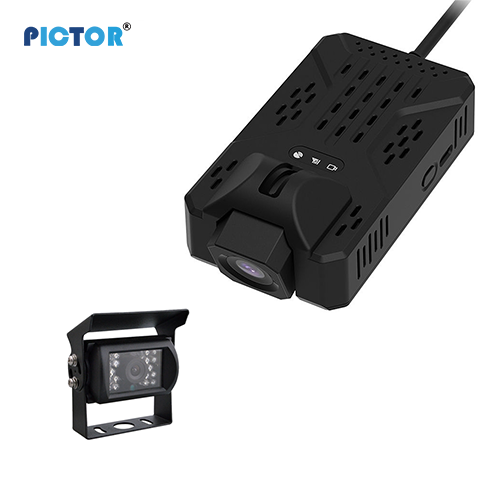

The Pictor T98 1+1 is a 1+1 (2CH) 4G Dash Cam equipped with a TF card slot supporting up to 512 GB. It features optional Lora support and can connect to an external AHD camera.

Get a quote Request demo

Sales 1800 123 2632

Need specs or bulk pricing? Contact our team — we usually respond within one business day.

pictor — product

SKU T9811

Why operators choose us

Proven deployment and support

From specs to installation, we help teams launch faster with fewer surprises.

9,00,000+

Devices sending data via our platform since 2014.

7,000+

Paying customers with live vehicles and assets since 2014.

118+

Indian cities with active customers since 2014.

12+ years

Commercial fleet deployments operating since 2014.

SKU: T9811 Dashcams

The Pictor T98 1+1 is a 1+1 (2CH) 4G Dash Cam equipped with a TF card slot supporting up to 512 GB. It features optional Lora support and can connect to an external AHD camera.

How to evaluate this product

Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.

Compare options See related solutions Explore technology stack

Key Highlights

2CH 1080P resolution HD loop video
Supported
Supports BSJ LoRa sensor
Mic (G711_A)
TF card slot up to 512 GB

Request Pricing & Demo

Downloads

T98 1+1 AI alarm process protocol T98 1+1 AI JT808-2013 The terminal communication protocol and data format of the road transport vehicle satellit T98 1+1 Dashcam T98 1+1 English Video Protocol

Specifications

Technical Specifications

Use this table for compatibility checks, deployment planning, and integration review.

Parameter	Value
resolution	2.0MP
pixel_size	1920 x 1080p
lens	3.6mm (AI Camera) / 2.9mm (Standard)
colors	Full colour
operating_system	Linux
network_bands	LTE FDD/LTE-TDD: B1, B2, B3, B5, B7, B8, B20, B28, B4/66, B38, B41
field_of_view	90D 62H 45V / 144.9D 120.3H 63.6V (Standard)
pan_tilt	70°
white_balance	Automatic
operating_power	DC 9-36V
power_consumption - online_sleep	18mA @ 12V
power_consumption - normal	174mA @ 12V
power_consumption - full_load	194mA @ 12V
dimensions	107mm x 60mm x 37mm
weight	About 145g
connector_type	BMW head 8-pin female
environmental_limits - working_temperature	-20°C to 70°C
environmental_limits - storage_temperature	-40°C to 85°C
environmental_limits - humidity	<95%
regulatory_compliance	CE, FCC
wiring_pinout - red	V+
wiring_pinout - black	GND
wiring_pinout - orange	ACC
wiring_pinout - yellow	Fuel-
wiring_pinout - white	SOS
wiring_pinout - purple	Right
wiring_pinout - gray	High/Left
wiring_pinout - brown	ADC

Features

Product Features

Features listed here should be evaluated against your route profile, risk controls, and team workflows.

#	Feature
1	2CH 1080P resolution HD loop video
2	Supported
3	Supports BSJ LoRa sensor
4	Mic (G711_A)
5	TF card slot up to 512 GB

Overview

About T98 1+1

The Pictor T98 1+1 is a 1+1 (2CH) 4G Dash Cam equipped with a TF card slot supporting up to 512 GB. It features optional Lora support and can connect to an external AHD camera.

FAQ

Frequently Asked Questions about T98 1+1

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.

A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.

T98 1+1 can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.

T98 1+1 is an AI-powered dashcam that records road footage while providing real-time driver behaviour monitoring and GPS tracking. It captures HD video (1080p/720p), stores footage locally, and syncs critical events to the cloud for fleet managers.

Yes. Our dashcams combine video evidence and tracking in a format that supports safety reviews, incident documentation, and regulated fleet workflows.

T98 1+1 records in 1080p Full HD or 720p HD depending on the model. Dual-channel versions capture both road-facing and driver-facing footage. Video is stored on an SD card with optional cloud backup for incident evidence.

T98 1+1 uses AI-based driver monitoring to detect distraction, drowsiness, phone use, and smoking. Alerts are sent in real-time to fleet managers, helping reduce accidents and improve driver safety.

Yes. T98 1+1 records and stores video locally on an SD card. When 4G connectivity is available, it uploads critical events (collisions, harsh braking, speeding) to the cloud. Offline recording continues seamlessly.

Dashcam pricing varies by features—single/dual channel, 4G connectivity, and AI capabilities. Contact Pictor for a competitive quote. We offer fleet discounts and flexible payment options for businesses.

Video storage depends on SD card capacity (typically 32GB–128GB) and recording settings. Loop recording overwrites old footage. Critical events are uploaded to cloud storage and retained as per your subscription plan.
