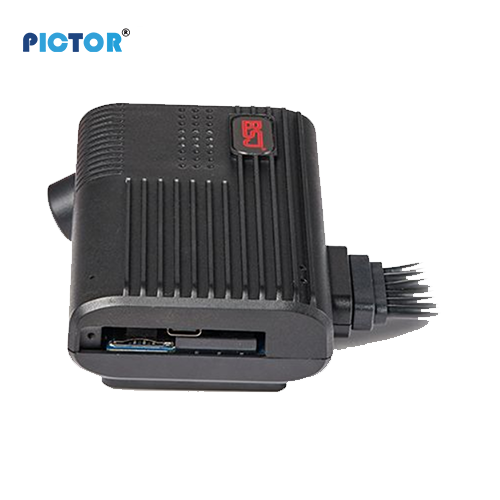

PICTOR T98 1+3 AI 4G Smart Dash Cam (4G Smart Video Terminal)

The PICTOR T98 1+3 AI Dashcam is a 4G-enabled smart video terminal designed for fleet surveillance and intelligent driver monitoring. It integrates HD multi-channel recording, GPS positioning, LTE connectivity, WiFi, and AI-based ADAS/DMS s...

Get a quote Request demo

Sales 1800 123 2632

Need specs or bulk pricing? Contact our team — we usually respond within one business day.

pictor — product

SKU T98 1+3 AI Dashcam

Why operators choose us

Proven deployment and support

From specs to installation, we help teams launch faster with fewer surprises.

9,00,000+

Devices sending data via our platform since 2014.

7,000+

Paying customers with live vehicles and assets since 2014.

118+

Indian cities with active customers since 2014.

12+ years

Commercial fleet deployments operating since 2014.

SKU: T98 1+3 AI Dashcam Dashcams

How to evaluate this product

Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.

Compare options See related solutions Explore technology stack

Key Highlights

1 Channel 1080P + 3 Channel 720P HD Recording
Real-time GPS location tracking (longitude, latitude, speed)
ADAS: Lane departure and collision warning
DMS: Fatigue, distraction, smoking, phone usage detection
Voice warning alerts

Request Pricing & Demo

Downloads

T98 1+3 AI alarm process protocol T98 1+3 AI JT808-2013 The terminal communication protocol and data format of the road transport vehicle satellit T98 1+3 English Video Protocol T98 AI 1+3-1

Specifications

Technical Specifications

Use this table for compatibility checks, deployment planning, and integration review.

Parameter	Value
operating_system	Linux
processor	Quad-Core A53
ram	1GB
rom	8GB
video_input	1×1080P AHD + 3×720P AHD
video_format	MP4
video_codec	H.264
audio_codec	G711A
audio_input	2-channel PCM
audio_output	1-channel PCM (internal speaker)
storage	Dual TF Card (Up to 256GB each)
wifi	Built-in 2.4GHz
network_support	2G / 3G / 4G LTE
backup_battery	3.7V 2000mAh
working_voltage	DC 10V–36V
power_consumption - 12V_no_load	420mA
power_consumption - 24V_no_load	240mA
power_consumption - sleep_current_12V	6mA
operating_temperature	-20°C to +60°C
storage_temperature	-30°C to +80°C
dimensions	110mm × 70mm × 28mm
code_rate - main_stream	1792 Kbps
code_rate - sub_stream	512 Kbps
lte_bands - lte_tdd	B34, B38, B39, B40, B41
lte_bands - lte_fdd	B1, B3, B5, B8
lte_bands - wcdma	B1, B5, B8
lte_bands - gsm	900MHz, 1800MHz
recording_mode	Loop Recording
remote_features	Remote video playback, Remote capture command, Remote intercom, OTA remote upgrade

Features

Product Features

Features listed here should be evaluated against your route profile, risk controls, and team workflows.

#	Feature
1	1 Channel 1080P + 3 Channel 720P HD Recording
2	Real-time GPS location tracking (longitude, latitude, speed)
3	ADAS: Lane departure and collision warning
4	DMS: Fatigue, distraction, smoking, phone usage detection
5	Voice warning alerts
6	Real-time video upload and historical playback
7	Overspeed alarm
8	Low voltage alarm
9	Vehicle power-off alarm
10	Blind area data storage and upload
11	ACC ON/OFF status tracking
12	Built-in 2.4GHz WiFi
13	Dual TF card support (up to 256GB each)

Overview

About PICTOR T98 1+3 AI 4G Smart Dash Cam (4G Smart Video Terminal)

The T98 1+3 AI Dashcam supports 1 channel 1080P and 3 channels 720P AHD recording with real-time upload and remote playback. Powered by a quad-core A53 processor and Linux OS, it enables intelligent fleet monitoring through ADAS (lane departure and collision warning) and DMS (fatigue, distraction, smoking, phone usage detection). The device supports dual TF cards up to 256GB each, LTE connectivity, built-in WiFi, OTA upgrades, remote intercom, blind area data storage, and comprehensive alarm reporting for commercial transport applications.

FAQ

Frequently Asked Questions about PICTOR T98 1+3 AI 4G Smart Dash Cam (4G Smart Video Terminal)

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.

A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.

PICTOR T98 1+3 AI 4G Smart Dash Cam (4G Smart Video Terminal) can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.

PICTOR T98 1+3 AI 4G Smart Dash Cam (4G Smart Video Terminal) is an AI-powered dashcam that records road footage while providing real-time driver behaviour monitoring and GPS tracking. It captures HD video (1080p/720p), stores footage locally, and syncs critical events to the cloud for fleet managers.

Yes. Our dashcams combine video evidence and tracking in a format that supports safety reviews, incident documentation, and regulated fleet workflows.

PICTOR T98 1+3 AI 4G Smart Dash Cam (4G Smart Video Terminal) records in 1080p Full HD or 720p HD depending on the model. Dual-channel versions capture both road-facing and driver-facing footage. Video is stored on an SD card with optional cloud backup for incident evidence.

PICTOR T98 1+3 AI 4G Smart Dash Cam (4G Smart Video Terminal) uses AI-based driver monitoring to detect distraction, drowsiness, phone use, and smoking. Alerts are sent in real-time to fleet managers, helping reduce accidents and improve driver safety.

Yes. PICTOR T98 1+3 AI 4G Smart Dash Cam (4G Smart Video Terminal) records and stores video locally on an SD card. When 4G connectivity is available, it uploads critical events (collisions, harsh braking, speeding) to the cloud. Offline recording continues seamlessly.

Dashcam pricing varies by features—single/dual channel, 4G connectivity, and AI capabilities. Contact Pictor for a competitive quote. We offer fleet discounts and flexible payment options for businesses.

Video storage depends on SD card capacity (typically 32GB–128GB) and recording settings. Loop recording overwrites old footage. Critical events are uploaded to cloud storage and retained as per your subscription plan.
