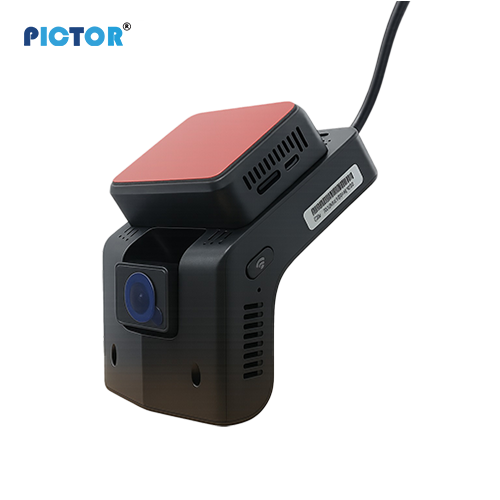

T98 AI Dual Channel (Model: H20P )

The H20P is a comprehensive automotive active safety product integrating satellite positioning, video monitoring, and active safety features. Designed for fleet monitoring, management, driving safety, and standardized driving behavior, it i...

Need specs or bulk pricing? Contact our team — we usually respond within one business day.

pictor — product

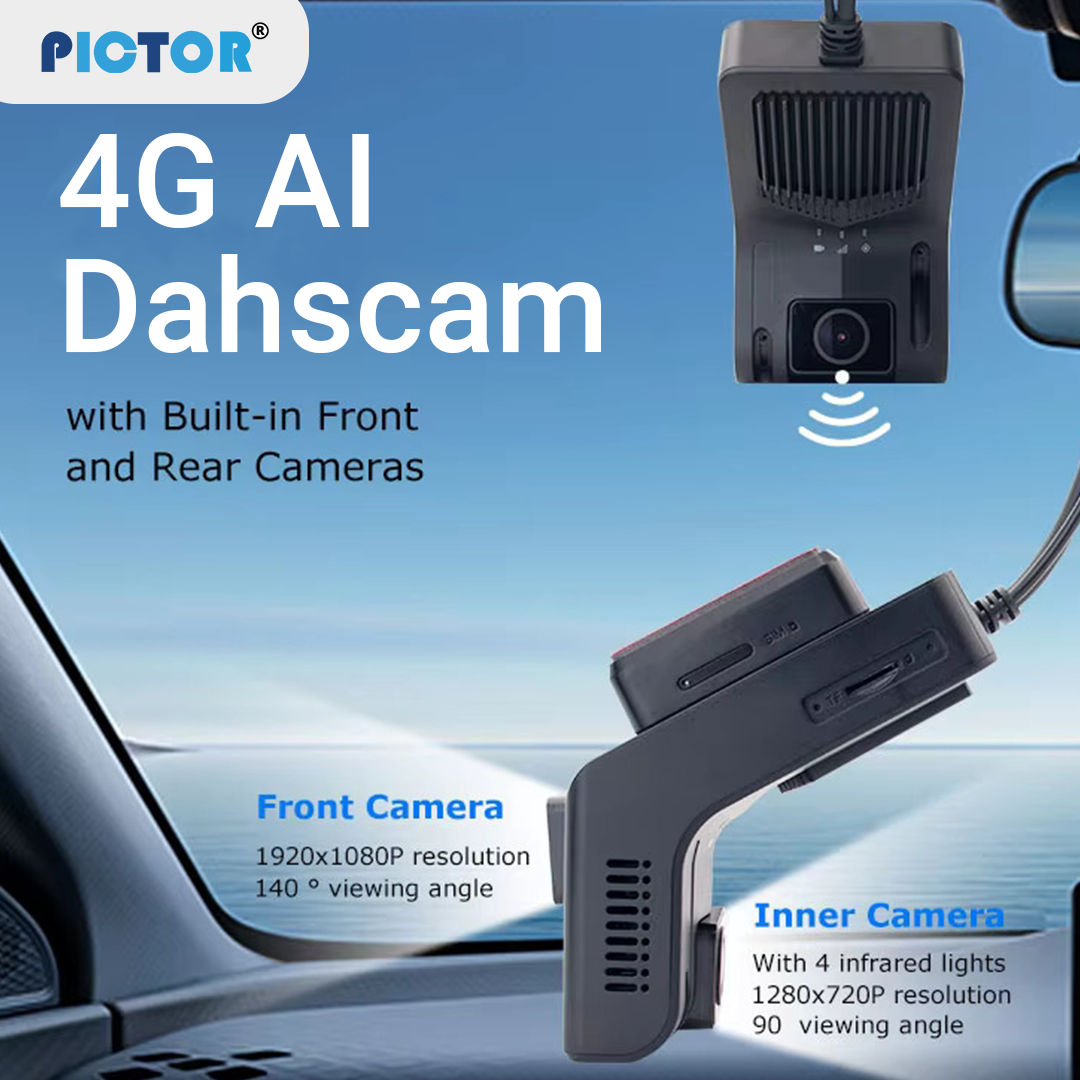

T98 Dual Channel AI 1.png
SKU T98DualChannel

Why operators choose us

Proven deployment and support

From specs to installation, we help teams launch faster with fewer surprises.

9,00,000+
Devices sending data via our platform since 2014.
7,000+
Paying customers with live vehicles and assets since 2014.
118+
Indian cities with active customers since 2014.
12+ years
Commercial fleet deployments operating since 2014.
T98 Dual Channel AI 1.png
SKU: T98DualChannel Dashcams

The H20P is a comprehensive automotive active safety product integrating satellite positioning, video monitoring, and active safety features. Designed for fleet monitoring, management, driving safety, and standardized driving behavior, it incorporate...

How to evaluate this product

Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.

Key Highlights

  • Support real-time video, playback, emergency alerts, TTS text messages, and dual IP reporting.

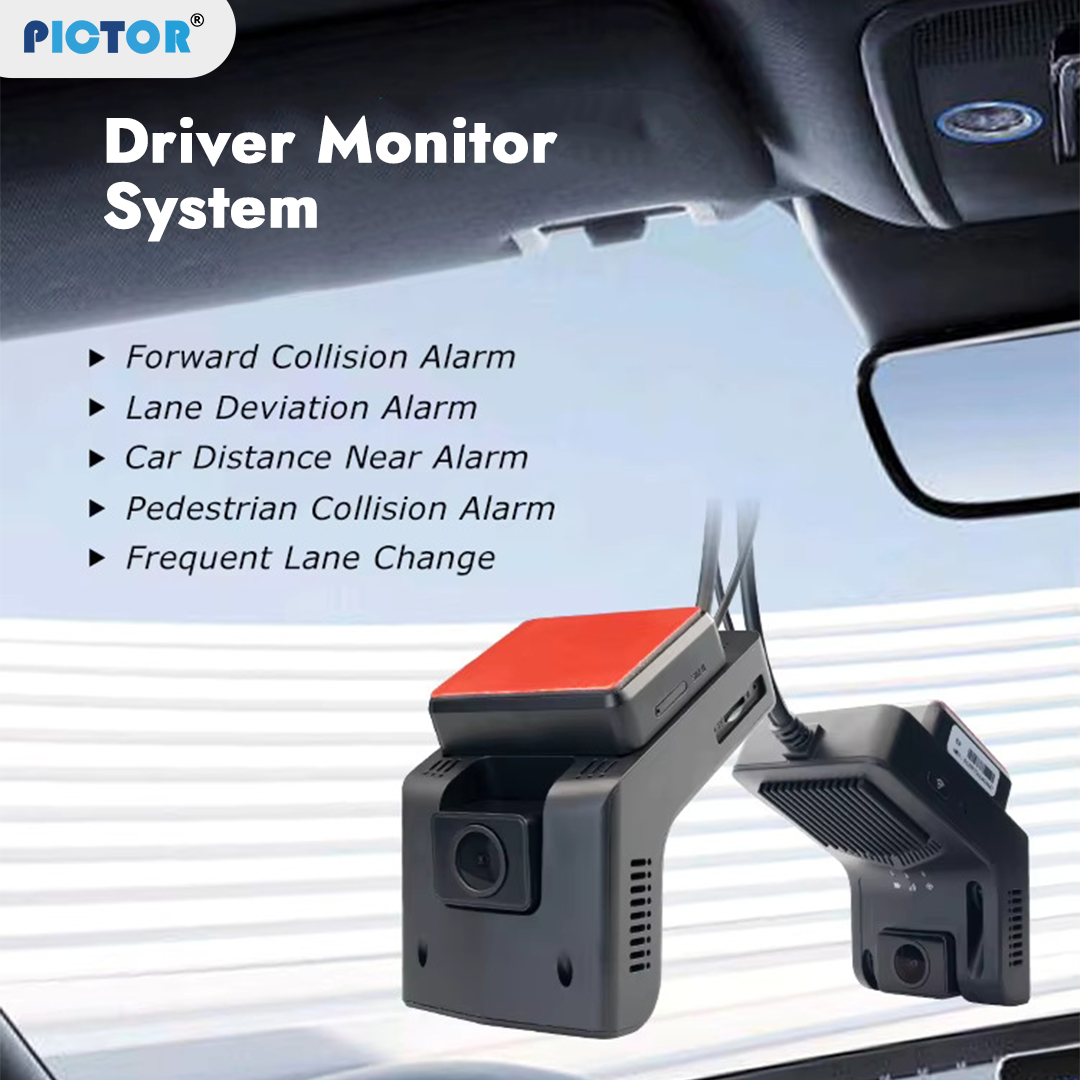

  • Features forward collision alarm, pedestrian collision alarm, lane departure alarm, and car distance too close alarm.
  • Features fatigue driving alarm, distracted driving alarm, smoking alarm, and phone call alarm.
  • When multiple alarms are triggered simultaneously, the system will follow the priority order to issue alerts. A higher-priority alarm can override and interrupt the voice alert of a lower-priority alarm.
Specifications

Technical Specifications

Use this table for compatibility checks, deployment planning, and integration review.

Parameter Value
Operating System Linux
RAM Embedded 1Gb DDR3L
ROM 128Mb SPI NOR Flash
Storage Single TF card slot (supports up to 512GB)
Camera 1 MIPI, 1080P/25fps
Camera 2 MIPI, 1080P/25fps, with light sensor and IR switching
Network & Connectivity FPC antenna for 4G, built-in positioning antenna for GPS/BD, and built-in FPC antenna for WIFI (IEEE802 b/g/n)

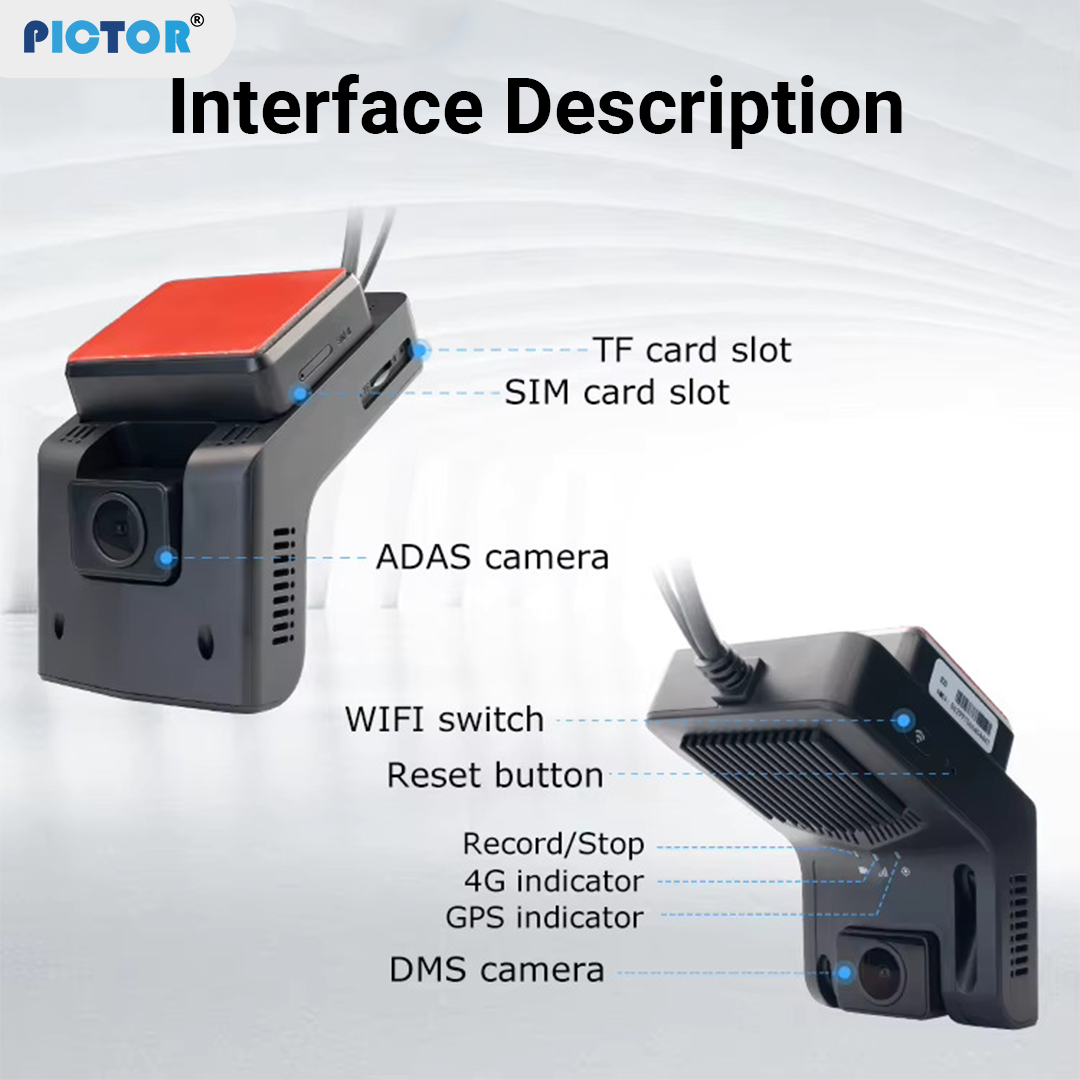

Interface Speaker (1.1W/80), onboard MIC, and 1 channel SOS button
Video System PAL/NTSC
Compression Standard H.264
Image Resolution Ratio 1080p@30fps
Playback Quality 720P/1080P
Audio Compression G.711A, AAC
Power Input DC 9V-36V
Typical Power Consumption 2W (Excluding Peripherals)
Working Temperature -20-70℃
Measure 115x66x70mm
Features

Product Features

Features listed here should be evaluated against your route profile, risk controls, and team workflows.

# Feature
1 Support real-time video, playback, emergency alerts, TTS text messages, and dual IP reporting.
2 Features forward collision alarm, pedestrian collision alarm, lane departure alarm, and car distance too close alarm.
3 Features fatigue driving alarm, distracted driving alarm, smoking alarm, and phone call alarm.
4 When multiple alarms are triggered simultaneously, the system will follow the priority order to issue alerts. A higher-priority alarm can override and interrupt the voice alert of a lower-priority alarm.
Overview

About T98 AI Dual Channel (Model: H20P )

It enhances traffic safety and efficiency in complex driving scenarios while improving user experience. The device features a highly integrated design with built-in positioning antenna, 4G antenna, and dual 1080P cameras for easy installation. The product complies with JT/T 808 and JT/T 1078 standards, meeting the needs of ride-hailing, taxi, and logistics fleets for video monitoring and driving behavior management.

FAQ

Frequently Asked Questions about T98 AI Dual Channel (Model: H20P )

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.
A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.
T98 AI Dual Channel (Model: H20P ) can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.
T98 AI Dual Channel (Model: H20P ) is an AI-powered dashcam that records road footage while providing real-time driver behaviour monitoring and GPS tracking. It captures HD video (1080p/720p), stores footage locally, and syncs critical events to the cloud for fleet managers.
Yes. Our dashcams combine video evidence and tracking in a format that supports safety reviews, incident documentation, and regulated fleet workflows.
T98 AI Dual Channel (Model: H20P ) records in 1080p Full HD or 720p HD depending on the model. Dual-channel versions capture both road-facing and driver-facing footage. Video is stored on an SD card with optional cloud backup for incident evidence.
T98 AI Dual Channel (Model: H20P ) uses AI-based driver monitoring to detect distraction, drowsiness, phone use, and smoking. Alerts are sent in real-time to fleet managers, helping reduce accidents and improve driver safety.
Yes. T98 AI Dual Channel (Model: H20P ) records and stores video locally on an SD card. When 4G connectivity is available, it uploads critical events (collisions, harsh braking, speeding) to the cloud. Offline recording continues seamlessly.
Dashcam pricing varies by features—single/dual channel, 4G connectivity, and AI capabilities. Contact Pictor for a competitive quote. We offer fleet discounts and flexible payment options for businesses.
Video storage depends on SD card capacity (typically 32GB–128GB) and recording settings. Loop recording overwrites old footage. Critical events are uploaded to cloud storage and retained as per your subscription plan.
