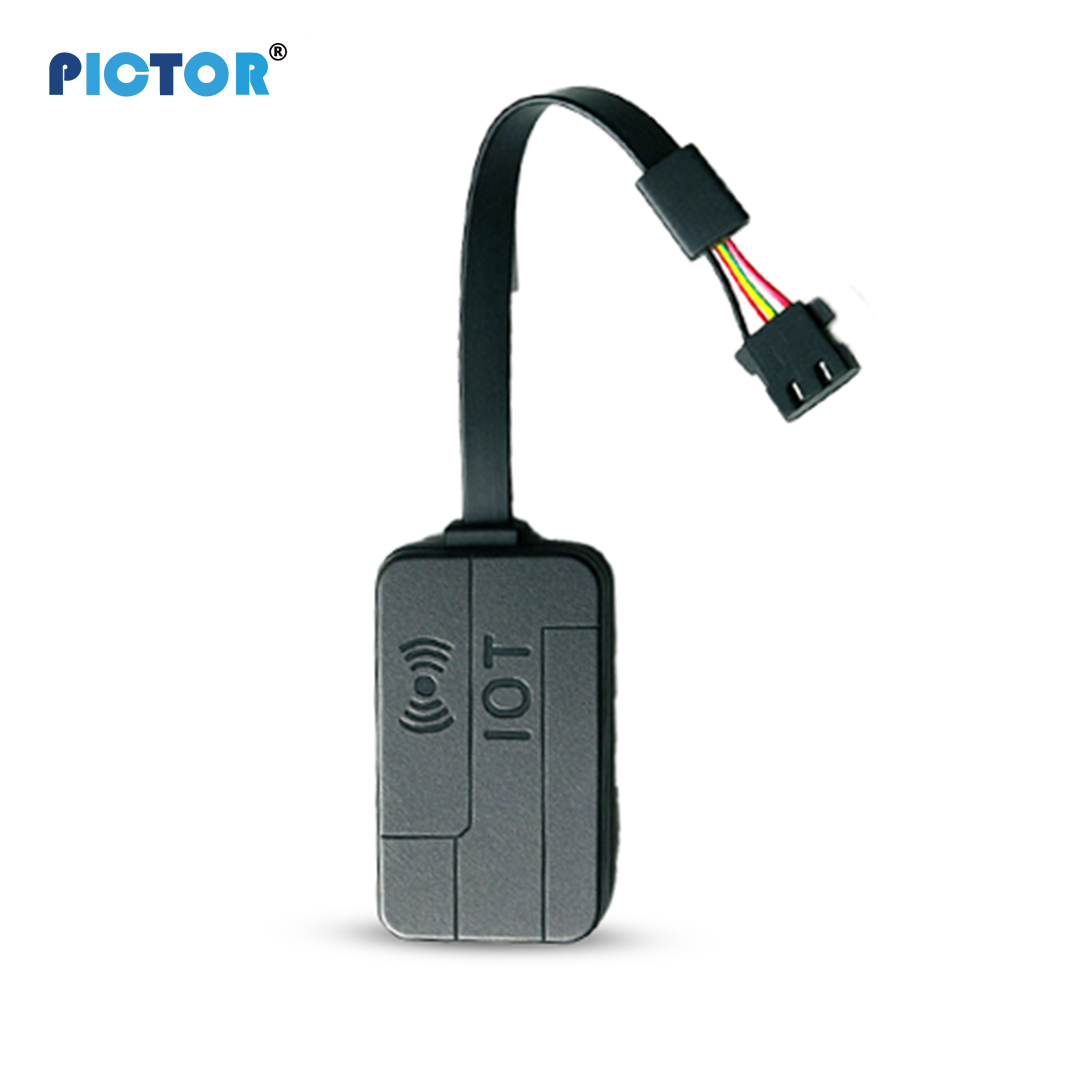

Pictor PS11 N – BMS IoT Device

Pictor PS11 N is an advanced smart BMS IoT device designed for tracking, monitoring, and controlling smart batteries. It enhances battery security and operational visibility with 2G GSM connectivity, multi-constellation GNSS support, and in...

Get a quote Request demo

Sales 1800 123 2632

Need specs or bulk pricing? Contact our team — we usually respond within one business day.

pictor — product

SKU PS11N

Why operators choose us

Proven deployment and support

From specs to installation, we help teams launch faster with fewer surprises.

9,00,000+

Devices sending data via our platform since 2014.

7,000+

Paying customers with live vehicles and assets since 2014.

118+

Indian cities with active customers since 2014.

12+ years

Commercial fleet deployments operating since 2014.

SKU: PS11N EV Tracker

How to evaluate this product

Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.

Compare options See related solutions Explore technology stack

Key Highlights

RTOS-based architecture
Immobilization via command or MOSFET
Battery movement sensing via vibration sensor
DALI and UART communication for BMS
2G GSM connectivity

Request Pricing & Demo

Downloads

protocol-IOT-BMS-PS11 P

Specifications

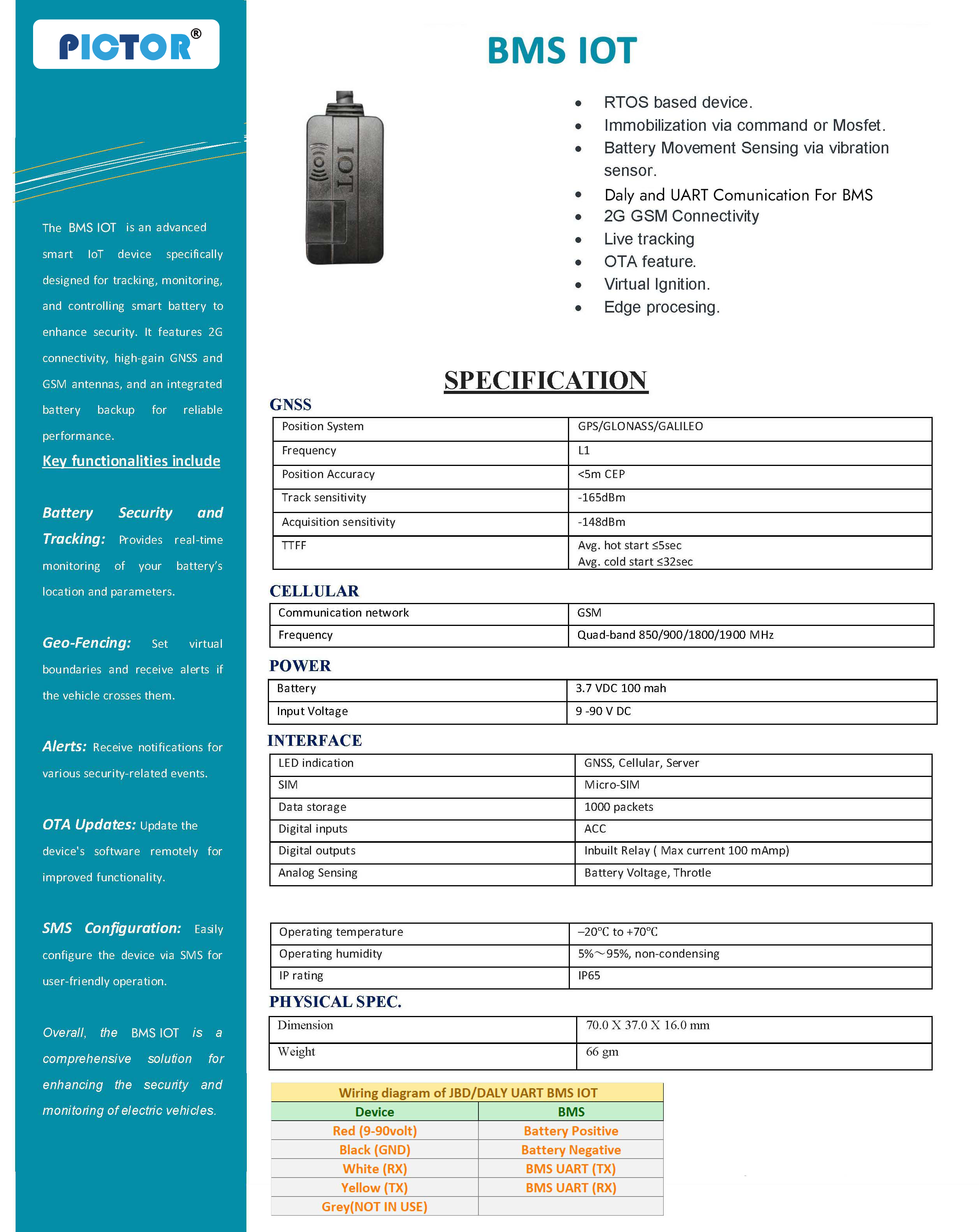

Technical Specifications

Use this table for compatibility checks, deployment planning, and integration review.

Parameter	Value
gnss - positioning_system	GPS, GLONASS, GALILEO
gnss - frequency	L1
gnss - position_accuracy	<5m CEP
gnss - track_sensitivity	-165 dBm
gnss - acquisition_sensitivity	-148 dBm
gnss - ttff - hot_start	<5 sec
gnss - ttff - cold_start	≤32 sec
cellular - network	GSM
cellular - frequency_bands	850 MHz, 900 MHz, 1800 MHz, 1900 MHz
power - internal_battery	3.7V DC, 100 mAh
power - input_voltage	9–90V DC
interface - led_indication	GNSS, Cellular, Server
interface - sim_type	Micro-SIM
interface - data_storage	1000 packets
interface - digital_inputs	ACC
interface - digital_outputs	Inbuilt Relay (Max 100 mA)
interface - analog_sensing	Battery Voltage, Throttle
environmental - operating_temperature	-20°C to +70°C
environmental - operating_humidity	5%–95%, non-condensing
environmental - ip_rating	IP65
physical_specifications - dimensions	70 x 37 x 16 mm
physical_specifications - weight	66 g
wiring_configuration	{"device_wire":"Red (9\u201390V)","bms_connection":"Battery Positive"}, {"device_wire":"Black (GND)","bms_connection":"Battery Negative"}, {"device_wire":"White (RX)","bms_connection":"BMS UART (TX)"}, {"device_wire":"Yellow (TX)","bms_connection":"BMS UART (RX)"}, {"device_wire":"Grey","bms_connection":"Not Used"}

Features

Product Features

Features listed here should be evaluated against your route profile, risk controls, and team workflows.

#	Feature
1	RTOS-based architecture
2	Immobilization via command or MOSFET
3	Battery movement sensing via vibration sensor
4	DALI and UART communication for BMS
5	2G GSM connectivity
6	Live tracking
7	OTA (Over-the-Air) updates
8	Virtual ignition
9	Edge processing
10	Geo-fencing alerts
11	SMS configuration
12	Real-time battery monitoring
13	Integrated battery backup

Overview

About Pictor PS11 N – BMS IoT Device

Pictor PS11 N is a compact, RTOS-based IoT device engineered for Battery Management System (BMS) integration. It enables real-time location tracking, battery parameter monitoring, immobilization control, and remote device management via GSM connectivity. With GPS/GLONASS/GALILEO support, UART/DALI communication, vibration-based movement sensing, OTA firmware updates, and edge processing, it delivers secure and intelligent battery asset management for electric vehicles and industrial applications.

FAQ

Frequently Asked Questions about Pictor PS11 N – BMS IoT Device

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.

A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.

Pictor PS11 N – BMS IoT Device can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.

Pictor PS11 N – BMS IoT Device is a GPS tracking and telematics device designed for electric vehicles (EVs). It monitors location, battery status, charging events, and vehicle health. Ideal for EV fleets, two-wheelers, and three-wheelers in India.

Yes. Pictor PS11 N – BMS IoT Device integrates with EV systems to track battery SOC (state of charge), charging status, and range. Alerts for low battery and charging events help optimise fleet operations and prevent breakdowns.

Yes. We offer EV trackers for two-wheelers, three-wheelers, and four-wheelers. Compact design and efficient power consumption make them ideal for electric scooters and bikes used in delivery and shared mobility.

EV tracker pricing depends on vehicle type and features. Contact Pictor for a quote. We offer solutions for EV OEMs, fleet operators, and shared mobility companies. Volume discounts available.

Compatibility depends on the EV's telematics interface. Contact us with your vehicle make and model. We support major EV brands and custom integrations for fleet and B2B use cases.

Data includes live location, trip history, battery level, charging events, speed, and alerts. Fleet managers get dashboards for EV fleet visibility, utilisation, and maintenance scheduling.

EV trackers typically draw power from the vehicle. For standalone units (e.g., detachable two-wheeler trackers), battery life varies by usage. Contact us for specifications of your chosen model.
