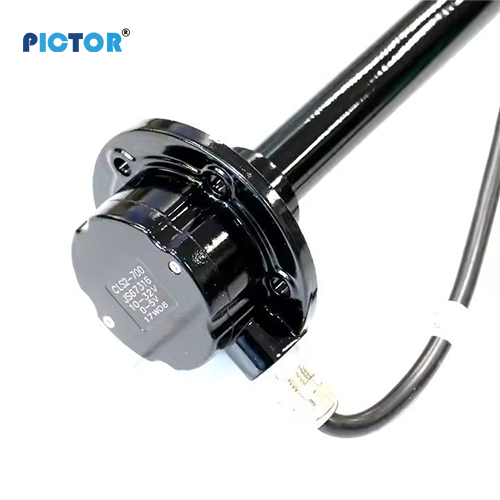

PICTOR CLS2 High Resolution Capacitance Level Sensor

The PICTOR CLS2 is a high-resolution capacitance fuel level sensor designed for continuous and accurate fuel monitoring. It measures fuel levels by detecting capacitance variations as the fuel level changes. Suitable for diesel, gasoline, a...

Get a quote Request demo

Sales 1800 123 2632

Need specs or bulk pricing? Contact our team — we usually respond within one business day.

pictor — product

SKU CLS2

Why operators choose us

Proven deployment and support

From specs to installation, we help teams launch faster with fewer surprises.

9,00,000+

Devices sending data via our platform since 2014.

7,000+

Paying customers with live vehicles and assets since 2014.

118+

Indian cities with active customers since 2014.

12+ years

Commercial fleet deployments operating since 2014.

SKU: CLS2 Fuel Sensors

How to evaluate this product

Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.

Compare options See related solutions Explore technology stack

Key Highlights

High-resolution measurement with ≤1mm accuracy
Continuous real-time fuel level monitoring
Adjustable probe length for different tank sizes
Multiple output interfaces (Analog and Digital)
External calibration support

Request Pricing & Demo

Downloads

Fuel Level Sensor CLS2

Specifications

Technical Specifications

Use this table for compatibility checks, deployment planning, and integration review.

Parameter	Value
detection_type	Capacitance-based fuel level detection
fuel_compatibility	Diesel, Gasoline, Kerosene
supply_voltage	10–32V DC, 5V
output_signal	0–5V, RS232, RS485
resolution	≤ 1mm
operating_temperature	-40°C to +85°C
protection_rating	IP65
mounting_type	SAE 5-bolt flange mount
wire_length_mm	600
customization	Probe length can be customized according to tank depth
model_variants	{"part_number":"JS67315","model":"CLS2-600","length_mm":600}, {"part_number":"JS67316","model":"CLS2-700","length_mm":700}, {"part_number":"JS67319","model":"CLS2-1000","length_mm":1000}
resolution_mm	≤1
voltage_range	10–32V DC or 5V
output_options	0–5V, RS232, RS485
protection_class	IP65
operating_temperature_celsius - min	-40
operating_temperature_celsius - max	85
mounting_standard	SAE 5-hole flange
accessories_included	5 × M5 screws, 2mm thick NBR gasket
optional_accessories	2mm thick FPM gasket (recommended for gas tank installation)
calibration	External calibrator supported

Features

Product Features

Features listed here should be evaluated against your route profile, risk controls, and team workflows.

#	Feature
1	High-resolution measurement with ≤1mm accuracy
2	Continuous real-time fuel level monitoring
3	Adjustable probe length for different tank sizes
4	Multiple output interfaces (Analog and Digital)
5	External calibration support
6	IP65-rated industrial protection
7	Easy installation with SAE 5-bolt flange
8	Suitable for integration with telematics systems

Overview

About PICTOR CLS2 High Resolution Capacitance Level Sensor

The PICTOR CLS2 capacitance level sensor continuously detects fuel levels using advanced capacitance measurement technology. It can be shortened to fit different tank depths and supports external calibration for precise configuration. Designed with an SAE 5-bolt flange mount and IP65 protection rating, it ensures durability and reliability in harsh environments. The sensor supports 0–5V, RS232, and RS485 outputs for seamless integration with GPS trackers and monitoring systems.

FAQ

Frequently Asked Questions about PICTOR CLS2 High Resolution Capacitance Level Sensor

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.

A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.

PICTOR CLS2 High Resolution Capacitance Level Sensor can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.

PICTOR CLS2 High Resolution Capacitance Level Sensor is a fuel level sensor that monitors fuel quantity in your vehicle's tank. It helps detect fuel theft, tampering, and unauthorised refuelling. Data is sent to our cloud platform for real-time alerts and reports.

PICTOR CLS2 High Resolution Capacitance Level Sensor measures fuel level continuously. Sudden drops (without refuelling records) trigger alerts. Fleet managers get instant notifications. Historical reports show fuel usage patterns and identify anomalies.

The sensor is installed inside the fuel tank. Installation is done by our certified technicians who calibrate it for accurate readings. We serve 118+ cities with professional installation.

We offer fuel sensors for various tank types—cars, trucks, buses, and generators. Contact us with your vehicle make and tank specifications. We'll recommend the right sensor and provide compatibility confirmation.

Our fuel sensors typically achieve ±2–5% accuracy depending on tank shape and calibration. We calibrate during installation for optimal accuracy. Regular maintenance ensures consistent performance.

Cost includes hardware (sensor), installation, and software subscription. Pricing varies by vehicle type and fleet size. Contact Pictor for a quote. ROI is often quick through fuel theft prevention and better efficiency.

Yes. PICTOR CLS2 High Resolution Capacitance Level Sensor integrates with our GPS trackers for complete fleet visibility—location, fuel level, and fuel events. Combined dashboards show fuel consumption by route, driver, and vehicle.
