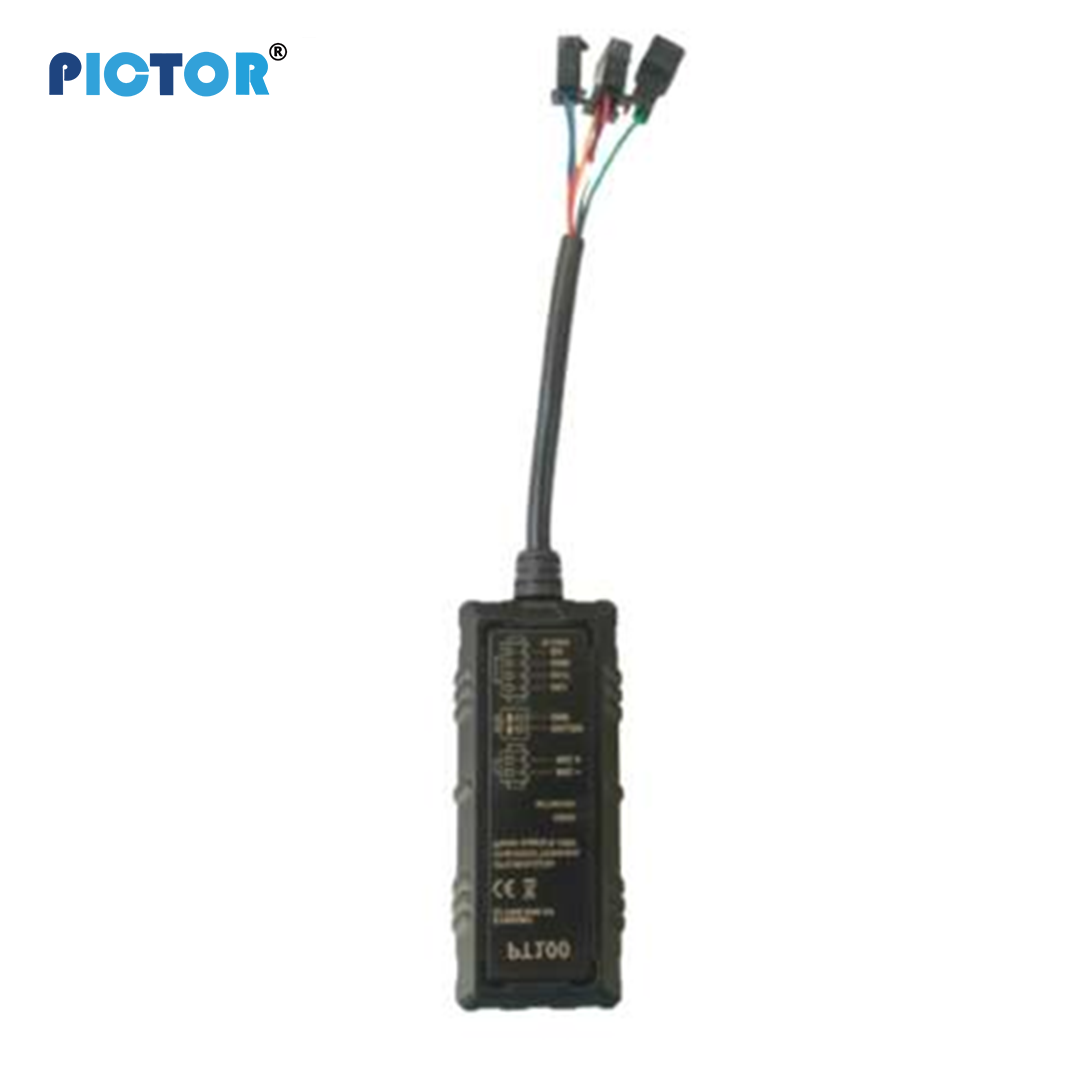

PT100 4G GPS Vehicle Tracker
PT100 is a compact 4G LTE-based vehicle GPS tracker with GPS+BDS dual-mode positioning, designed for fleet monitoring, anti-theft protection, and vehicle supervision applications.
Need specs or bulk pricing? Contact our team — we usually respond within one business day.
Why operators choose us
Proven deployment and support
From specs to installation, we help teams launch faster with fewer surprises.
PT100 is a compact 4G LTE-based vehicle GPS tracker with GPS+BDS dual-mode positioning, designed for fleet monitoring, anti-theft protection, and vehicle supervision applications.
How to evaluate this product
Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.
Key Highlights
- Real-time / Time Interval / Distance Based / SMS Tracking / Platform Tracking
- Harsh Acceleration / Harsh Braking / Harsh Turning / Fatigue Driving / Idling Detection
- SOS Alarm / Speeding Alarm / Geo-Fence Alarm / GPS Signal Loss Alarm / Impact Alarm / Towing Alarm / Low Battery Alarm / External Power Cut Alarm / Fuel Theft Alarm / Low Fuel Alarm
- Supports Capacitive & Ultrasonic Fuel Sensors (Analog or RS232)
- Remote Fuel/Electricity Cut-Off via Output
Technical Specifications
Use this table for compatibility checks, deployment planning, and integration review.
| Parameter | Value |
|---|---|
| Model | PT100 |
| Network | 4G LTE Cat-1 / Cat-M / Cat-NB (variant dependent) |
| Positioning | GPS + BDS Dual Mode |
| Positioning Accuracy | 2.5 meters |
| GPS Sensitivity | -165dB |
| Dimensions | 80 × 34 × 15 mm |
| Weight | Approx. 48g |
| Input Voltage | DC 9–100V |
| Waterproof Rating | IP66 |
| Battery | Built-in 55mAh |
| Battery Backup | Up to 30 minutes |
| Flash Memory | 16Mb |
| Operating Temperature | -20°C to 80°C |
| Standby Power Consumption | 51mA/h |
| MCU | Cortex-M4 AT32F415CBT7 |
| SIM Type | Nano SIM |
| Antenna | Built-in GSM FPC + Ceramic GPS Antenna (25×25×4mm) |
| Sensor | 3D Accelerometer |
| LED Indicators | Blue (GPS) + Green (Network) |
| LTE Bands | Regional variants available (CN / EU / NA / SA / Global) |
| GSM Bands | 850/900/1800/1900 MHz (variant dependent) |
| Analog Input Range | 0–6.6V (AD1/AD2 configurable) |
| Digital Inputs | 2 configurable (High/Low trigger) |
| Output Type | Open-drain output, >500mA, 100V withstand |
| Serial Interface | RS232/TTL (customizable) |
| Fuel Sensor Compatibility | Ultrasonic (100cm/250cm) & Capacitive Sensors |
| Speed Limiter Support | Configurable via SMS or Parameter Editor |
Product Features
Features listed here should be evaluated against your route profile, risk controls, and team workflows.
| # | Feature |
|---|---|
| 1 | Real-time / Time Interval / Distance Based / SMS Tracking / Platform Tracking |
| 2 | Harsh Acceleration / Harsh Braking / Harsh Turning / Fatigue Driving / Idling Detection |
| 3 | SOS Alarm / Speeding Alarm / Geo-Fence Alarm / GPS Signal Loss Alarm / Impact Alarm / Towing Alarm / Low Battery Alarm / External Power Cut Alarm / Fuel Theft Alarm / Low Fuel Alarm |
| 4 | Supports Capacitive & Ultrasonic Fuel Sensors (Analog or RS232) |
| 5 | Remote Fuel/Electricity Cut-Off via Output |
| 6 | Offline Data Storage with Auto Resend |
| 7 | Dual Server Support |
| 8 | FOTA (Firmware Over-the-Air) |
| 9 | 2 Digital Inputs (Configurable as Analog), 1 Output, Micro USB, Optional Microphone |
About PT100 4G GPS Vehicle Tracker
PT100 is a high-precision 4G vehicle tracking device equipped with GPS+BDS dual-mode positioning technology, offering up to 2.5 meters accuracy. It supports real-time tracking, geo-fencing, driving behavior monitoring, and remote fuel/power cut-off. With built-in 16Mb flash memory, the device stores location data when out of network coverage and automatically retransmits once connectivity is restored. Its ultra-mini design allows easy and hidden installation. With IP66 waterproof protection and wide 9–100V power input, PT100 is suitable for cars, trucks, commercial fleets, and shared mobility vehicles.
Frequently Asked Questions about PT100 4G GPS Vehicle Tracker
Ready to evaluate PT100 4G GPS Vehicle Tracker for your fleet?
Get a scoped quote, schedule a demo, and validate rollout fit, installation assumptions, and support model.
