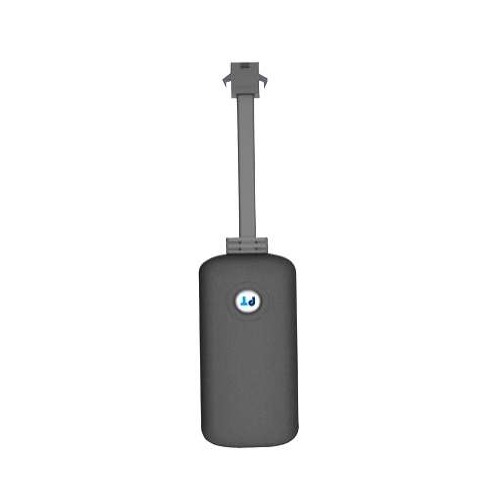

PT19H Smart GPS Tracker for Bikes & Cars
PT19H is a waterproof GPS vehicle tracker equipped with a high-sensitivity GPS chip, designed for real-time tracking, remote fuel/electricity cut-off, and vehicle security across bikes and cars.
Need specs or bulk pricing? Contact our team — we usually respond within one business day.
Why operators choose us
Proven deployment and support
From specs to installation, we help teams launch faster with fewer surprises.
PT19H is a waterproof GPS vehicle tracker equipped with a high-sensitivity GPS chip, designed for real-time tracking, remote fuel/electricity cut-off, and vehicle security across bikes and cars.
How to evaluate this product
Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.
Key Highlights
- Track vehicle live location and review travel history for days/months.
- Get alerts for vehicle power ON/OFF status.
- Operates within 9V–90V range.
- Access vehicle mileage information.
- Remotely disable fuel/electricity during emergency or theft situations.
Downloads
Technical Specifications
Use this table for compatibility checks, deployment planning, and integration review.
| Parameter | Value |
|---|---|
| Model | PT19H |
| GPS Chip | MTK6261D |
| Dimensions | 74(L) × 35(W) × 13(H) mm |
| Network | GSM |
| GSM Frequency | 850/900/1800/1900 MHz |
| GPRS | Class12, TCP/IP built-in GSM module |
| Channels | 20 |
| Acquisition Sensitivity | -144 dBm |
| Tracking Sensitivity | -160 dBm |
| Voltage Input | 9V–90V |
| Working Temperature | -20°C to 60°C (can work 4 hours under 80°C) |
| Locating Time | Hot <2 sec (Open Sky) | Warm <15 sec | Cold <38 sec (Open Sky) |
| GPS Antenna | Built-in 18mm × 18mm × 4mm ceramic chip antenna |
| GSM Antenna | Spring antenna |
| Built-in Battery | Yes |
| Battery Capacity | 55mAh |
| Vibration Sensor | Yes |
| ACC Detection | Yes |
| Oil/Electricity Cut-Off | Yes |
| SOS Button | No |
| Microphone | No |
| Power Button | Yes |
| Flash Memory | Up to 4MB |
| Ingress Protection | IP67 (Waterproof & Dustproof) |
| Product Lifespan | 2 Years |
| Communication Protocol | TCP/IP over GSM |
| SIM Requirement | 2G SIM (Prepaid or Postpaid) |
| Compatible Networks (India) | Airtel, Vodafone and other leading telecom providers |
| Indicator Lights - Power Status | Red |
| Indicator Lights - GPS | Blue |
| Indicator Lights - GSM | Green |
| Data Uploading Port | No |
| Function Port | No |
Product Features
Features listed here should be evaluated against your route profile, risk controls, and team workflows.
| # | Feature |
|---|---|
| 1 | Track vehicle live location and review travel history for days/months. |
| 2 | Get alerts for vehicle power ON/OFF status. |
| 3 | Operates within 9V–90V range. |
| 4 | Access vehicle mileage information. |
| 5 | Remotely disable fuel/electricity during emergency or theft situations. |
| 6 | Instant alert if GPS device wiring is tampered. |
| 7 | Notification on unusual vehicle movement. |
| 8 | Stores tracking data up to 4MB. |
| 9 | Water and dust resistant for harsh conditions. |
| 10 | Real-time tracking, playback, alarms, and vehicle management via mobile app. |
About PT19H Smart GPS Tracker for Bikes & Cars
PT19H is a smart and secure GPS tracking device optimized for automobiles including cars and bikes. It operates on a wide 9V–90V input range and features real-time tracking with history playback. The device supports remote engine immobilization, vibration alerts, wire cut alerts, and mileage monitoring. Designed with IP67 water and dust resistance, PT19H ensures reliable performance in varied environmental conditions. It is lightweight, compact, and supported by a mobile app for live monitoring and asset management.
Frequently Asked Questions about PT19H Smart GPS Tracker for Bikes & Cars
Ready to evaluate PT19H Smart GPS Tracker for Bikes & Cars for your fleet?
Get a scoped quote, schedule a demo, and validate rollout fit, installation assumptions, and support model.
