PS26 Wheel Lock IoT EV Tracker for Electric Fleet Vehicles
Pictor PS26 is an advanced IoT-enabled Vehicle Tracking System (VTS) designed specifically for 2-wheeler electric vehicles. It integrates real-time tracking, ignition control, wheel sensing, and wheel lock functionality with MOSFET-based ignition con...
About PS26 Wheel Lock IoT EV Tracker for Electric Fleet Vehicles

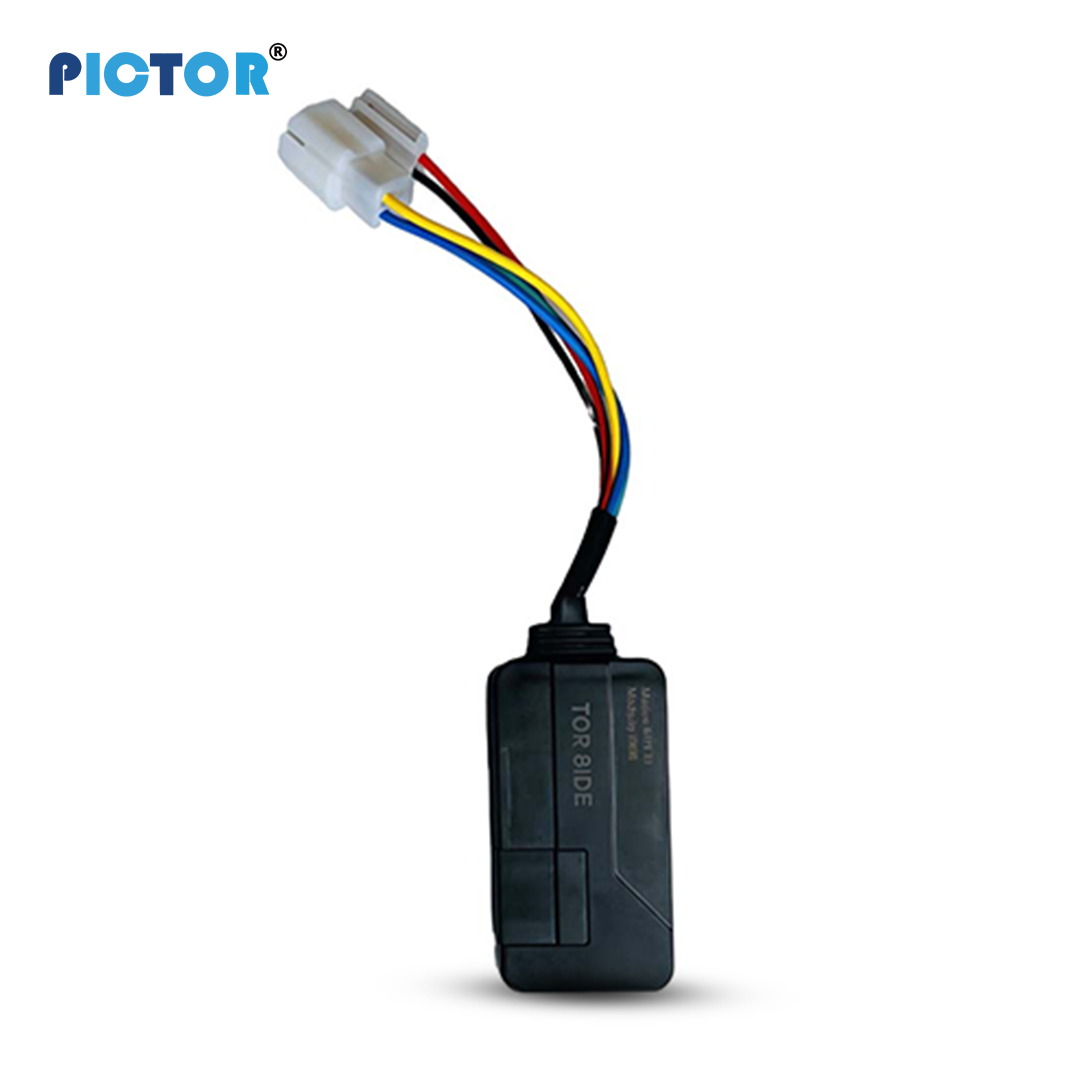

The Pictor PS26 is a compact, high-performance EV tracking and immobilization solution engineered for electric two-wheelers. It enables real-time monitoring, remote ignition control, wheel locking, and geofencing alerts. Equipped with built-in GNSS and GSM antennas, 2G connectivity, Bluetooth pairing, and integrated battery backup, the device ensures continuous tracking and enhanced vehicle security. Suitable for fleet operators, insurance telematics, EV rentals, and delivery services.
- 2G GSM connectivity
- High-gain internal GNSS and GSM antennas
- Integrated battery backup
- Ignition control functionality
- Wheel sensing capability
Key highlights
Product features
Evaluate these capabilities against your route profile, risk controls, and team workflows.
- 2G GSM connectivity
- High-gain internal GNSS and GSM antennas
- Integrated battery backup
- Ignition control functionality
- Wheel sensing capability
- Wheel lock control via mobile app
- MOSFET-based EV ignition control
- Bluetooth pairing (up to 10 meters)
- FOTA (Firmware Over-The-Air) updates
- Compact design for 2-wheeler EV installation
- Geofencing alerts
- Real-time tracking
Technical specifications
Use this table for compatibility checks, deployment planning, and integration review.
| model | PS26 |
|---|---|
| device_type | IoT-based EV Vehicle Tracking System |
| application | 2-Wheeler Electric Vehicles |
| network_type | 2G GSM |
| antenna_type | Internal GNSS and GSM |
| battery_backup | Integrated |
| pcb_design | 4-Layer |
| installation_type | Wired |
| connectivity | 2G (GSM) |
| antennas | Internal High-Gain GNSS & GSM |
| power_supply_range | 9V DC to 90V DC |
| bluetooth | Yes |
| bluetooth_range | Up to 10 meters |
| inputs | Ignition Control, Wheel Sensing, Wheel Lock |
| output | Immobilization Control |
| operating_temperature | -20°C to +70°C |
Key features
- 2G GSM connectivity
- High-gain internal GNSS and GSM antennas
- Integrated battery backup
- Ignition control functionality
- Wheel sensing capability
- Wheel lock control via mobile app
- MOSFET-based EV ignition control
- Bluetooth pairing (up to 10 meters)
- FOTA (Firmware Over-The-Air) updates
- Compact design for 2-wheeler EV installation
- Geofencing alerts
- Real-time tracking
