AI DASHCAM SKU T9811

T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet

Q: How do I choose the right AI Dashcam model for my fleet?

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.

Q: What does implementation include for T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet?

A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.

Q: What business outcomes can T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet improve?

T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.

Q: What is T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet and how does it work?

T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet is an AI-powered dashcam that records road footage while providing real-time driver behaviour monitoring and GPS tracking. It captures HD video (1080p/720p), stores footage locally, and syncs critical events to the cloud for fleet managers.

Q: Is T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet suitable for compliance-focused deployments?

Yes. Our dashcams combine video evidence and tracking in a format that supports safety reviews, incident documentation, and regulated fleet workflows.

Q: What video quality does T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet record in?

T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet records in 1080p Full HD or 720p HD depending on the model. Dual-channel versions capture both road-facing and driver-facing footage. Video is stored on an SD card with optional cloud backup for incident evidence.

Q: How does T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet detect driver distraction?

T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet uses AI-based driver monitoring to detect distraction, drowsiness, phone use, and smoking. Alerts are sent in real-time to fleet managers, helping reduce accidents and improve driver safety.

Q: Can T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet work without internet?

Yes. T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet records and stores video locally on an SD card. When 4G connectivity is available, it uploads critical events (collisions, harsh braking, speeding) to the cloud. Offline recording continues seamlessly.

Q: What is the cost of T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet in India?

Dashcam pricing varies by features—single/dual channel, 4G connectivity, and AI capabilities. Contact Pictor for a competitive quote. We offer fleet discounts and flexible payment options for businesses.

Q: How long does T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet store video footage?

Video storage depends on SD card capacity (typically 32GB–128GB) and recording settings. Loop recording overwrites old footage. Critical events are uploaded to cloud storage and retained as per your subscription plan.

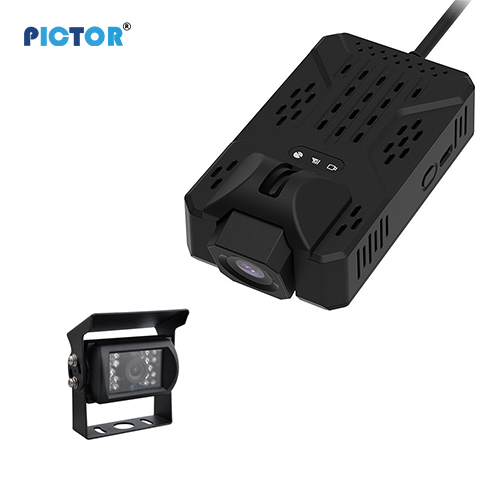

The Pictor T98 1+1 is a 1+1 (2CH) 4G Dash Cam equipped with a TF card slot supporting up to 512 GB. It features optional Lora support and can connect to an external AHD camera.

Real-time monitoring

Fleet safety

Cloud dashboard

GPS tracking

Request demo Download datasheet

9,00,000+

Devices sending data via our platform since 2014

7,000+

Paying customers with live vehicles and assets since 2014

118+

Indian cities with active customers since 2014

12+

Years in industry

Overview

About T98 1+1 AI Dual Channel Dashcam ADAS DMS for Fleet

The Pictor T98 1+1 is a 1+1 (2CH) 4G Dash Cam equipped with a TF card slot supporting up to 512 GB. It features optional Lora support and can connect to an external AHD camera.

2CH 1080P resolution HD loop video
Supported
Supports BSJ LoRa sensor
Mic (G711_A)
TF card slot up to 512 GB

Key highlights

2CH 1080P resolution HD loop video

Supported

Supports BSJ LoRa sensor

Mic (G711_A)

TF card slot up to 512 GB

Features

Product features

Evaluate these capabilities against your route profile, risk controls, and team workflows.

2CH 1080P resolution HD loop video
Supported
Supports BSJ LoRa sensor
Mic (G711_A)
TF card slot up to 512 GB

Specifications

Technical specifications

Use this table for compatibility checks, deployment planning, and integration review.

resolution	2.0MP
pixel_size	1920 x 1080p
lens	3.6mm (AI Camera) / 2.9mm (Standard)
colors	Full colour
operating_system	Linux
network_bands	LTE FDD/LTE-TDD: B1, B2, B3, B5, B7, B8, B20, B28, B4/66, B38, B41
field_of_view	90D 62H 45V / 144.9D 120.3H 63.6V (Standard)
pan_tilt	70°
white_balance	Automatic
operating_power	DC 9-36V
power_consumption - online_sleep	18mA @ 12V
power_consumption - normal	174mA @ 12V
power_consumption - full_load	194mA @ 12V
dimensions	107mm x 60mm x 37mm
weight	About 145g
connector_type	BMW head 8-pin female
environmental_limits - working_temperature	-20°C to 70°C
environmental_limits - storage_temperature	-40°C to 85°C
environmental_limits - humidity	<95%
regulatory_compliance	CE, FCC
wiring_pinout - red	V+
wiring_pinout - black	GND
wiring_pinout - orange	ACC
wiring_pinout - yellow	Fuel-
wiring_pinout - white	SOS
wiring_pinout - purple	Right
wiring_pinout - gray	High/Left
wiring_pinout - brown	ADC

Features

Key features

2CH 1080P resolution HD loop video
Supported
Supports BSJ LoRa sensor
Mic (G711_A)
TF card slot up to 512 GB

Resources

Downloads & documentation

T98 1+1 AI JT808-2013 The terminal communication protocol and data format of the road transport vehicle satellit PDF download

T98 1+1 AI alarm process protocol PDF download

T98 1+1 Dashcam PDF download

T98 1+1 English Video Protocol PDF download
