AI DASHCAM
SKU T9812

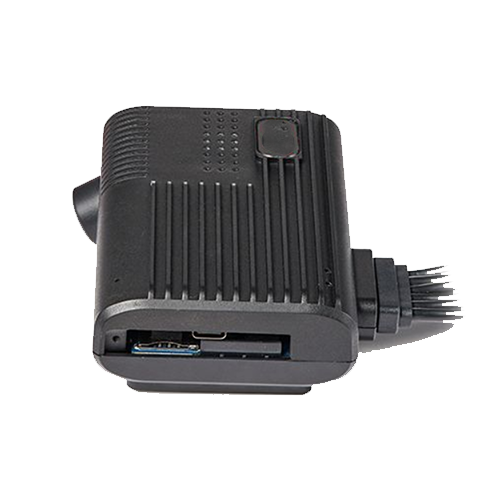

T98 1+2 AI Dashcam ADAS DMS for Fleet Vehicles
This product integrates positioning, 4G communication, video storage and transmission, and is a dedicated driving recorder for online car-hailing. It is widely used in taxis, online car-hailing, light truck and other nationally regulated industries.
Real-time monitoring
Fleet safety
Cloud dashboard
GPS tracking
Overview
About T98 1+2 AI Dashcam ADAS DMS for Fleet Vehicles
It supports one channel of 1080P and three channels of 720P video recording storage, and it equipped with ADAS and DMS active security algorithms. This can realize remote real-time preview video and remote Historical video playback, and supports seamless integration with customer's platforms.
- Real-time location monitoring: Periodically reports location information such as longitude, latitude, and speed based on the preset return interval.
- 1 channel 1080P HD video and 3 channels 720P video real-time storage and upload.
- Support 2 TF card Loop recording.
- ADAS: give voice warning for dangerous driving behaviors such as lane departure, close proximity and collision, and upload it to the platform for evidence collection.
- DMS: can effectively warn drivers of dangerous driving behaviors, such as fatigue, smoking, phone call, distraction, etc. by voice warning and uploading to the platform for evidence collection.
Key highlights
Real-time location monitoring: Periodically repo...
1 channel 1080P HD video and 3 channels 720P vid...
Support 2 TF card Loop recording.
ADAS: give voice warning for dangerous driving b...
DMS: can effectively warn drivers of dangerous d...
Features
Product features
Evaluate these capabilities against your route profile, risk controls, and team workflows.
- Real-time location monitoring: Periodically reports location information such as longitude, latitude, and speed based on the preset return interval.
- 1 channel 1080P HD video and 3 channels 720P video real-time storage and upload.
- Support 2 TF card Loop recording.
- ADAS: give voice warning for dangerous driving behaviors such as lane departure, close proximity and collision, and upload it to the platform for evidence collection.
- DMS: can effectively warn drivers of dangerous driving behaviors, such as fatigue, smoking, phone call, distraction, etc. by voice warning and uploading to the platform for evidence collection.
- Support remote intercom initiated by the monitoring platform.
- Real-time tracking: Upload positioning information such as latitude and longitude according to the set time interval.
- Vehicle power off alarm / Low voltage alarm: Turn on the backup battery, when the device cannot detect the vehicle voltage, it will report a power off alarm to server; when the device detects that the vehicle voltage is lower than 10V, it reports a low-voltage alarm to server.
- Blind area data upload: When the terminal is located and not online, the location data will be stored in the device, up to 10,000 pieces, and uploaded automatically when the signal is normal.
Specifications
Technical specifications
Use this table for compatibility checks, deployment planning, and integration review.
| operatingSystem | Linux |
|---|---|
| hardware | MCU: 4 Cores A53; ROM: 8GB; RAM: 1GB |
| videoInput | 1-channel AHD 1080P (1290*1080); Second, third, fourth channel AHD 720P (1280*720) |
| audio | Input: 2-channel audio, PCM format; Output: 1-channel audio, PCM format, inner speaker |
| multimediaFormat | Video uploading format: MP4; Video encode: H.264; Audio encode: G711A |
| networkSupport | Built-in WIFI, 2.4GHz; LTE FDD: B1/B3/B5/B8; LTE TDD: B34/B38/B39/B40/B41; WCDMA: B1/B5/B8; GSM: 900/1800MHZ |
| storage | Support two TF card (single card max 256G) |
| powerRequirements | Working voltage: DC 10V - 36V; Working electricity: 420mA@12V (Not load), 240mA@24V (Not load); Sleeping power consumption: 6mA@12V |
| backupBattery | 3.7V 2000mAh |
| environmentalRange | Working temperature: -20°C ~ +60°C; Storage temperature: -30°C ~ +80°C |
| dimensions | L 110mm * W 70mm * H 28mm |
Features
Key features
- Real-time location monitoring: Periodically reports location information such as longitude, latitude, and speed based on the preset return interval.
- 1 channel 1080P HD video and 3 channels 720P video real-time storage and upload.
- Support 2 TF card Loop recording.
- ADAS: give voice warning for dangerous driving behaviors such as lane departure, close proximity and collision, and upload it to the platform for evidence collection.
- DMS: can effectively warn drivers of dangerous driving behaviors, such as fatigue, smoking, phone call, distraction, etc. by voice warning and uploading to the platform for evidence collection.
- Support remote intercom initiated by the monitoring platform.
- Real-time tracking: Upload positioning information such as latitude and longitude according to the set time interval.
- Vehicle power off alarm / Low voltage alarm: Turn on the backup battery, when the device cannot detect the vehicle voltage, it will report a power off alarm to server; when the device detects that the vehicle voltage is lower than 10V, it reports a low-voltage alarm to server.
- Blind area data upload: When the terminal is located and not online, the location data will be stored in the device, up to 10,000 pieces, and uploaded automatically when the signal is normal.
Resources
Downloads & documentation
FAQ
Frequently asked questions
Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.
A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.
T98 1+2 AI Dashcam ADAS DMS for Fleet Vehicles can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.
T98 1+2 AI Dashcam ADAS DMS for Fleet Vehicles is an AI-powered dashcam that records road footage while providing real-time driver behaviour monitoring and GPS tracking. It captures HD video (1080p/720p), stores footage locally, and syncs critical events to the cloud for fleet managers.
Yes. Our dashcams combine video evidence and tracking in a format that supports safety reviews, incident documentation, and regulated fleet workflows.
T98 1+2 AI Dashcam ADAS DMS for Fleet Vehicles records in 1080p Full HD or 720p HD depending on the model. Dual-channel versions capture both road-facing and driver-facing footage. Video is stored on an SD card with optional cloud backup for incident evidence.
T98 1+2 AI Dashcam ADAS DMS for Fleet Vehicles uses AI-based driver monitoring to detect distraction, drowsiness, phone use, and smoking. Alerts are sent in real-time to fleet managers, helping reduce accidents and improve driver safety.
Yes. T98 1+2 AI Dashcam ADAS DMS for Fleet Vehicles records and stores video locally on an SD card. When 4G connectivity is available, it uploads critical events (collisions, harsh braking, speeding) to the cloud. Offline recording continues seamlessly.
Dashcam pricing varies by features—single/dual channel, 4G connectivity, and AI capabilities. Contact Pictor for a competitive quote. We offer fleet discounts and flexible payment options for businesses.
Video storage depends on SD card capacity (typically 32GB–128GB) and recording settings. Loop recording overwrites old footage. Critical events are uploaded to cloud storage and retained as per your subscription plan.
