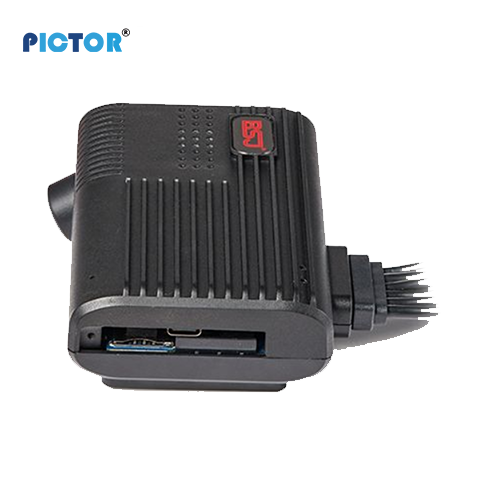

T98 1+3 AI Dashcam 4 Channel ADAS DMS 4G Fleet Tracking
The PICTOR T98 1+3 AI Dashcam is a 4G-enabled smart video terminal designed for fleet surveillance and intelligent driver monitoring. It integrates HD multi-channel recording, GPS positioning, LTE connectivity, WiFi, and AI-based ADAS/DMS safety algo...
About T98 1+3 AI Dashcam 4 Channel ADAS DMS 4G Fleet Tracking
The T98 1+3 AI Dashcam supports 1 channel 1080P and 3 channels 720P AHD recording with real-time upload and remote playback. Powered by a quad-core A53 processor and Linux OS, it enables intelligent fleet monitoring through ADAS (lane departure and collision warning) and DMS (fatigue, distraction, smoking, phone usage detection). The device supports dual TF cards up to 256GB each, LTE connectivity, built-in WiFi, OTA upgrades, remote intercom, blind area data storage, and comprehensive alarm reporting for commercial transport applications.
- 1 Channel 1080P + 3 Channel 720P HD Recording
- Real-time GPS location tracking (longitude, latitude, speed)
- ADAS: Lane departure and collision warning
- DMS: Fatigue, distraction, smoking, phone usage detection
- Voice warning alerts
Key highlights
Product features
Evaluate these capabilities against your route profile, risk controls, and team workflows.
- 1 Channel 1080P + 3 Channel 720P HD Recording
- Real-time GPS location tracking (longitude, latitude, speed)
- ADAS: Lane departure and collision warning
- DMS: Fatigue, distraction, smoking, phone usage detection
- Voice warning alerts
- Real-time video upload and historical playback
- Overspeed alarm
- Low voltage alarm
- Vehicle power-off alarm
- Blind area data storage and upload
- ACC ON/OFF status tracking
- Built-in 2.4GHz WiFi
- Dual TF card support (up to 256GB each)
Technical specifications
Use this table for compatibility checks, deployment planning, and integration review.
| operating_system | Linux |
|---|---|
| processor | Quad-Core A53 |
| ram | 1GB |
| rom | 8GB |
| video_input | 1×1080P AHD + 3×720P AHD |
| video_format | MP4 |
| video_codec | H.264 |
| audio_codec | G711A |
| audio_input | 2-channel PCM |
| audio_output | 1-channel PCM (internal speaker) |
| storage | Dual TF Card (Up to 256GB each) |
| wifi | Built-in 2.4GHz |
| network_support | 2G / 3G / 4G LTE |
| backup_battery | 3.7V 2000mAh |
| working_voltage | DC 10V–36V |
| power_consumption - 12V_no_load | 420mA |
| power_consumption - 24V_no_load | 240mA |
| power_consumption - sleep_current_12V | 6mA |
| operating_temperature | -20°C to +60°C |
| storage_temperature | -30°C to +80°C |
| dimensions | 110mm × 70mm × 28mm |
| code_rate - main_stream | 1792 Kbps |
| code_rate - sub_stream | 512 Kbps |
| lte_bands - lte_tdd | B34, B38, B39, B40, B41 |
| lte_bands - lte_fdd | B1, B3, B5, B8 |
| lte_bands - wcdma | B1, B5, B8 |
| lte_bands - gsm | 900MHz, 1800MHz |
| recording_mode | Loop Recording |
| remote_features | Remote video playback, Remote capture command, Remote intercom, OTA remote upgrade |
Key features
- 1 Channel 1080P + 3 Channel 720P HD Recording
- Real-time GPS location tracking (longitude, latitude, speed)
- ADAS: Lane departure and collision warning
- DMS: Fatigue, distraction, smoking, phone usage detection
- Voice warning alerts
- Real-time video upload and historical playback
- Overspeed alarm
- Low voltage alarm
- Vehicle power-off alarm
- Blind area data storage and upload
- ACC ON/OFF status tracking
- Built-in 2.4GHz WiFi
- Dual TF card support (up to 256GB each)
Downloads & documentation
Frequently asked questions
