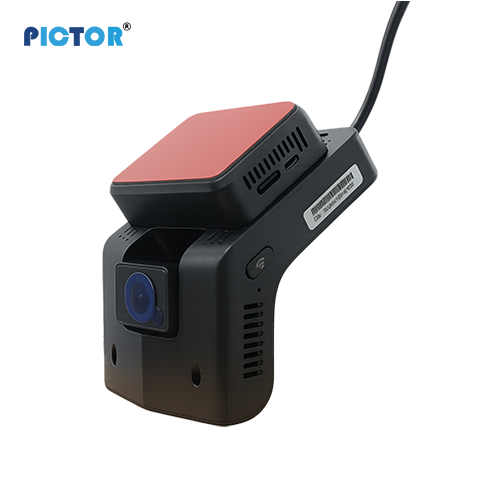

T98 Dual Channel AI Dashcam with ADAS DMS for Fleet
The H20P is a comprehensive automotive active safety product integrating satellite positioning, video monitoring, and active safety features. Designed for fleet monitoring, management, driving safety, and standardized driving behavior, it incorporate...
About T98 Dual Channel AI Dashcam with ADAS DMS for Fleet

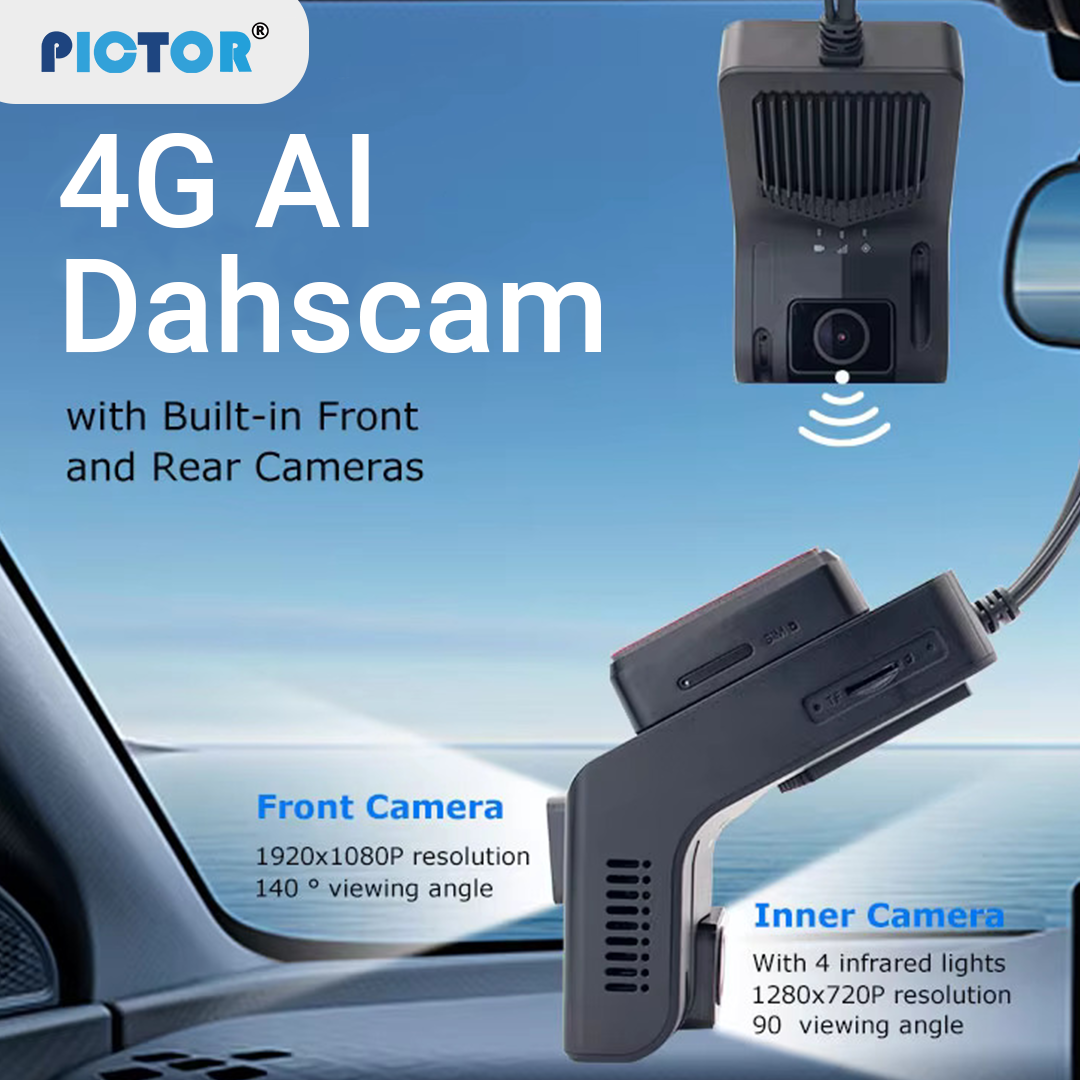

It enhances traffic safety and efficiency in complex driving scenarios while improving user experience. The device features a highly integrated design with built-in positioning antenna, 4G antenna, and dual 1080P cameras for easy installation. The product complies with JT/T 808 and JT/T 1078 standards, meeting the needs of ride-hailing, taxi, and logistics fleets for video monitoring and driving behavior management.
- Support real-time video, playback, emergency alerts, TTS text messages, and dual IP reporting.

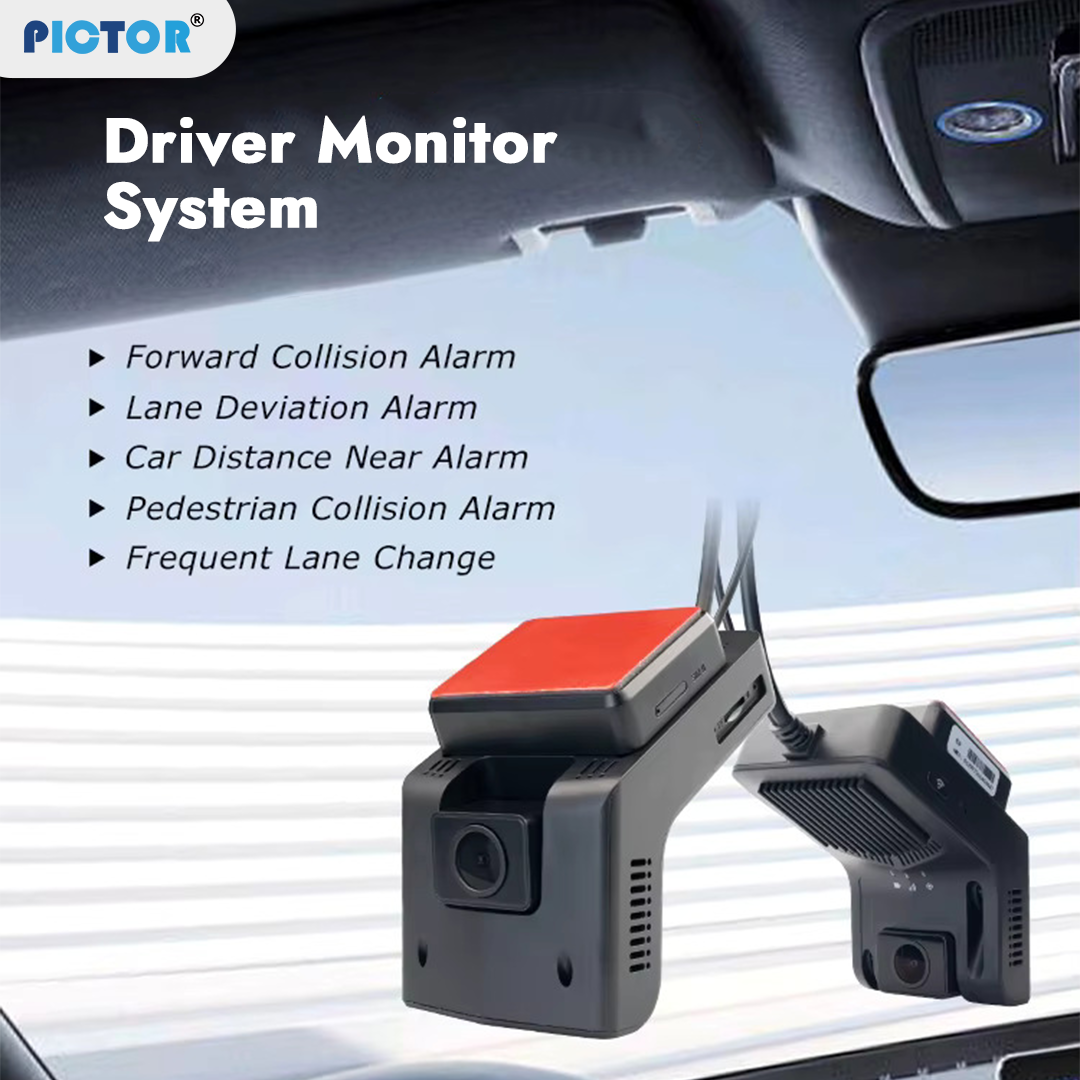

- Features forward collision alarm, pedestrian collision alarm, lane departure alarm, and car distance too close alarm.
- Features fatigue driving alarm, distracted driving alarm, smoking alarm, and phone call alarm.
- When multiple alarms are triggered simultaneously, the system will follow the priority order to issue alerts. A higher-priority alarm can override and interrupt the voice alert of a lower-priority alarm.
Key highlights
Product features
Evaluate these capabilities against your route profile, risk controls, and team workflows.
- Support real-time video, playback, emergency alerts, TTS text messages, and dual IP reporting.
- Features forward collision alarm, pedestrian collision alarm, lane departure alarm, and car distance too close alarm.
- Features fatigue driving alarm, distracted driving alarm, smoking alarm, and phone call alarm.
- When multiple alarms are triggered simultaneously, the system will follow the priority order to issue alerts. A higher-priority alarm can override and interrupt the voice alert of a lower-priority alarm.
Technical specifications
Use this table for compatibility checks, deployment planning, and integration review.
| Operating System | Linux |
|---|---|
| RAM | Embedded 1Gb DDR3L |
| ROM | 128Mb SPI NOR Flash |
| Storage | Single TF card slot (supports up to 512GB) |
| Camera 1 | MIPI, 1080P/25fps |
| Camera 2 | MIPI, 1080P/25fps, with light sensor and IR switching |

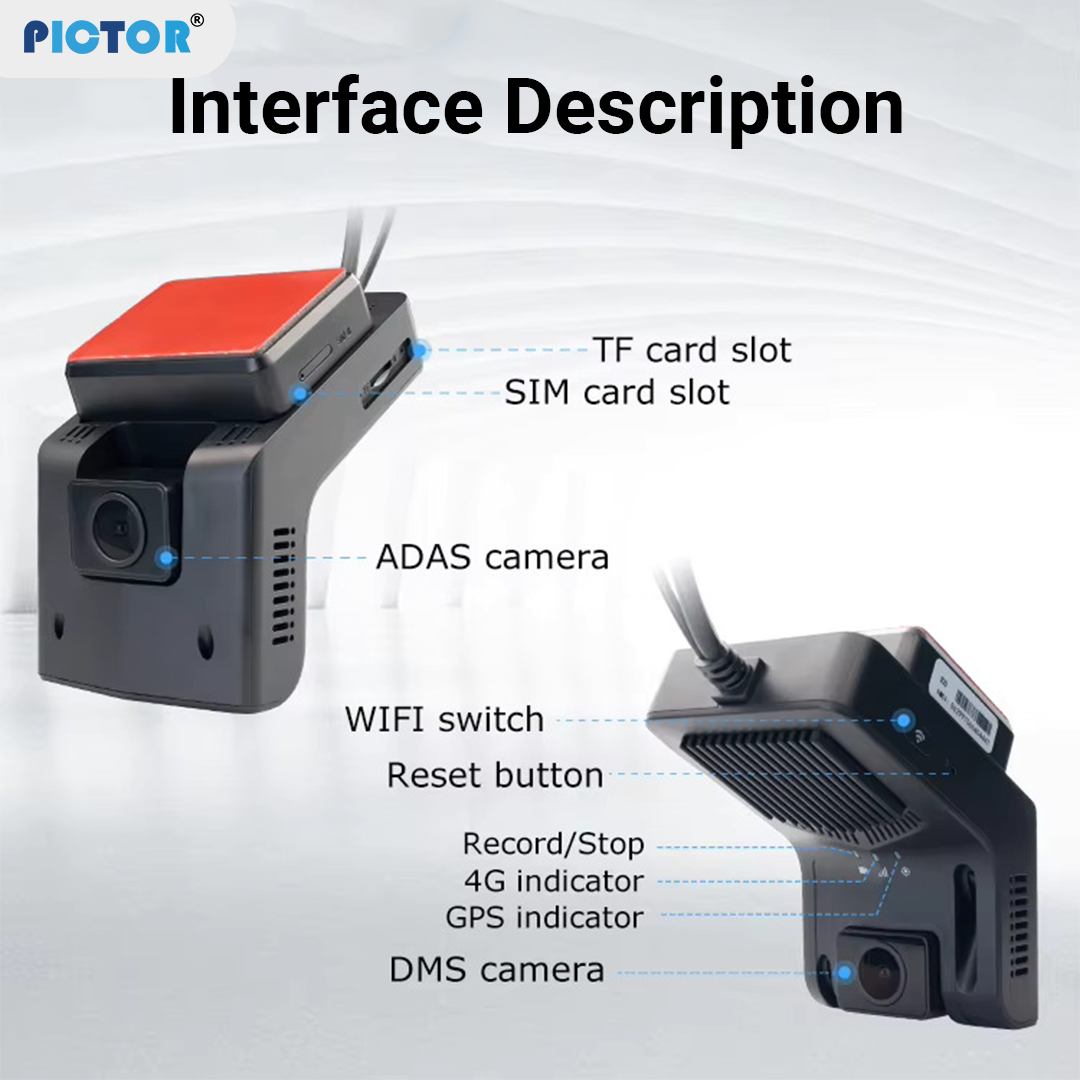

| Network & Connectivity | FPC antenna for 4G, built-in positioning antenna for GPS/BD, and built-in FPC antenna for WIFI (IEEE802 b/g/n) |
| Interface | Speaker (1.1W/80), onboard MIC, and 1 channel SOS button |
| Video System | PAL/NTSC |
| Compression Standard | H.264 |
| Image Resolution Ratio | 1080p@30fps |
| Playback Quality | 720P/1080P |
| Audio Compression | G.711A, AAC |
| Power Input | DC 9V-36V |
| Typical Power Consumption | 2W (Excluding Peripherals) |
| Working Temperature | -20-70℃ |
| Measure | 115x66x70mm |
Key features
- Support real-time video, playback, emergency alerts, TTS text messages, and dual IP reporting.
- Features forward collision alarm, pedestrian collision alarm, lane departure alarm, and car distance too close alarm.
- Features fatigue driving alarm, distracted driving alarm, smoking alarm, and phone call alarm.
- When multiple alarms are triggered simultaneously, the system will follow the priority order to issue alerts. A higher-priority alarm can override and interrupt the voice alert of a lower-priority alarm.
Downloads & documentation
Frequently asked questions
Ready to upgrade your fleet safety?
Get a scoped quote, schedule a demo, and validate rollout fit with our product team.
