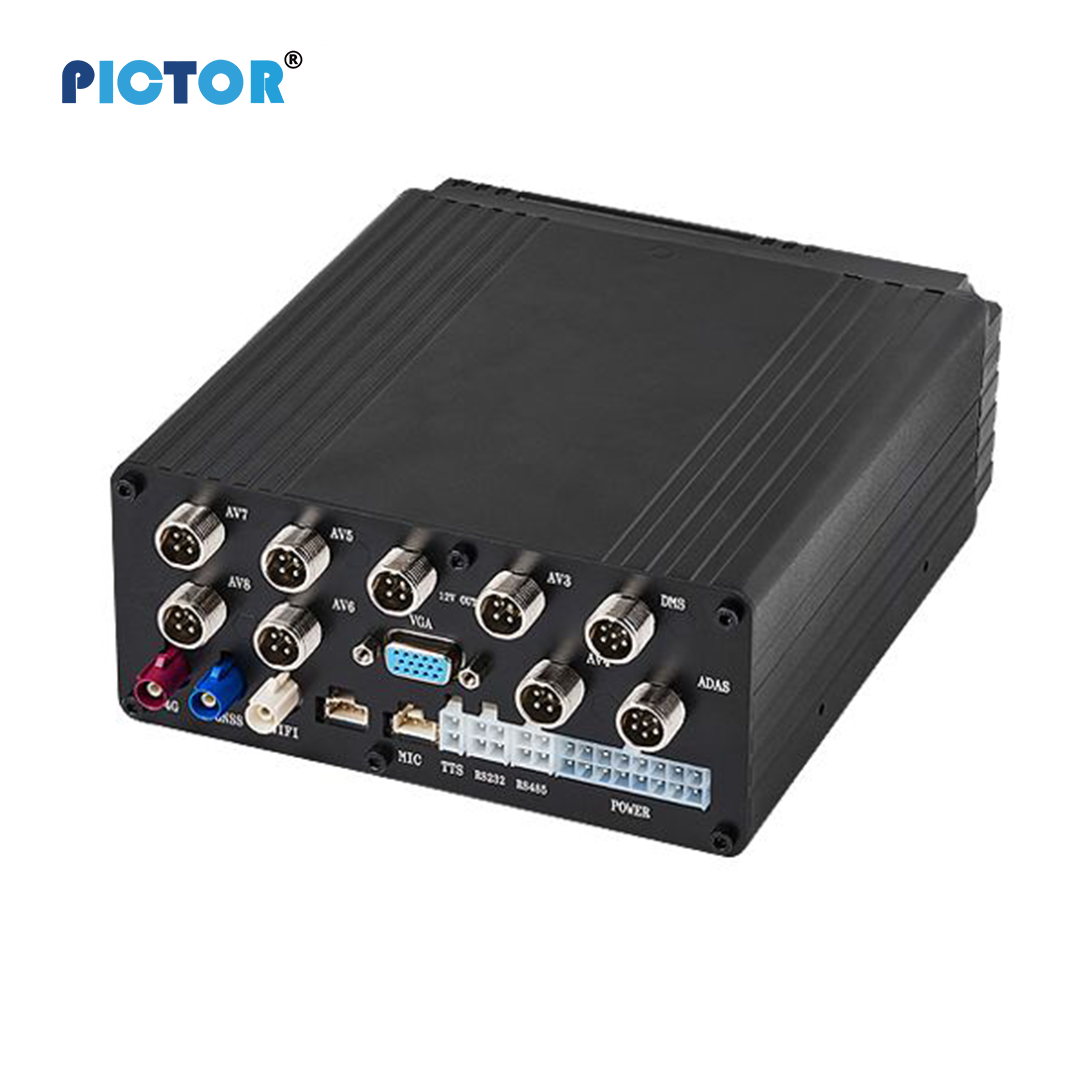

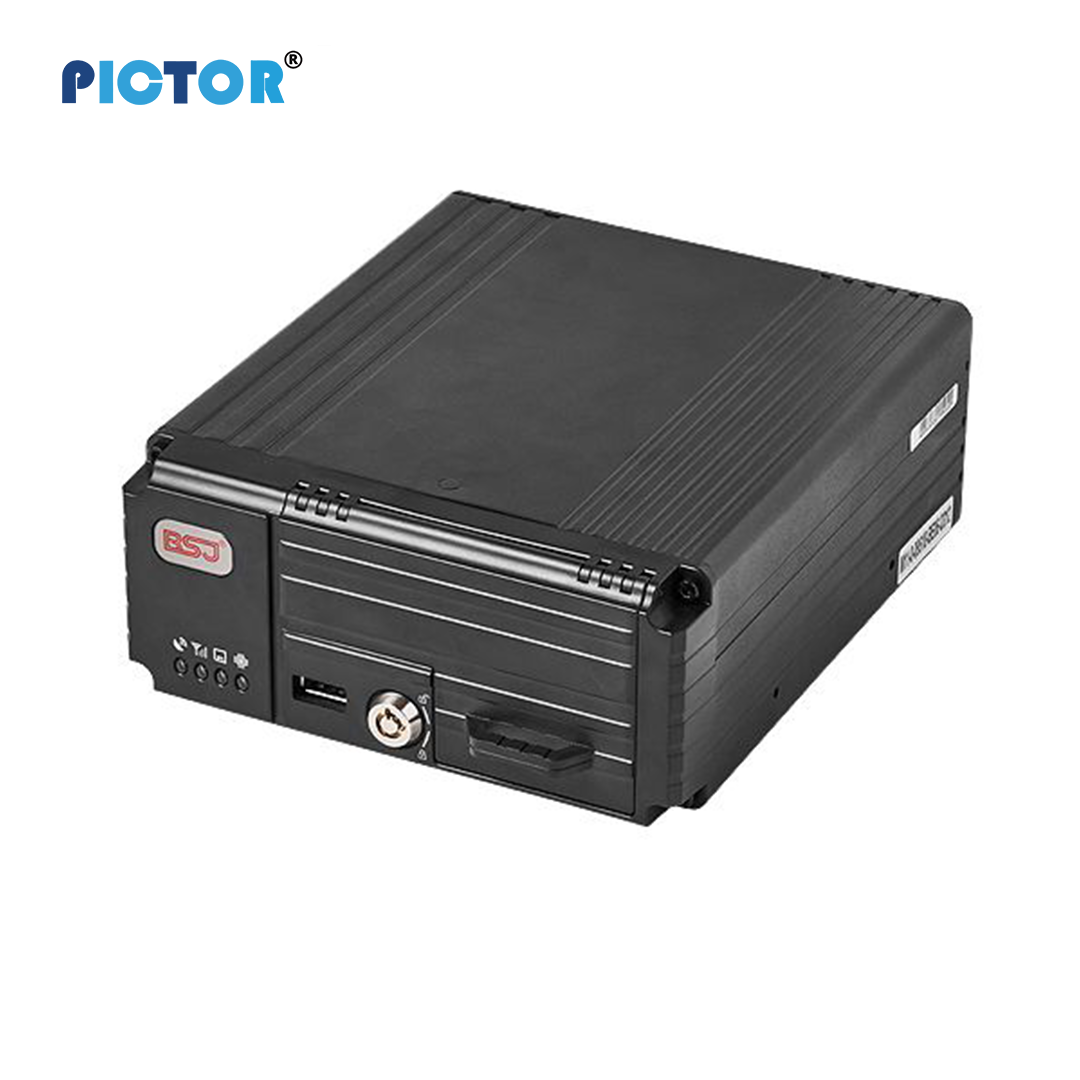

Pictor ED08R AI MDVR – 8-Channel Enterprise Mobile DVR
Pictor ED08R is an enterprise-grade 8-channel AI Mobile Digital Video Recorder (MDVR) engineered for large fleet operations. Built on Linux OS with 2.0 TOPS AI computing power, it integrates ADAS, DMS, and BSD intelligent safety systems wit...
Need specs or bulk pricing? Contact our team — we usually respond within one business day.
Why operators choose us
Proven deployment and support
From specs to installation, we help teams launch faster with fewer surprises.
Pictor ED08R is an enterprise-grade 8-channel AI Mobile Digital Video Recorder (MDVR) engineered for large fleet operations. Built on Linux OS with 2.0 TOPS AI computing power, it integrates ADAS, DMS, and BSD intelligent safety systems with full HD...
How to evaluate this product
Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.
Key Highlights
- 8-channel full HD video recording
- AI-powered ADAS safety alerts
- Driver Monitoring System (DMS)
- Blind Spot Detection (BSD)
- 2.0 TOPS AI processor
Technical Specifications
Use this table for compatibility checks, deployment planning, and integration review.
| Parameter | Value |
|---|---|
| Operating System | Linux |
| AI Computing Power | 2.0 TOPS NPU |
| Video Channels | 8 Channels |
| Video Resolution | 8 × 1080p or 8 × 720p |
| Video Compression | H.265 / H.264 |
| Cellular Network | 2G / 3G / 4G CAT.4 |
| Positioning System | GPS / GALILEO / BeiDou / GLONASS |
| WiFi | 2.4GHz |
| Storage Support | SD Card (32GB–512GB, Class 10) + Disk (128GB–2TB) |
| Input Voltage | 9–36V DC |
| Operating Temperature | -30°C to 80°C |
| Dimensions | 170mm × 150mm × 65mm |
| Weight | 1260g |
| Certification | CE, FCC |
| AI Functions - ADAS | Forward Collision Warning (FCW), Pedestrian Collision Warning (PCW), Lane Departure Warning (LDW), Following Distance Alert, Speeding Alert, Harsh Braking Alert, Harsh Acceleration Alert, Harsh Turning Alert, Collision Warning |
| AI Functions - DMS | Distracted Driving Detection, Drowsiness Alert (Eyes Closed / Yawning), Cell Phone Use Alert, Seat Belt Alert, Camera Obstruction Alert, Smoking Alert, Driver Detection Alert |
| AI Functions - BSD | Front Blind Spot Detection, Rear Blind Spot Detection, Left Blind Spot Detection, Right Blind Spot Detection |
| Power Consumption - Standby | 15.8mA @12V |
| Power Consumption - Full Load (8 Cameras) | 1897mA @12V |
| Audio - Input | 9-channel audio with external microphone (2200Ω / 1.1V–6.0V) |
| Audio - Output | 8Ω / 2W Speaker |
| Sensors | 3-Axis G-Sensor |
| Environmental - Operating Temperature | -30°C to 80°C |
| Environmental - Storage Temperature | -40°C to 85°C |
| Interfaces | Standard SIM Card Slot, SD Card Slot, HDD Support, RS232 / RS485, Type-C Debug Port, 4G / GNSS / WiFi Antenna Ports, VIN / ACC / SOS / Brake / Door Sensor Inputs, Fuel Cut-Off Output, 12V OUT & VGA |
Product Features
Features listed here should be evaluated against your route profile, risk controls, and team workflows.
| # | Feature |
|---|---|
| 1 | 8-channel full HD video recording |
| 2 | AI-powered ADAS safety alerts |
| 3 | Driver Monitoring System (DMS) |
| 4 | Blind Spot Detection (BSD) |
| 5 | 2.0 TOPS AI processor |
| 6 | H.265 high-efficiency compression |
| 7 | Global LTE band support |
| 8 | Multi-GNSS real-time positioning |
| 9 | 3-Axis G-Sensor integration |
| 10 | Fuel cut-off output control |
| 11 | Optional LoRa support |
| 12 | FOTA web configuration support |
| 13 | Multiple industrial I/O interfaces |
About Pictor ED08R AI MDVR – 8-Channel Enterprise Mobile DVR
The Pictor ED08R AI MDVR is designed as a high-capacity vehicle surveillance and safety management system for commercial fleets. It supports 8-channel 1080p/720p recording with H.265/H.264 compression for optimized storage efficiency. Equipped with advanced AI-based ADAS, DMS, and BSD functions, the system enhances driver safety, reduces accident risks, and enables real-time remote monitoring via 2G/3G/4G connectivity. With global GNSS positioning, multiple storage options up to 2TB, wide voltage input (9–36V DC), and industrial-grade temperature tolerance, ED08R ensures stable performance in demanding environments.
