Product MDVR

PICTOR T28 4-Channel Vehicle Camera System

The PICTOR T28 is a 4-channel all-in-one vehicle camera monitoring and recording system designed to provide complete around-vehicle visibility. Equipped with four wide-angle HD cameras and a 7-inch HD IPS display, it enhances driver safety...

Need specs or bulk pricing? Contact our team — we usually respond within one business day.

pictor — product
SKU T284ChannelMDVR

Why operators choose us

Proven deployment and support

From specs to installation, we help teams launch faster with fewer surprises.

9,00,000+
Devices sending data via our platform since 2014.
7,000+
Paying customers with live vehicles and assets since 2014.
118+
Indian cities with active customers since 2014.
12+ years
Commercial fleet deployments operating since 2014.
SKU: T284ChannelMDVR MDVR

The PICTOR T28 is a 4-channel all-in-one vehicle camera monitoring and recording system designed to provide complete around-vehicle visibility. Equipped with four wide-angle HD cameras and a 7-inch HD IPS display, it enhances driver safety by minimiz...

How to evaluate this product

Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.

Key Highlights

  • Four wide-angle HD cameras for 360° vehicle monitoring
  • Real-time image transmission to 7-inch HD IPS display
  • 1080P video recording with H.264 compression
  • Automatic reverse mode with adjustable guidelines
  • Wide voltage support (9V–36V) suitable for multiple vehicle types
Specifications

Technical Specifications

Use this table for compatibility checks, deployment planning, and integration review.

Parameter Value
Display Size 7-inch HD IPS Screen
Display Resolution 800 × 480
Video Input 4-Channel HD Video Input
Video Format 1080P H.264
Storage Support TF Card Class 10, Up to 128GB
Power Input Range 9V – 36V
Power Consumption < 8W
Operating Temperature -20°C to 70°C
Operation Language Simplified Chinese / Traditional Chinese / English
Display Modes 4 View Display Modes
Recording Mode Default boot video recording
Operation Interface Graphical Menu Operation
Operation Mode Physical Entity Keys (6 Keys)
Display Switching Short press to switch display
Power Control Long press to Power ON/OFF
Trigger Input Reverse / Turn Signal (10–36V)
Camera Connection Type Aviation Head Connectors

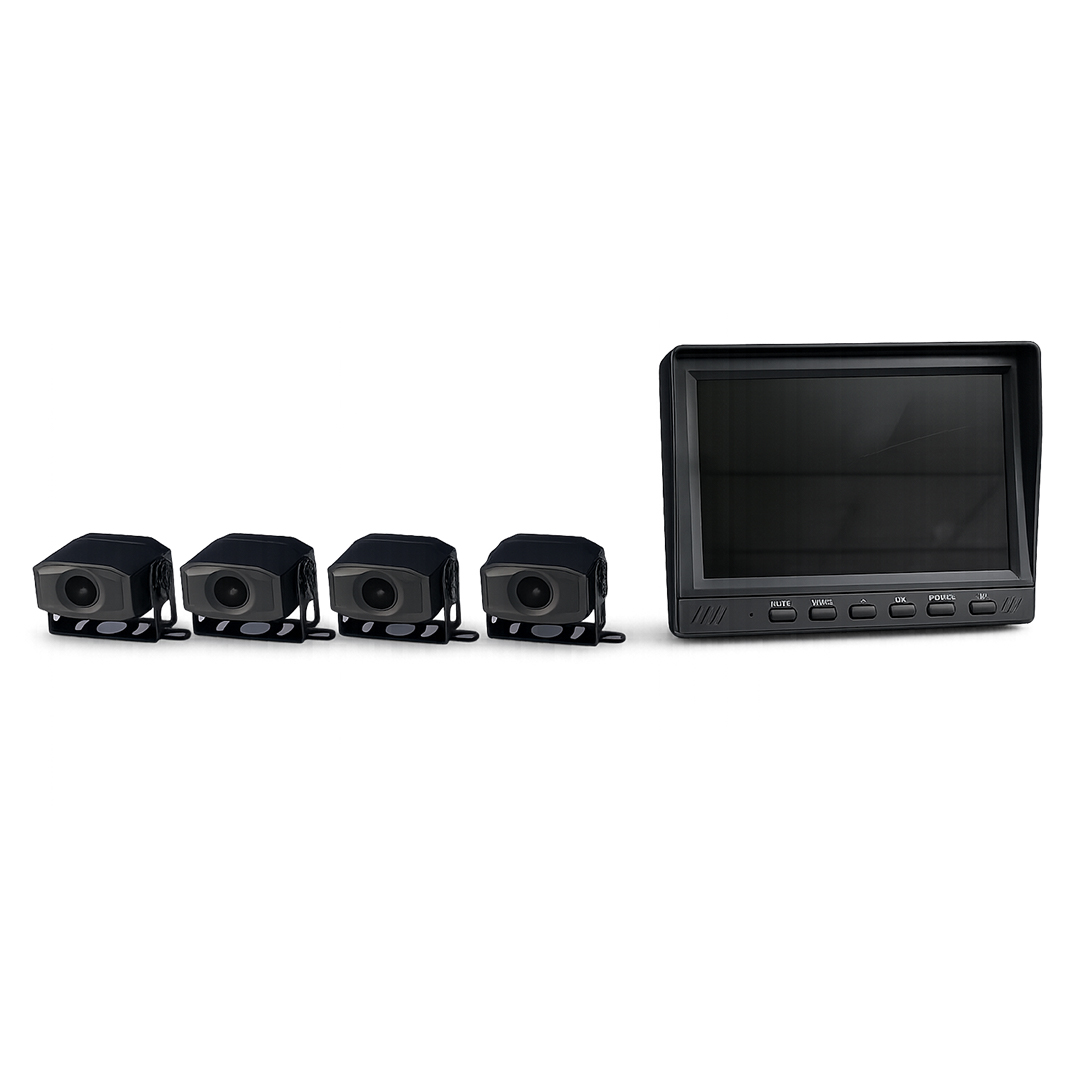

System Composition 1 × Host Unit (7-inch HD Display), 1 × Front Camera (Original View), 1 × Rear Camera (Mirror View), 1 × Left Camera, 1 × Right Camera, 4 × Aviation Video Extension Cables
Features

Product Features

Features listed here should be evaluated against your route profile, risk controls, and team workflows.

# Feature
1 Four wide-angle HD cameras for 360° vehicle monitoring
2 Real-time image transmission to 7-inch HD IPS display
3 1080P video recording with H.264 compression
4 Automatic reverse mode with adjustable guidelines
5 Wide voltage support (9V–36V) suitable for multiple vehicle types
6 Boot-up automatic recording with no second missed
7 Graphical menu interface for easy operation
8 Supports up to 128GB TF card storage
9 Low power consumption (<8W)
10 Durable performance in extreme temperatures
Overview

About PICTOR T28 4-Channel Vehicle Camera System

The PICTOR T28 4-Channel Vehicle Camera System is an advanced vehicle surveillance and safety solution that integrates four external wide-angle HD cameras with a central 7-inch HD display unit. The system delivers real-time video monitoring of the front, rear, left, and right sides of the vehicle. It records footage in 1080P H.264 format and supports TF card storage up to 128GB. Designed for commercial and heavy vehicles, it operates within a wide voltage range (9V–36V) and functions reliably in extreme temperatures from -20°C to 70°C. The system automatically switches to rear-view mode when reverse gear is engaged and provides adjustable reversing guidelines for safer maneuvering.

FAQ

Frequently Asked Questions about PICTOR T28 4-Channel Vehicle Camera System

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.
A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.
PICTOR T28 4-Channel Vehicle Camera System can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.
PICTOR T28 4-Channel Vehicle Camera System (Mobile Digital Video Recorder) is a multi-channel video recording system for buses, trucks, and commercial vehicles. It records road and cabin footage, supports multiple cameras, and offers GPS, 4G, and fleet management integration.
Our MDVR systems typically support 2–8 channels. You can add road-facing, driver-facing, and cabin cameras. All feeds are recorded simultaneously and stored on an internal HDD or SD card.
Yes. Our MDVR solutions provide the video and telemetry records typically needed by transport operators for safety governance and compliance workflows.
PICTOR T28 4-Channel Vehicle Camera System records in 1080p or 720p per channel depending on the model. H.264/H.265 compression ensures efficient storage. Recordings can be downloaded or streamed live via 4G.
Yes. With 4G connectivity, PICTOR T28 4-Channel Vehicle Camera System can stream live video to the fleet management platform. View real-time footage from any camera. Useful for incident response and driver monitoring.
Storage varies by model—typically 256GB to 1TB internal HDD or SD cards. Loop recording overwrites old footage. Critical events can be uploaded to cloud storage for long-term retention.
MDVR pricing depends on channels, storage, and connectivity. Contact Pictor for a quote. We offer solutions for buses, trucks, and special applications. Volume pricing available for fleet orders.
