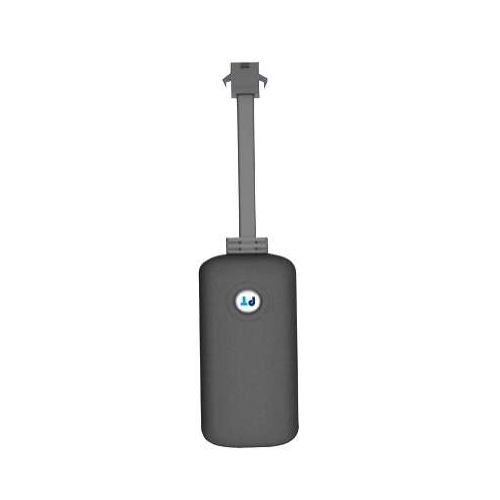

PT19H 4-Wire 4G GPS Vehicle Tracker for Heavy Fleet
PT19H is a waterproof GPS vehicle tracker equipped with a high-sensitivity GPS chip, designed for real-time tracking, remote fuel/electricity cut-off, and vehicle security across bikes and cars.
About PT19H 4-Wire 4G GPS Vehicle Tracker for Heavy Fleet
PT19H is a smart and secure GPS tracking device optimized for automobiles including cars and bikes. It operates on a wide 9V–90V input range and features real-time tracking with history playback. The device supports remote engine immobilization, vibration alerts, wire cut alerts, and mileage monitoring. Designed with IP67 water and dust resistance, PT19H ensures reliable performance in varied environmental conditions. It is lightweight, compact, and supported by a mobile app for live monitoring and asset management.
- Track vehicle live location and review travel history for days/months.
- Get alerts for vehicle power ON/OFF status.
- Operates within 9V–90V range.
- Access vehicle mileage information.
- Remotely disable fuel/electricity during emergency or theft situations.
Key highlights
Product features
Evaluate these capabilities against your route profile, risk controls, and team workflows.
- Track vehicle live location and review travel history for days/months.
- Get alerts for vehicle power ON/OFF status.
- Operates within 9V–90V range.
- Access vehicle mileage information.
- Remotely disable fuel/electricity during emergency or theft situations.
- Instant alert if GPS device wiring is tampered.
- Notification on unusual vehicle movement.
- Stores tracking data up to 4MB.
- Water and dust resistant for harsh conditions.
- Real-time tracking, playback, alarms, and vehicle management via mobile app.
Technical specifications
Use this table for compatibility checks, deployment planning, and integration review.
| Model | PT19H |
|---|---|
| GPS Chip | MTK6261D |
| Dimensions | 74(L) × 35(W) × 13(H) mm |
| Network | GSM |
| GSM Frequency | 850/900/1800/1900 MHz |
| GPRS | Class12, TCP/IP built-in GSM module |
| Channels | 20 |
| Acquisition Sensitivity | -144 dBm |
| Tracking Sensitivity | -160 dBm |
| Voltage Input | 9V–90V |
| Working Temperature | -20°C to 60°C (can work 4 hours under 80°C) |
| Locating Time | Hot <2 sec (Open Sky) | Warm <15 sec | Cold <38 sec (Open Sky) |
| GPS Antenna | Built-in 18mm × 18mm × 4mm ceramic chip antenna |
| GSM Antenna | Spring antenna |
| Built-in Battery | Yes |
| Battery Capacity | 55mAh |
| Vibration Sensor | Yes |
| ACC Detection | Yes |
| Oil/Electricity Cut-Off | Yes |
| SOS Button | No |
| Microphone | No |
| Power Button | Yes |
| Flash Memory | Up to 4MB |
| Ingress Protection | IP67 (Waterproof & Dustproof) |
| Product Lifespan | 2 Years |
| Communication Protocol | TCP/IP over GSM |
| SIM Requirement | 2G SIM (Prepaid or Postpaid) |
| Compatible Networks (India) | Airtel, Vodafone and other leading telecom providers |
| Indicator Lights - Power Status | Red |
| Indicator Lights - GPS | Blue |
| Indicator Lights - GSM | Green |
| Data Uploading Port | No |
| Function Port | No |
Key features
- Track vehicle live location and review travel history for days/months.
- Get alerts for vehicle power ON/OFF status.
- Operates within 9V–90V range.
- Access vehicle mileage information.
- Remotely disable fuel/electricity during emergency or theft situations.
- Instant alert if GPS device wiring is tampered.
- Notification on unusual vehicle movement.
- Stores tracking data up to 4MB.
- Water and dust resistant for harsh conditions.
- Real-time tracking, playback, alarms, and vehicle management via mobile app.
