S5A 8-Wire 4G GPS Fleet Tracker for Heavy Commercial Vehicles
S5A 4G LTE GPS Tracker is a compact real-time vehicle tracking device designed for cars, motorcycles, and scooters with remote fuel cut-off, ACC detection, and multiple alarm functions.
About S5A 8-Wire 4G GPS Fleet Tracker for Heavy Commercial Vehicles
The S5A 4G LTE GPS Tracker is an advanced vehicle security and fleet management device supporting LTE/GSM/GPRS networks. It provides real-time tracking via mobile app or platform and supports ignition detection, speed alerts, movement alerts, vibration alarms, and remote fuel/electricity cut-off. Equipped with a built-in GPS and GSM antenna and a 150mAh backup battery, the device ensures continuous monitoring even during power disconnection. Its wide 9–90V DC operating voltage makes it suitable for motorcycles, cars, and commercial vehicles.
- Live tracking via mobile app or web platform
- Alerts when unauthorized movement is detected
- ACC ON/OFF detection with alerts
- Over-speed alert notifications
- Alert triggered when external power is disconnected
Key highlights
Product features
Evaluate these capabilities against your route profile, risk controls, and team workflows.
- Live tracking via mobile app or web platform
- Alerts when unauthorized movement is detected
- ACC ON/OFF detection with alerts
- Over-speed alert notifications
- Alert triggered when external power is disconnected
- Location update when device angle changes
- Disable fuel or electricity remotely
- Configurable vibration alert modes
- GPRS, SMS, and Call alert combinations
- Configurable sleep settings for power saving
Technical specifications
Use this table for compatibility checks, deployment planning, and integration review.
| Dimensions | 79 × 34 × 18 mm |
|---|---|
| Network | LTE / GSM / GPRS |
| Working Voltage | 9–90V DC |
| Operating Temperature | -20°C to +70°C |
| Backup Battery | 150mAh / 3.7V Li-Polymer |
| Power Consumption | 5mA–50mA |
| GPS Channels | 66 |
| Tracking Sensitivity | -165 dBm |
| Location Accuracy | <5 meters CEP |
| Time to First Fix (Cold Start) | <35 seconds |
| Time to First Fix (Hot Start) | <1 second |
| GPRS Protocol | Class 12, TCP/IP |
| Protocol Type | GT06 Series Protocol |
| LTE-FDD Bands | B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| LTE-TDD Bands | B34/B38/B39/B40/B41 |
| GSM Frequency | 850/900/1800/1900 MHz |
| SIM Requirement | 4G SIM with active GPRS data (PIN disabled) |
| Update Interval (ACC ON) | 5–60 seconds |
| Update Interval (ACC OFF) | 5–3600 seconds |
| Power Failure Detection Time | 2–60 seconds |
| Minimum Charging Time Detection | 1–3600 seconds |
| Relay Control | Fuel/Electricity cut & resume via SMS command |
| Time Zone Setting | SMS & GPRS configurable |
Key features
- Live tracking via mobile app or web platform
- Alerts when unauthorized movement is detected
- ACC ON/OFF detection with alerts
- Over-speed alert notifications
- Alert triggered when external power is disconnected
- Location update when device angle changes
- Disable fuel or electricity remotely
- Configurable vibration alert modes
- GPRS, SMS, and Call alert combinations
- Configurable sleep settings for power saving
Downloads & documentation
Frequently asked questions
Ready to upgrade your fleet safety?
Get a scoped quote, schedule a demo, and validate rollout fit with our product team.
Request demoRelated products
More models you may want to compare.
G17S 8-Wire 4G GPS Fleet Tracker for Commercial Vehicles
G17H is a concealed vehicle GPS positioning terminal designed for real-time tracking, remote monitoring, and vehicle security with ACC detec...
View product

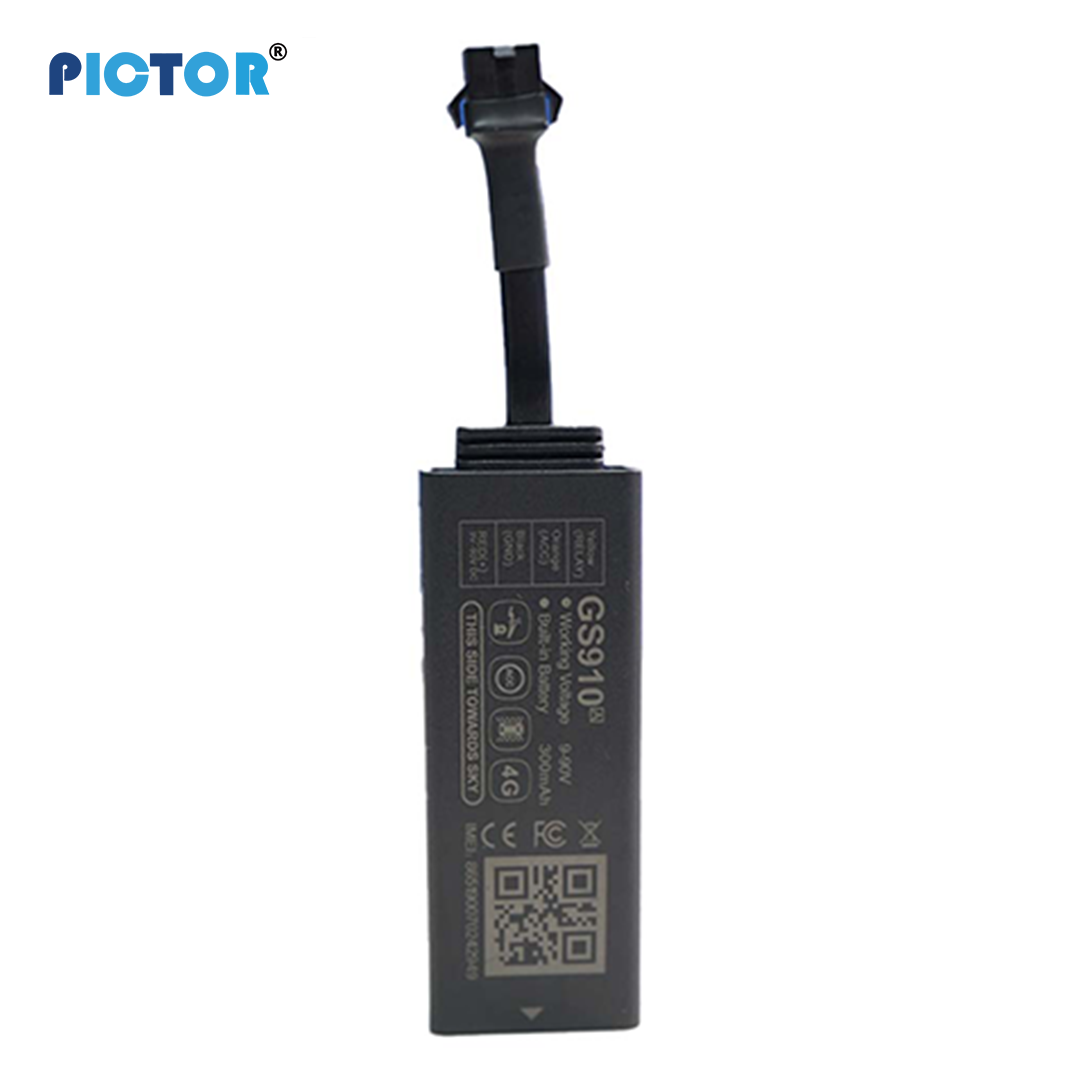

GS910 4-Wire 4G GPS Vehicle Tracker for Fleet Management
GS910 4G GPS Tracker is a compact vehicle tracking device with real-time positioning, ACC detection, remote engine cut-off, geo-fencing, and...
View product

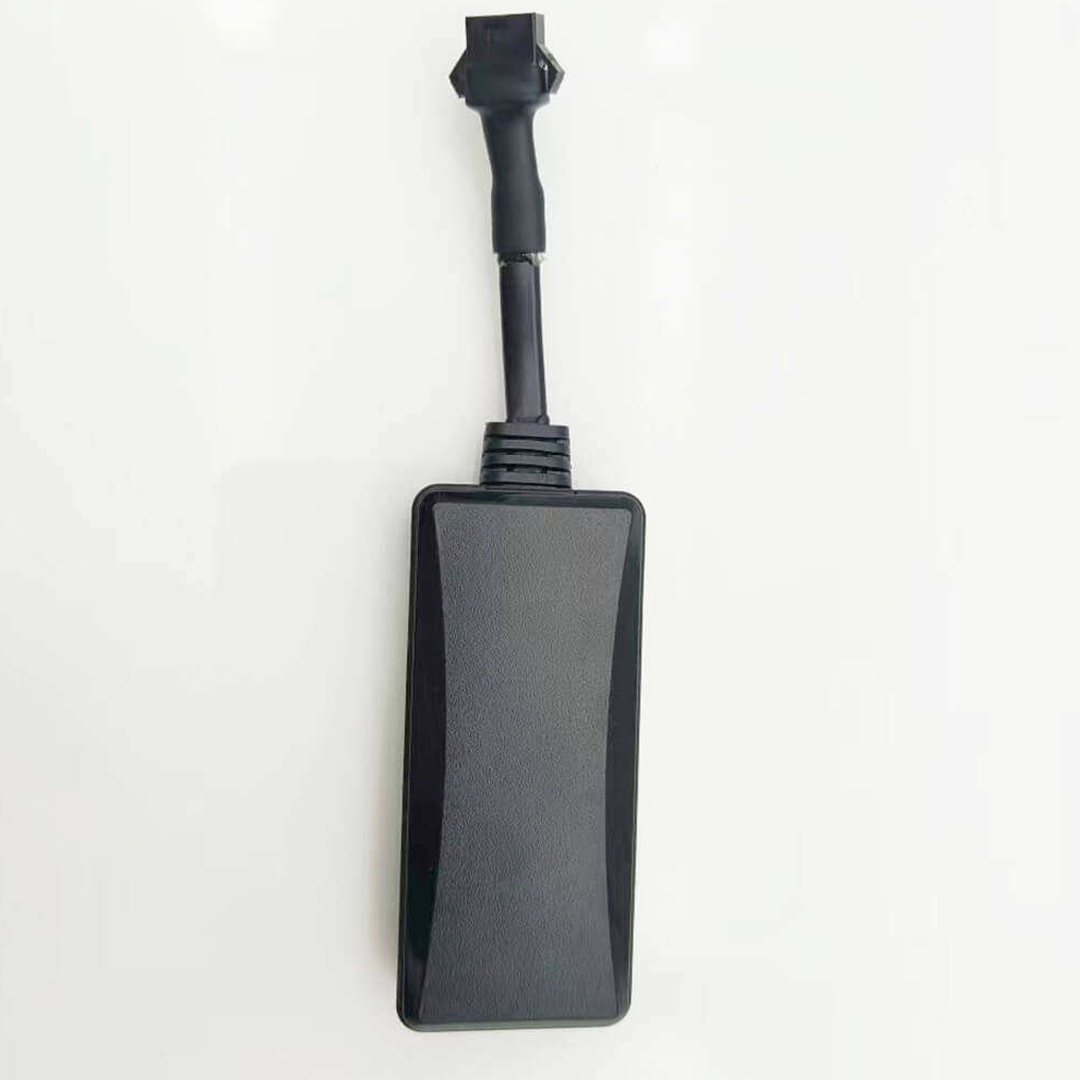

L57 4G Wired GPS Tracker 4-Wire for Fleet & Commercial Vehicles
The L57 4G LTE GPS Tracker is a compact, high-precision real-time vehicle tracking device designed for cars, motorcycles, and scooters. It s...
View product

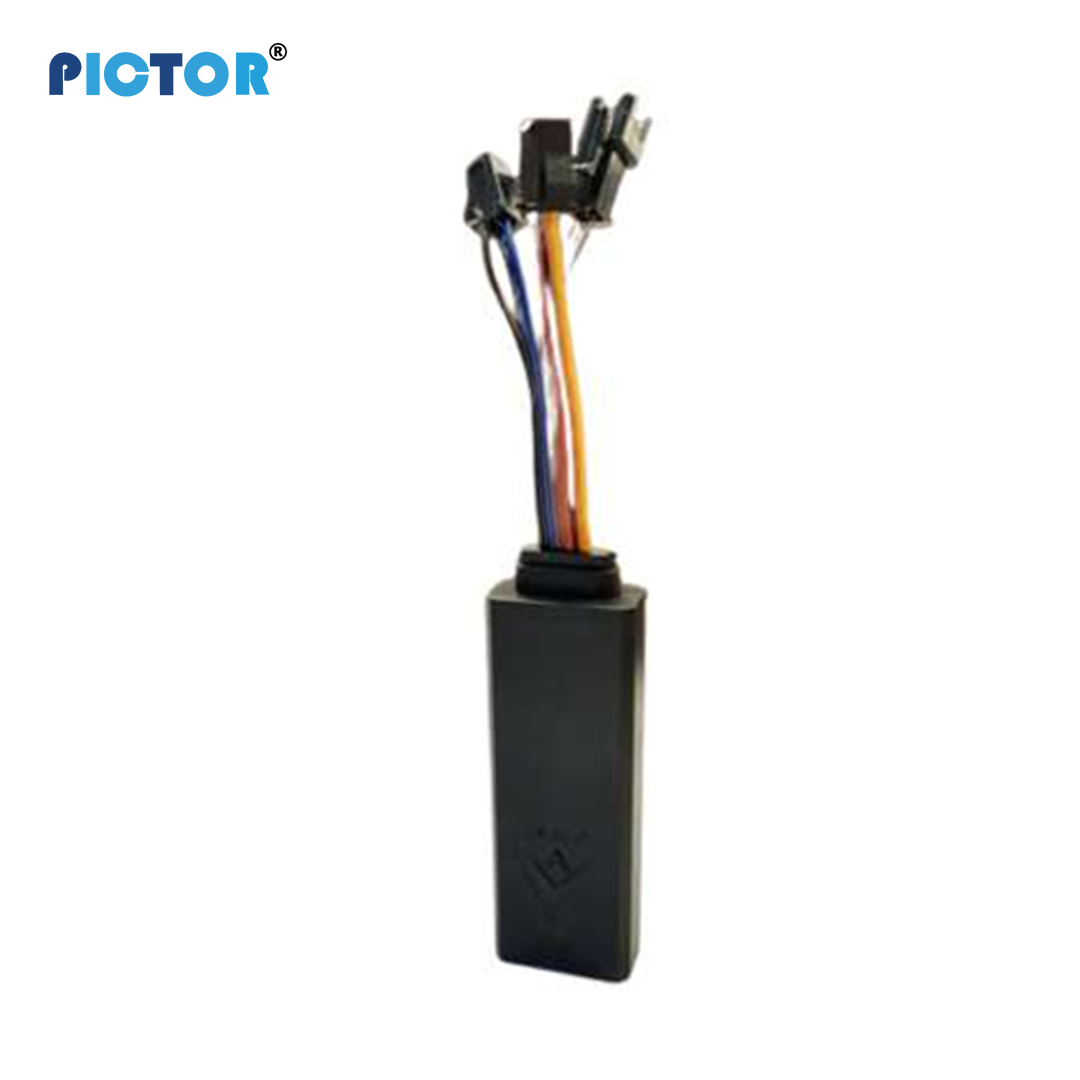

P09N 8-Wire 4G GPS Fleet Tracker with Multiple IO
