WIRELESS ASSET TRACKER SKU 45 G

45G 10000mAh 4G Long Battery Wireless Asset Tracker for Fleet

45 G is a rechargeable magnetic Asset GPS Tracker with 10000mAh battery capacity, supporting 2G/4G LTE networks, real-time tracking, anti-removal alarm, geo-fencing, and long standby operation up to 90 days.

Real-time monitoring
Fleet safety
Cloud dashboard
GPS tracking
Request demo Download datasheet
9,00,000+
Devices sending data via our platform since 2014
7,000+
Paying customers with live vehicles and assets since 2014
118+
Indian cities with active customers since 2014
12+
Years in industry
Overview

About 45G 10000mAh 4G Long Battery Wireless Asset Tracker for Fleet

The 45 G Asset GPS Tracker is a wireless, rechargeable tracking device designed for long-term asset and vehicle monitoring. Equipped with a high-capacity 10000mAh lithium battery and strong built-in magnets, it can be discreetly installed on vehicles, containers, or valuable assets. The device supports both 2G GSM and 4G LTE Cat 1 networks, ensuring stable communication across regions. It provides real-time tracking, power-saving modes, deep sleep mode, geo-fencing alerts, vibration alerts, low battery notifications, and anti-removal alarms. A built-in microphone enables remote one-way voice monitoring. The tracker uploads GPS data automatically based on movement or preset intervals through an online platform or mobile app.

  • 2G GSM (850/900/1800/1900 MHz) / 4G LTE (FDD & TDD Bands)

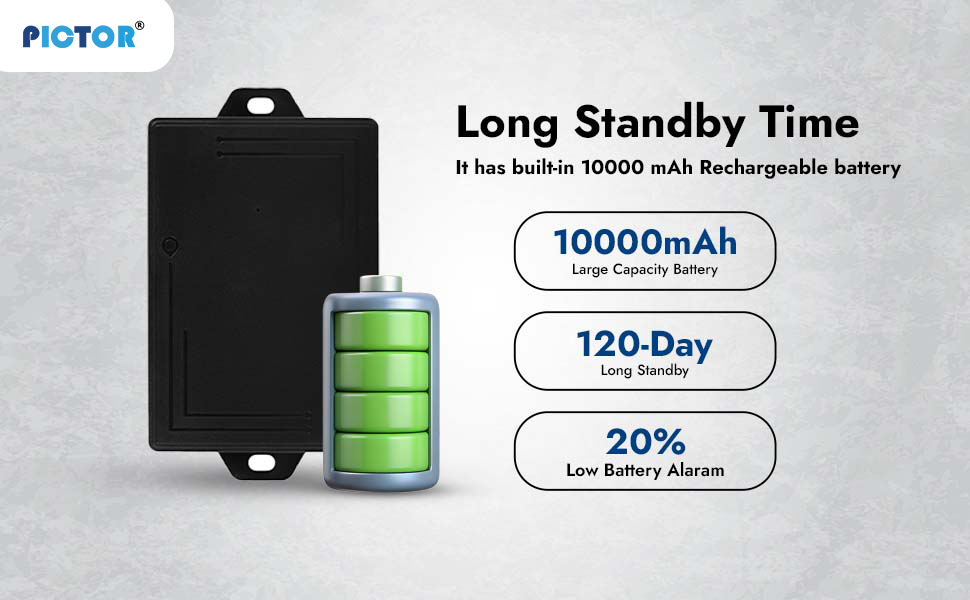

  • 10000mAh high-capacity rechargeable lithium battery
  • Supported
  • <10 meters
  • L1, 1575.42 MHz C/A code

Key highlights

2G GSM (850/900/1800/1900 MHz) / 4G LTE (FDD & T...
10000mAh high-capacity rechargeable lithium batt...
Supported
<10 meters
L1, 1575.42 MHz C/A code

Need help choosing?

Talk to our product specialists for fitment, pricing, and rollout planning.

Talk to an expert

Downloads

45 G Serials Communicate Protocol A G57 G5A 45 G User Manual (1)

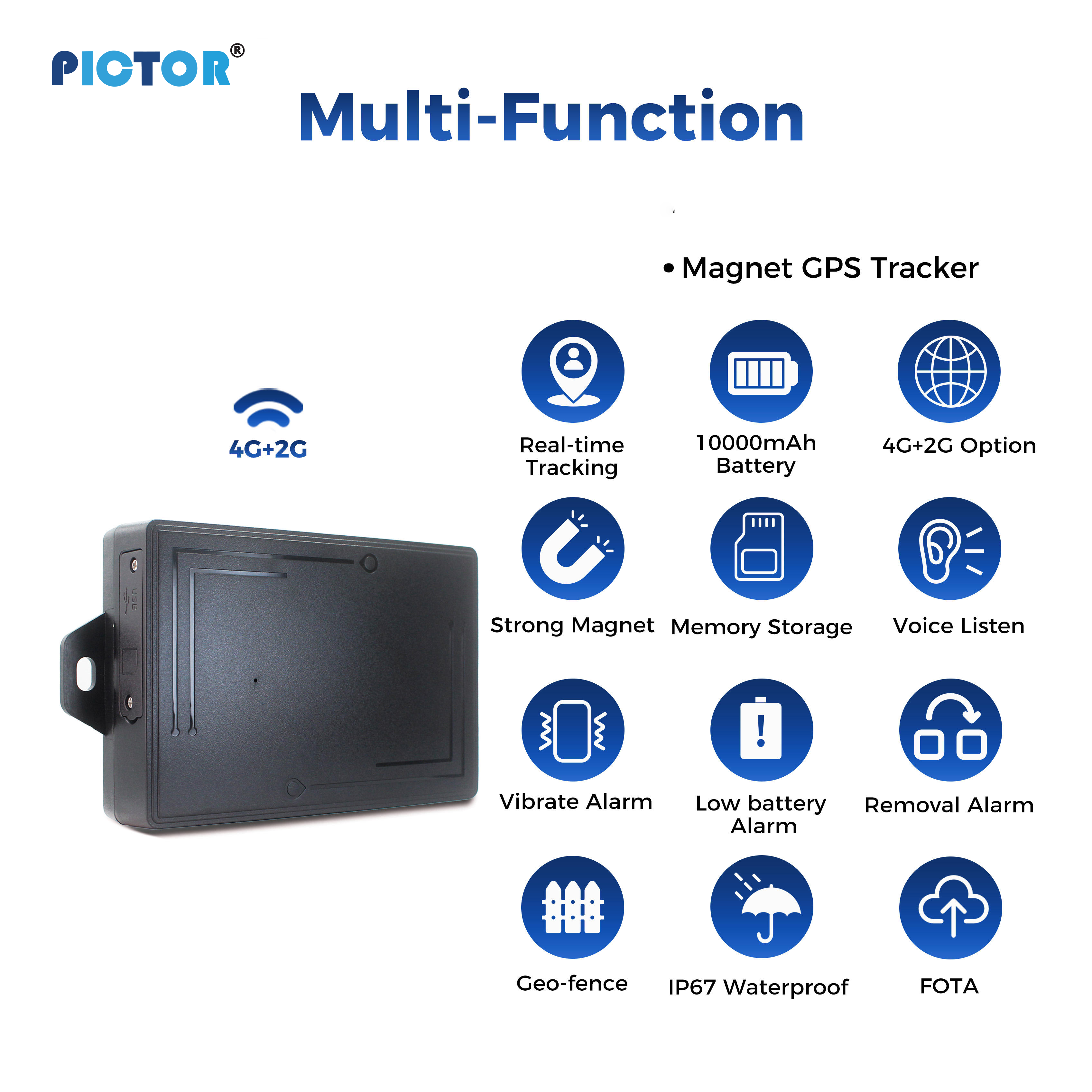

Features

Product features

Evaluate these capabilities against your route profile, risk controls, and team workflows.

  • 2G GSM (850/900/1800/1900 MHz) / 4G LTE (FDD & TDD Bands)
  • 10000mAh high-capacity rechargeable lithium battery
  • Supported
  • <10 meters
  • L1, 1575.42 MHz C/A code
  • -165 dBm
  • -148 dBm
  • ≤1 second
  • ≤32 seconds
  • Real-time Mode / Power Saving Mode / Clock Mode / Interval Mode / Deep Sleep Mode
  • Geo-fence, Low Battery, Vibration, Fall-off Alarm
  • Remote one-way voice listen supported

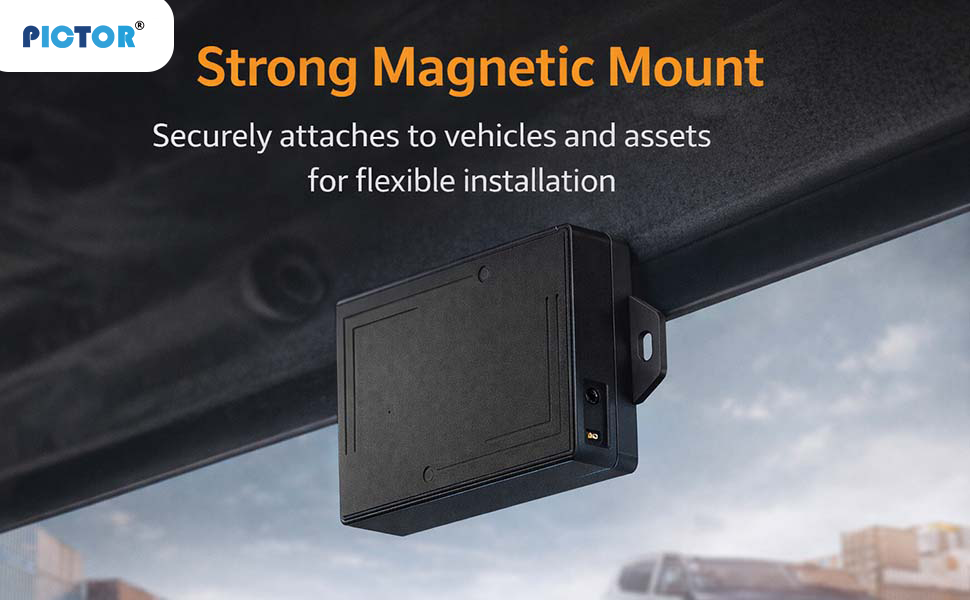

  • Strong magnetic base for hidden placement
Specifications

Technical specifications

Use this table for compatibility checks, deployment planning, and integration review.

Model 45 G
Network 2G GSM / 4G LTE Cat 1
Battery Capacity 10000mAh Rechargeable Lithium Battery
Dimensions 152 x 83 x 35 mm
Standby Time 1–90 days (depending on activity and mode)
Charging Voltage 5V DC
Working Current 100uA – 100mA
Operating Temperature -20°C to +70°C
Antenna Built-in quad band GSM antenna & GPS ceramic antenna
Memory 32 + 32 Mb
2G GSM Frequency 850/900/1800/1900 MHz
4G LTE Bands (Latin-US Version) LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66; LTE-TDD B34/B38/B39/B40/B41
4G LTE Bands (Asia Version) LTE-FDD B1/B3/B5/B8; LTE-TDD B34/B38/B39/B40/B41
GPRS Class 12, TCP/IP
Chipset (2G Version) MTK6261 (GSM) + AT6558R (GPS)
Chipset (4G Version) SIMCom LTE Cat 1 A7670 Series + AT6558R (GPS)
Location Accuracy <10 meters
Phase Error RMSPE <5, PPE <20
Max Output Power GSM850/900: 33±3dBm; GSM1800/1900: 30±3dBm
Frequency Error ±0.1 ppm
Receive Sensitivity Class II RBER 2% (-102 dBm)
GPS Channels 66
Light Indicators - Green (GSM) Constant On = Normal, Flashing = Abnormal
Light Indicators - Blue (GPS) Constant On = Normal, Flashing = Abnormal
Light Indicators - Red (Power) Constant On = Charging, Off = Fully Charged
Features

Key features

  • 2G GSM (850/900/1800/1900 MHz) / 4G LTE (FDD & TDD Bands)
  • 10000mAh high-capacity rechargeable lithium battery
  • Supported
  • <10 meters
  • L1, 1575.42 MHz C/A code
  • -165 dBm
  • -148 dBm
  • ≤1 second
  • ≤32 seconds
  • Real-time Mode / Power Saving Mode / Clock Mode / Interval Mode / Deep Sleep Mode
  • Geo-fence, Low Battery, Vibration, Fall-off Alarm
  • Remote one-way voice listen supported
  • Strong magnetic base for hidden placement
Resources

Downloads & documentation

45 G Serials Communicate Protocol PDF download
A G57 G5A 45 G User Manual (1) PDF download
FAQ

Frequently asked questions

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.
A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.
45G 10000mAh 4G Long Battery Wireless Asset Tracker for Fleet can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.
45G 10000mAh 4G Long Battery Wireless Asset Tracker for Fleet is a battery-powered GPS tracker for assets that don't have a power source—generators, trailers, construction equipment, containers. No wiring required; place and track via our platform.
Battery life depends on reporting frequency and motion. Typical range is 3–12 months. Configure update intervals to balance battery life and tracking accuracy. Low-battery alerts notify before replacement.
Track generators, trailers, shipping containers, construction equipment, two-wheelers, and any movable asset. Ideal for rental companies, logistics, and businesses with unattended assets.
Yes. Get alerts when the asset moves, leaves a geofence, or is tampered with. Motion-based tracking can increase update frequency when moving and reduce it when stationary to save battery.
Pricing includes hardware and connectivity. Contact Pictor for a quote. We offer competitive rates for single units and volume discounts for fleet deployments.
Yes. 45G 10000mAh 4G Long Battery Wireless Asset Tracker for Fleet is built for rugged conditions—dust, moisture, and temperature extremes. IP-rated enclosures protect the unit. Suitable for construction sites, ports, and industrial environments.
Yes. Set geofences for yards, sites, or depots. Receive alerts when assets enter or leave. Useful for theft prevention and asset utilisation monitoring.
