WIRELESS ASSET TRACKER SKU G5A

G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet

Q: How do I choose the right Wireless Asset Tracker model for my fleet?

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.

Q: What does implementation include for G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet?

A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.

Q: What business outcomes can G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet improve?

G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.

Q: What is G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet?

G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet is a battery-powered GPS tracker for assets that don't have a power source—generators, trailers, construction equipment, containers. No wiring required; place and track via our platform.

Q: How long does G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet battery last?

Battery life depends on reporting frequency and motion. Typical range is 3–12 months. Configure update intervals to balance battery life and tracking accuracy. Low-battery alerts notify before replacement.

Q: What assets can G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet track?

Track generators, trailers, shipping containers, construction equipment, two-wheelers, and any movable asset. Ideal for rental companies, logistics, and businesses with unattended assets.

Q: Does G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet have movement alerts?

Yes. Get alerts when the asset moves, leaves a geofence, or is tampered with. Motion-based tracking can increase update frequency when moving and reduce it when stationary to save battery.

Q: What is the cost of wireless asset tracking in India?

Pricing includes hardware and connectivity. Contact Pictor for a quote. We offer competitive rates for single units and volume discounts for fleet deployments.

Q: Is G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet suitable for outdoor use?

Yes. G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet is built for rugged conditions—dust, moisture, and temperature extremes. IP-rated enclosures protect the unit. Suitable for construction sites, ports, and industrial environments.

Q: Does G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet support geofencing?

Yes. Set geofences for yards, sites, or depots. Receive alerts when assets enter or leave. Useful for theft prevention and asset utilisation monitoring.

G5A 6000mAh is a rechargeable magnetic asset GPS tracker supporting 2G/4G network with real-time tracking, geo-fence alerts, and long standby battery backup.

Real-time monitoring

Fleet safety

Cloud dashboard

GPS tracking

Request demo Download datasheet

9,00,000+

Devices sending data via our platform since 2014

7,000+

Paying customers with live vehicles and assets since 2014

118+

Indian cities with active customers since 2014

12+

Years in industry

Overview

About G5A 600mAh 4G Compact Wireless Asset Tracker for Fleet

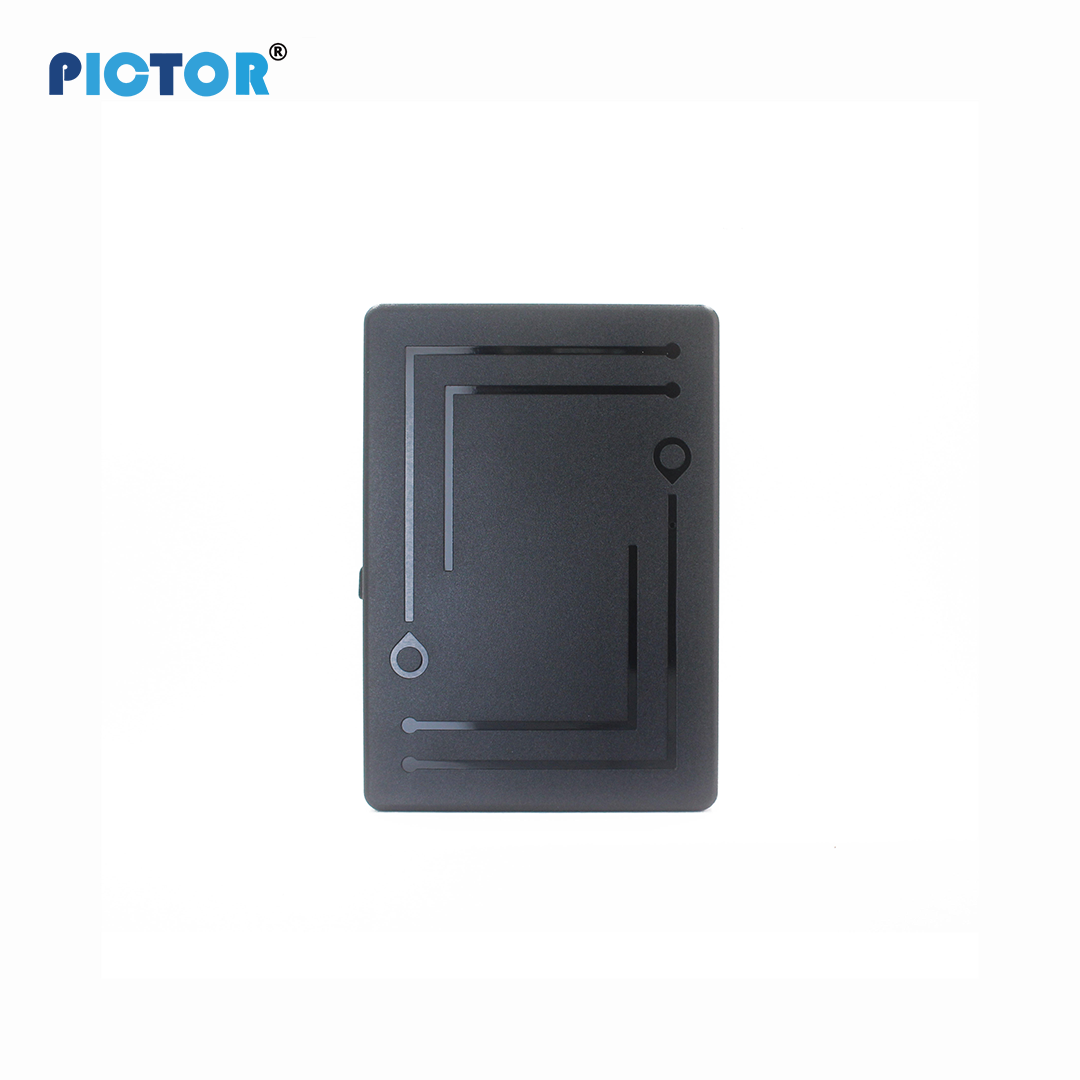

The G5A 6000mAh Asset GPS Tracker is a wireless, rechargeable tracking device designed for vehicle and asset monitoring. Equipped with built-in GSM and GPS antennas, it provides accurate real-time location tracking with less than 10 meters accuracy. The device supports multiple working modes including real-time, power-saving, clock, and interval modes. With strong magnetic mounting and compact design, it can be discreetly installed in vehicles or assets. It features geo-fence alerts, vibration alarms, low battery notifications, and remote voice monitoring via SIM-based communication. The long standby battery ensures extended operation depending on activity levels.

2G GSM 850/900/1800/1900MHz; 4G LTE FDD & TDD bands (region specific)
Real-time mode, Power-saving mode, Clock mode, Interval mode
GPS + GSM positioning
<10 meters
-165dBm

Key highlights

2G GSM 850/900/1800/1900MHz; 4G LTE FDD & TDD ba...

Real-time mode, Power-saving mode, Clock mode, I...

GPS + GSM positioning

<10 meters

-165dBm

Features

Product features

Evaluate these capabilities against your route profile, risk controls, and team workflows.

2G GSM 850/900/1800/1900MHz; 4G LTE FDD & TDD bands (region specific)
Real-time mode, Power-saving mode, Clock mode, Interval mode
GPS + GSM positioning
<10 meters
-165dBm
-148dBm
≤1 second
≤32 seconds
Built-in quad band GSM antenna and GPS ceramic antenna
Geo-fence alarm, Low battery alarm, Vibration alarm, Fall-off alarm
One-way remote voice listening via SIM call
Built-in strong magnet for concealed installation
Configurable via SMS commands
Online web platform & mobile APP tracking

Specifications

Technical specifications

Use this table for compatibility checks, deployment planning, and integration review.

Model	G5A
Dimensions	120 x 83 x 29 mm
Network	2G GSM / 4G LTE (region dependent)
Battery Capacity	6000mAh Rechargeable Lithium Battery
GPS Accuracy	< 10 meters
GPS Frequency	L1, 1575.42 MHz C/A code
Channels	66
Memory	32 + 32 Mb
Charging Voltage	5V DC
Working Current	100uA – 100mA
Operating Temperature	-20°C to +70°C
Standby Time	1–90 days depending on activity
2G Chipset	MTK6261 (GSM) + AT6558R (GPS)
4G Chipset	SIMCom LTE Cat 1 A7670 Series + AT6558R (GPS)
GPRS	Class 12, TCP/IP
Phase Error	RMSPE < 5, PPE < 20
Max Output Power	GSM850/900: 33±3dBm; GSM1800/1900: 30±3dBm
Max Frequency Error	±0.1ppm
Receive Sensitivity	Class II RBER2% (-102dBm)
Light Indicators - Green	GSM status (Constant ON normal, Flashing abnormal)
Light Indicators - Blue	GPS status (Constant ON normal, Flashing abnormal)
Light Indicators - Red	Power (ON charging, OFF fully charged)

Features

Key features

2G GSM 850/900/1800/1900MHz; 4G LTE FDD & TDD bands (region specific)
Real-time mode, Power-saving mode, Clock mode, Interval mode
GPS + GSM positioning
<10 meters
-165dBm
-148dBm
≤1 second
≤32 seconds
Built-in quad band GSM antenna and GPS ceramic antenna
Geo-fence alarm, Low battery alarm, Vibration alarm, Fall-off alarm
One-way remote voice listening via SIM call
Built-in strong magnet for concealed installation
Configurable via SMS commands
Online web platform & mobile APP tracking

Resources

Downloads & documentation

A G57 G5A 45 G User Manual (1) PDF download

G5A Serials Communicate Protocol PDF download
