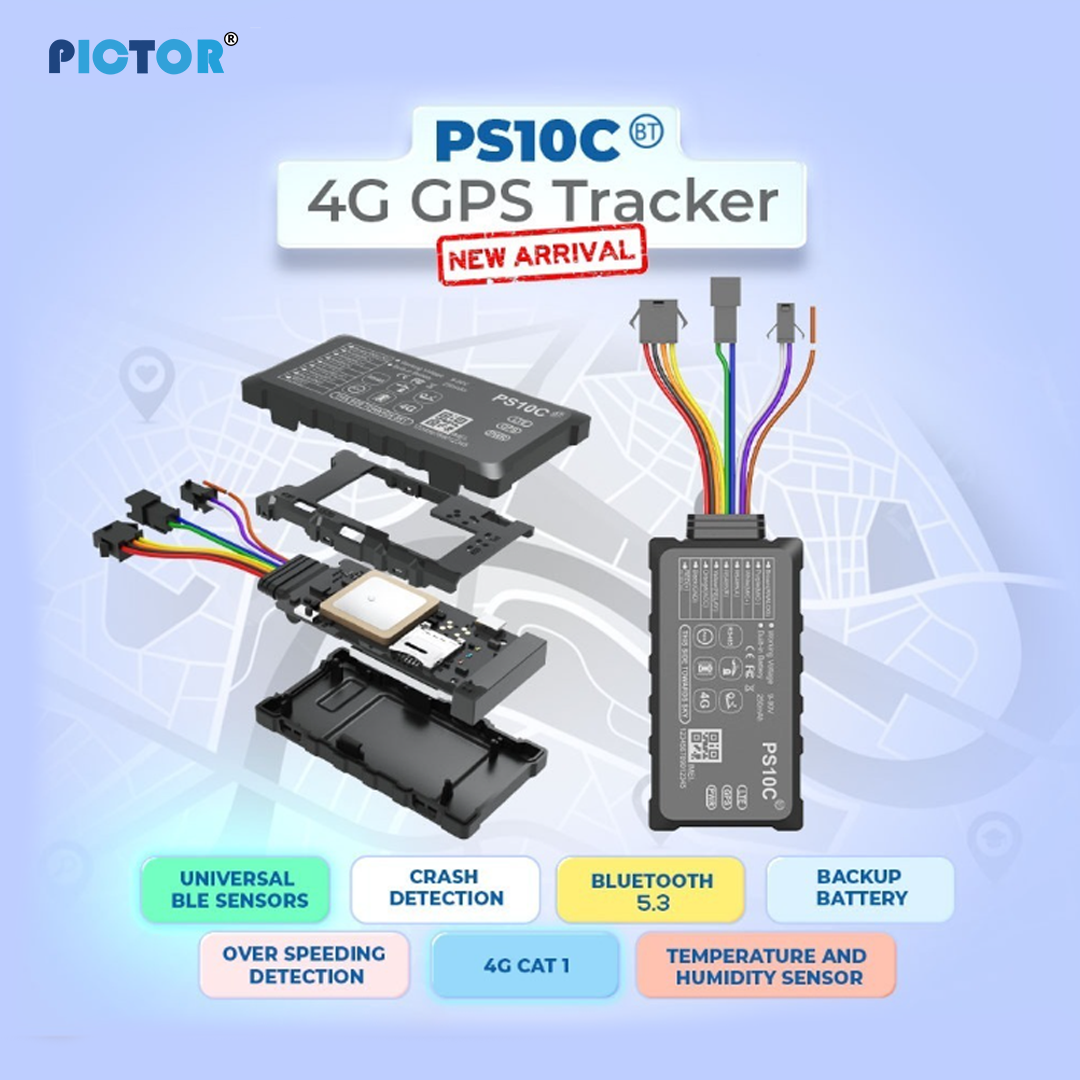

PS10-C 9-Wire 4G GPS Fleet Tracker for Heavy Duty Vehicles
PS 10C is an advanced 4G-enabled vehicle GPS tracker designed for trucks and commercial fleets, offering real-time tracking, Bluetooth sensor integration, and remote vehicle control features.
About PS10-C 9-Wire 4G GPS Fleet Tracker for Heavy Duty Vehicles
The PS 10C is a wired 4G GPS tracking device built for fleet management and heavy-duty vehicle monitoring. It supports GPS + BDS positioning for high-accuracy tracking and operates on 4G networks with 2G fallback for reliable connectivity. The device integrates Bluetooth 5.0 and RS485 interfaces for external sensors such as fuel level, temperature, and pressure monitoring. With built-in alarms, remote engine cut-off, SOS emergency support, and historical route playback, the PS 10C provides comprehensive vehicle security and operational visibility.
- Live GPS location monitoring via app or web platform
- 4G connectivity with 2G fallback
- Custom zone entry and exit notifications
- Historical trip data and movement logs
- Disable engine or fuel remotely for theft prevention
Key highlights
Product features
Evaluate these capabilities against your route profile, risk controls, and team workflows.
- Live GPS location monitoring via app or web platform
- 4G connectivity with 2G fallback
- Custom zone entry and exit notifications
- Historical trip data and movement logs
- Disable engine or fuel remotely for theft prevention

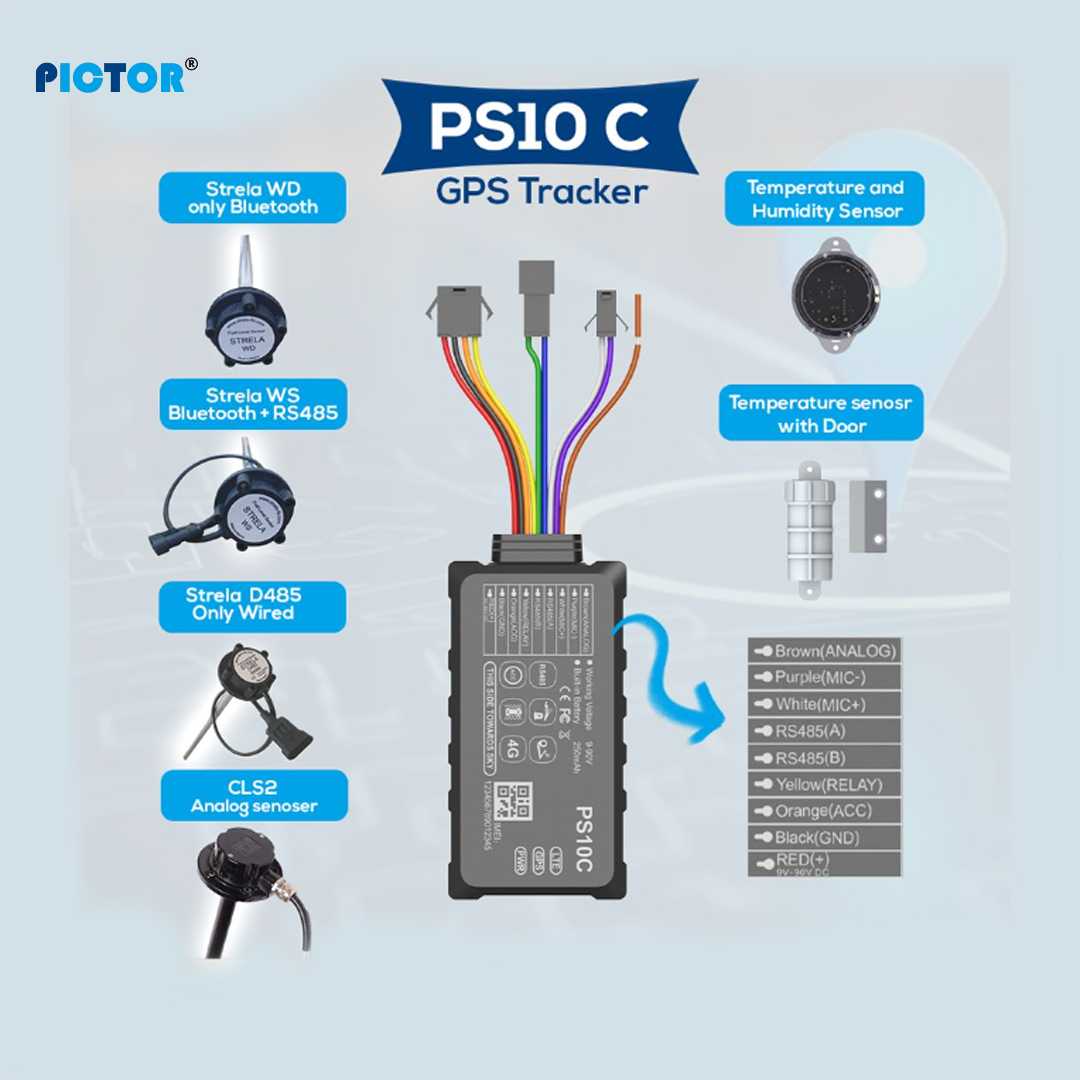

- Fuel, temperature, and pressure sensors via Bluetooth and RS485
- Detects harsh braking, collision, and sudden movement
- Overspeed, vibration, movement, wire-cut, and tamper alerts
- 1-way microphone for in-vehicle listening
- Instant alert in emergency situations
Technical specifications
Use this table for compatibility checks, deployment planning, and integration review.
| Model | PS 10C |
|---|---|
| Network | 4G LTE with 2G fallback |
| Positioning | GPS + BDS |
| Dimensions | 79.5 mm x 42 mm x 12.5 mm |
| Weight | 47 g |
| Operating Voltage | 9V – 90V |
| Backup Battery | 250mAh, 3.7V |
| Bluetooth | BLE 5.0 |
| Interface | RS485 / RS232 |
| Microphone | 1-way built-in |
| SOS Button | Supported |
| Operating Temperature | -20°C to 75°C |
| Storage Temperature | -30°C to 80°C |
| Waterproof Rating | IPX5 |
| Cellular Bands | GSM 900/1800 |
| GPS Sensitivity | -162 dBm |
| GPS Chipset | SIMCOM A7670E |
| Communication Protocols | TCP/UDP |
| Data Access | Mobile App, Web Platform, SMS Commands |
| Backup Power Support | Yes |
| Installation Type | Wired Installation |
Key features
- Live GPS location monitoring via app or web platform
- 4G connectivity with 2G fallback
- Custom zone entry and exit notifications
- Historical trip data and movement logs
- Disable engine or fuel remotely for theft prevention
- Fuel, temperature, and pressure sensors via Bluetooth and RS485
- Detects harsh braking, collision, and sudden movement
- Overspeed, vibration, movement, wire-cut, and tamper alerts
- 1-way microphone for in-vehicle listening
- Instant alert in emergency situations
