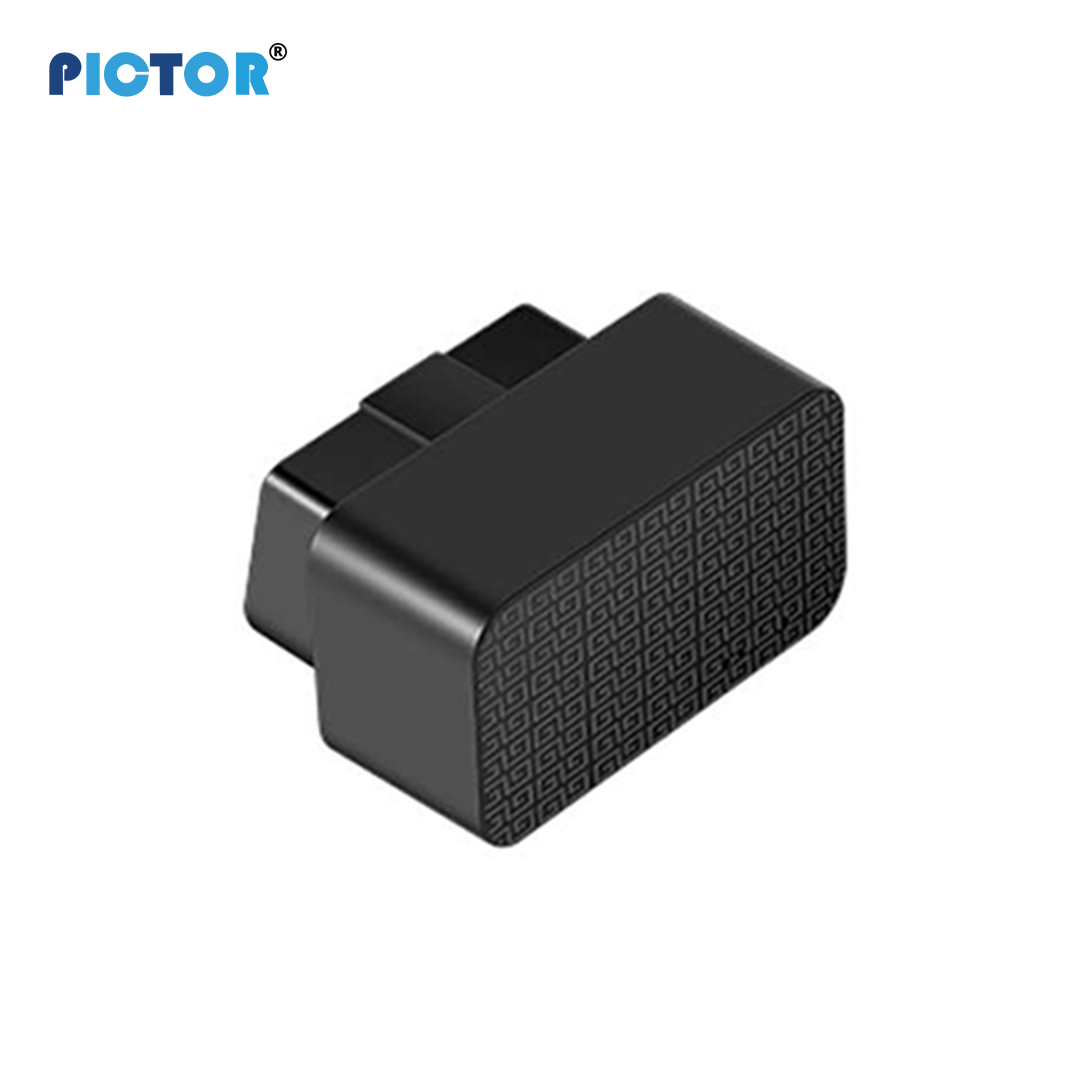

PS25 OBD2 4G GPS Fleet Tracker with Advanced Diagnostics
The PS25 OBD Car GPS Tracker is a plug-and-play vehicle tracking device that connects directly to the vehicle’s OBD-II port for real-time location tracking, vehicle monitoring, and telematics insights without any wiring or complex installation.
About PS25 OBD2 4G GPS Fleet Tracker with Advanced Diagnostics
The PS25 OBD GPS Tracker is a compact and intelligent vehicle tracking solution designed for instant deployment. Simply plug the device into the OBD-II port and start tracking in real time through a mobile app or web platform. It provides live location updates, trip history playback, overspeed alerts, geofencing notifications, mileage reports, and ignition status monitoring. With built-in GSM and GPS antennas and a backup battery, it ensures consistent performance for personal vehicles, fleet management, taxi operations, and rental businesses.
- Plug & Play OBD-II installation (no wiring required)
- Real-time GPS tracking with frequent updates
- Route history and trace playback
- Geofencing alerts (entry/exit notifications)
- Overspeed alerts
Key highlights

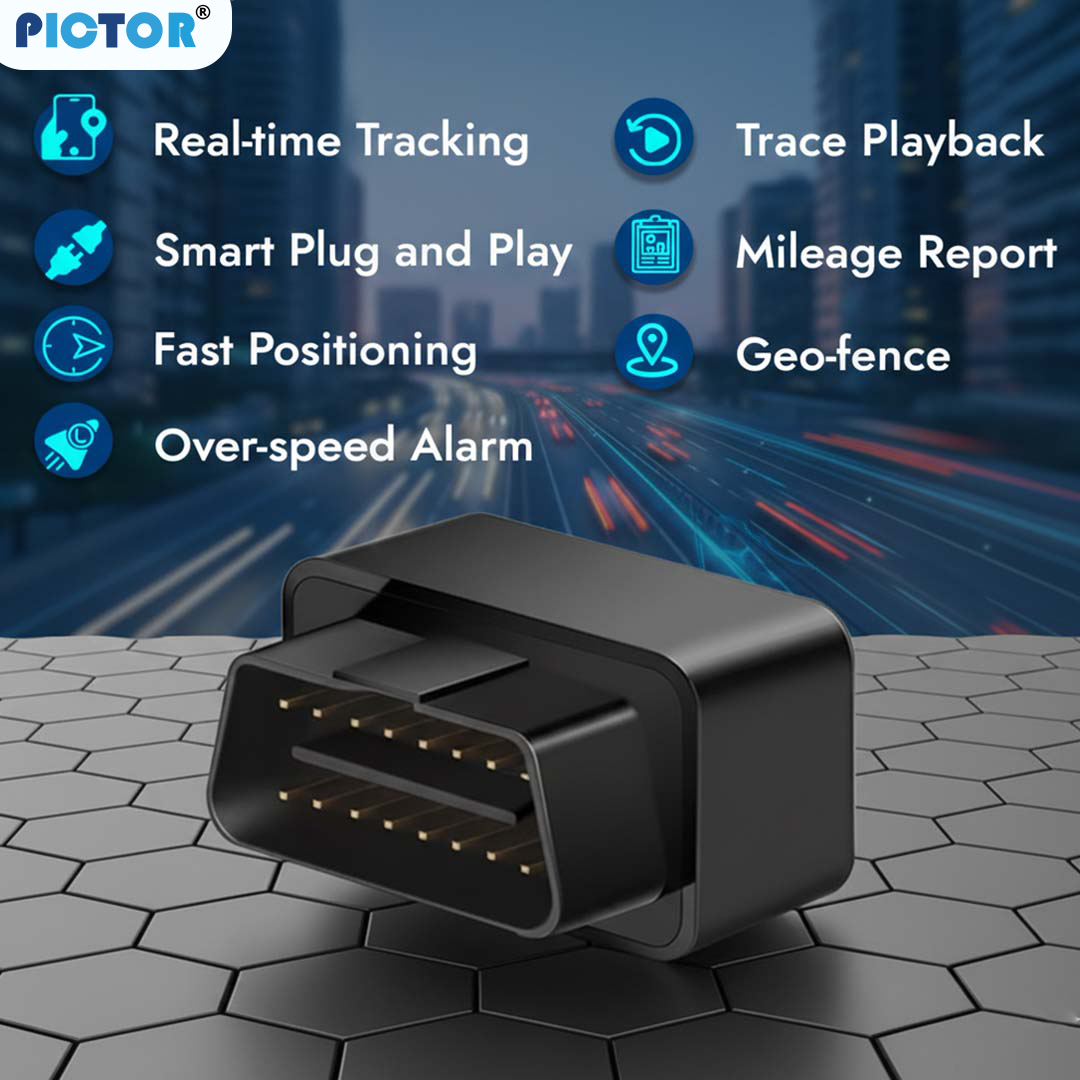

Product features
Evaluate these capabilities against your route profile, risk controls, and team workflows.
- Plug & Play OBD-II installation (no wiring required)
- Real-time GPS tracking with frequent updates
- Route history and trace playback
- Geofencing alerts (entry/exit notifications)
- Overspeed alerts
- Ignition ON/OFF alerts
- Mileage and trip reporting
- Compact and discreet design
- Built-in GSM and GPS antennas
- Remote monitoring via mobile app and web platform
Technical specifications
Use this table for compatibility checks, deployment planning, and integration review.
| Model | PS25 |
|---|---|
| Device Type | OBD Plug & Play GPS Tracker |

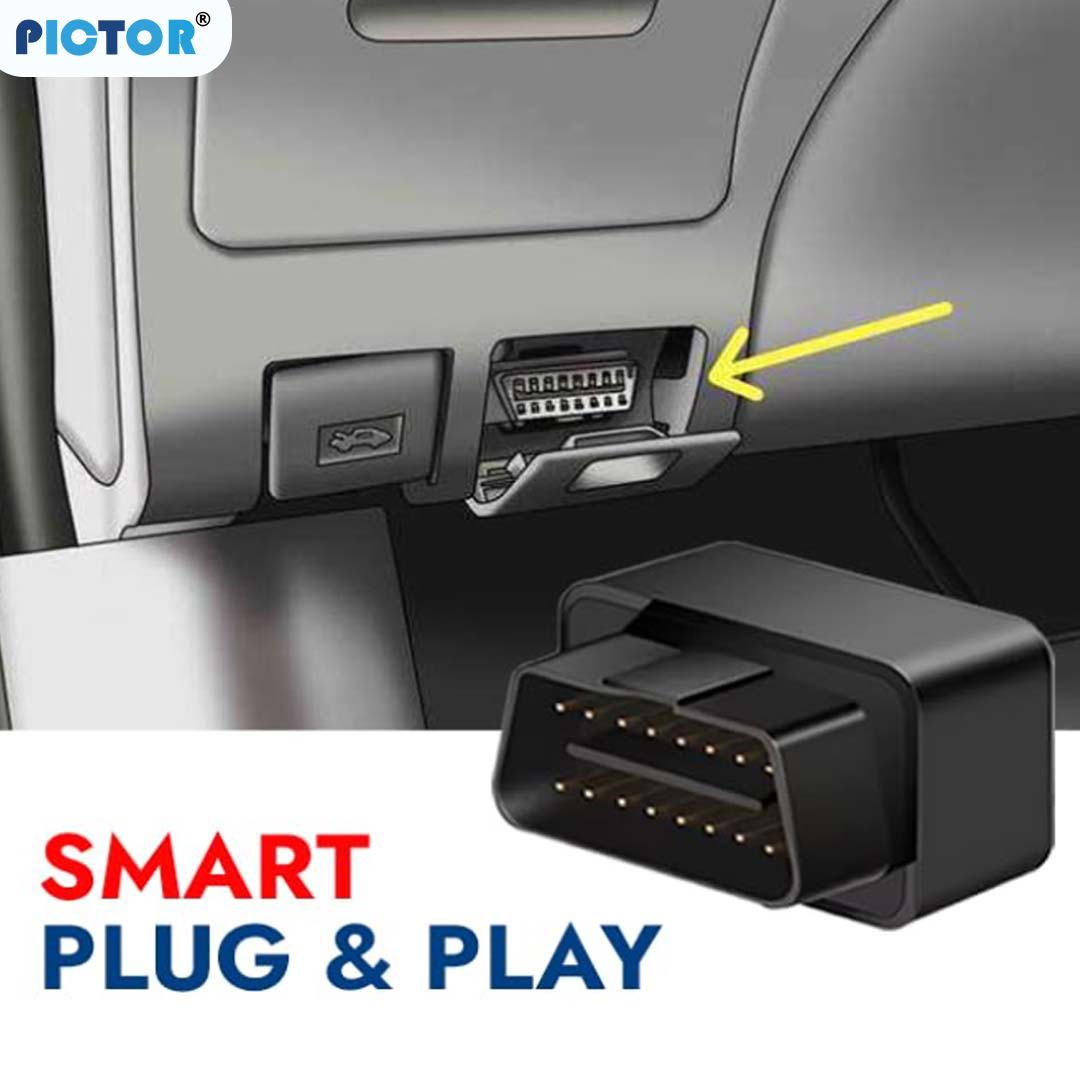

| Installation | Direct OBD-II Port Connection |
| Dimensions | 47.4 x 33.2 x 27.6 mm |
| Weight | Approx. 30–32 g |
| Operating Voltage | 12V–36V |
| GPS Accuracy | ≤ 5 meters |
| Network | Quad-band GSM 850/900/1800/1900 MHz |
| Backup Battery | 100 mAh |
| Operating Temperature | -20°C to +60°C |
| Platform Support | Android, iOS, Web Platform |
| GPS Chipset | MT2503 |
| GPS Sensitivity | -145 dBm |
| Tracking Sensitivity | -160 dBm |
| Hot Start | < 5 seconds (open sky) |
| Warm Start | < 15 seconds |
| Cold Start | < 32 seconds (open sky) |
| Antenna Type | Internal GSM & GPS Antenna |
Key features
- Plug & Play OBD-II installation (no wiring required)
- Real-time GPS tracking with frequent updates
- Route history and trace playback
- Geofencing alerts (entry/exit notifications)
- Overspeed alerts
- Ignition ON/OFF alerts
- Mileage and trip reporting
- Compact and discreet design
- Built-in GSM and GPS antennas
- Remote monitoring via mobile app and web platform
