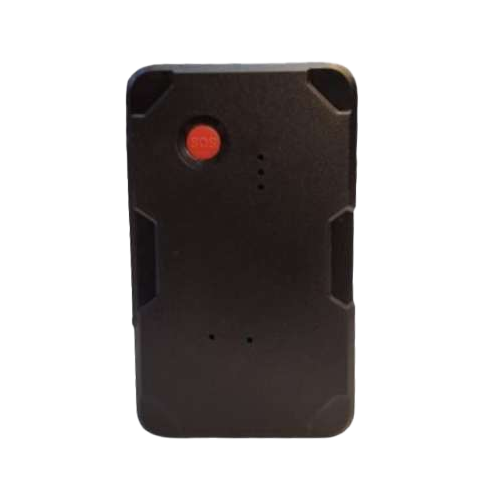

PT30- 3000-MAH.png
WIRELESS ASSET TRACKER SKU PT30

PT30 3000mAh 4G Wireless GPS Asset Tracker for Fleet

PT30 is a magnetic real-time GPS tracker with quad-band GSM support, long standby capability, and intelligent power-saving modes for reliable vehicle and asset tracking.

Real-time monitoring
Fleet safety
Cloud dashboard
GPS tracking
Request demo Download datasheet
9,00,000+
Devices sending data via our platform since 2014
7,000+
Paying customers with live vehicles and assets since 2014
118+
Indian cities with active customers since 2014
12+
Years in industry
Overview

About PT30 3000mAh 4G Wireless GPS Asset Tracker for Fleet

The PT30 Magnetic GPS Tracker is a compact and powerful tracking device designed for real-time vehicle and asset monitoring. Equipped with quad-band GSM and GPRS Class 12 connectivity, it ensures stable communication across global networks. The device features a built-in 3000mAh rechargeable battery and strong magnetic mounting for easy installation. It supports smart tracking modes, vibration alerts, overspeed alerts, and sleep standby functionality for extended battery life. With precise GPS positioning accuracy of up to 10 meters, PT30 is suitable for fleet management, asset protection, and vehicle security applications.

  • Live GPS location tracking with data upload to platform server
  • Playback historical tracking data
  • Triggers alert when vehicle exceeds preset speed
  • Detects movement or vibration
  • Enters sleep mode when parked for more than 3 minutes

Key highlights

Live GPS location tracking with data upload to p...
Playback historical tracking data
Triggers alert when vehicle exceeds preset speed
Detects movement or vibration
Enters sleep mode when parked for more than 3 mi...

Need help choosing?

Talk to our product specialists for fitment, pricing, and rollout planning.

Talk to an expert

Downloads

PT30 4G Tracker Communication Protocol_v1.8 PT30 USER MANUAL
Features

Product features

Evaluate these capabilities against your route profile, risk controls, and team workflows.

  • Live GPS location tracking with data upload to platform server
  • Playback historical tracking data
  • Triggers alert when vehicle exceeds preset speed
  • Detects movement or vibration
  • Enters sleep mode when parked for more than 3 minutes
  • Uploads GPS data at defined intervals and heartbeat packets
  • Wakes up at preset intervals, uploads data for 3 minutes, then sleeps
  • Red (Power), Yellow (GSM), Blue (GPS)
  • Supports status inquiry, factory reset, and location inquiry via SMS command
Specifications

Technical specifications

Use this table for compatibility checks, deployment planning, and integration review.

Model PT30
Network Type GSM Quad Band
GSM Frequency 850/900/1800/1900 MHz
GPRS Class 12, TCP/IP
Working Voltage 9V - 100V DC
Working Current (12V) ≈22mA
Working Current (24V) ≈12mA
Battery Capacity 3000mAh Rechargeable
GPS Accuracy 10m (2D RM)
Cold Start Time ≈38 seconds (Open sky)
Warm Start Time ≈32 seconds
Hot Start Time ≈2 seconds (Open sky)
Operating Temperature -20°C to +70°C
Operating Humidity 20% - 80% RH
Mounting Type Magnetic
Positioning System GPS
Data Transmission GPRS via TCP/IP
Sleep Function Automatic sleep when stationary
Heartbeat Upload Configurable interval
Command Examples - Smart Mode MODE1,60,180#
Command Examples - Power Save Mode MODE2,30#
Command Examples - Status Inquiry CXZT
Command Examples - Factory Reset FORMAT
Command Examples - Position Inquiry URL#
Features

Key features

  • Live GPS location tracking with data upload to platform server
  • Playback historical tracking data
  • Triggers alert when vehicle exceeds preset speed
  • Detects movement or vibration
  • Enters sleep mode when parked for more than 3 minutes
  • Uploads GPS data at defined intervals and heartbeat packets
  • Wakes up at preset intervals, uploads data for 3 minutes, then sleeps
  • Red (Power), Yellow (GSM), Blue (GPS)
  • Supports status inquiry, factory reset, and location inquiry via SMS command
Resources

Downloads & documentation

PT30 4G Tracker Communication Protocol_v1.8 PDF download
PT30 USER MANUAL PDF download
FAQ

Frequently asked questions

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.
A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.
PT30 3000mAh 4G Wireless GPS Asset Tracker for Fleet can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.
PT30 3000mAh 4G Wireless GPS Asset Tracker for Fleet is a battery-powered GPS tracker for assets that don't have a power source—generators, trailers, construction equipment, containers. No wiring required; place and track via our platform.
Battery life depends on reporting frequency and motion. Typical range is 3–12 months. Configure update intervals to balance battery life and tracking accuracy. Low-battery alerts notify before replacement.
Track generators, trailers, shipping containers, construction equipment, two-wheelers, and any movable asset. Ideal for rental companies, logistics, and businesses with unattended assets.
Yes. Get alerts when the asset moves, leaves a geofence, or is tampered with. Motion-based tracking can increase update frequency when moving and reduce it when stationary to save battery.
Pricing includes hardware and connectivity. Contact Pictor for a quote. We offer competitive rates for single units and volume discounts for fleet deployments.
Yes. PT30 3000mAh 4G Wireless GPS Asset Tracker for Fleet is built for rugged conditions—dust, moisture, and temperature extremes. IP-rated enclosures protect the unit. Suitable for construction sites, ports, and industrial environments.
Yes. Set geofences for yards, sites, or depots. Receive alerts when assets enter or leave. Useful for theft prevention and asset utilisation monitoring.
PT30- 3000-MAH.png

Ready to upgrade your fleet safety?

Get a scoped quote, schedule a demo, and validate rollout fit with our product team.

Request demo
Explore

Related products

More models you may want to compare.

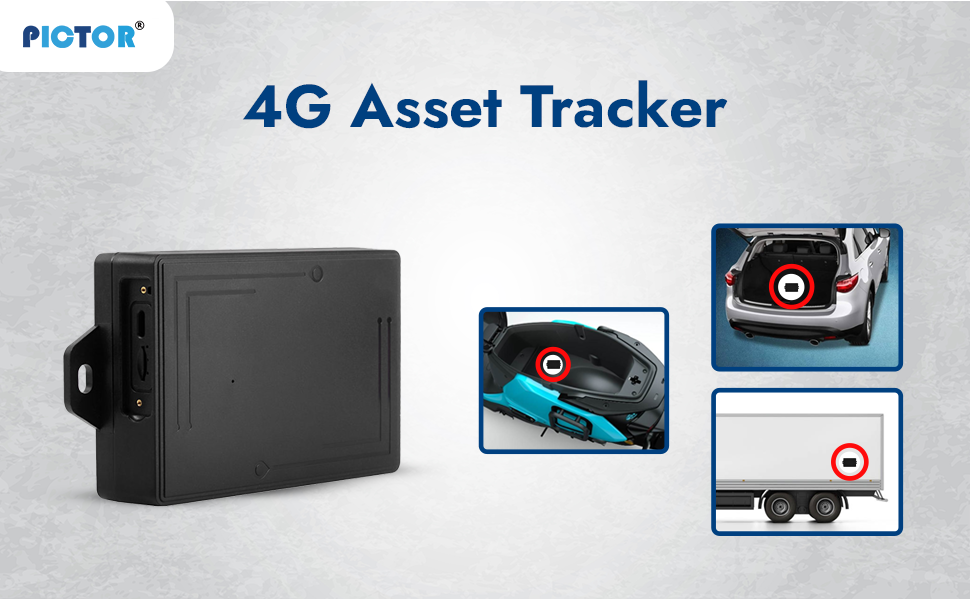

45G 10000mAh 4G Long Battery Wireless Asset Tracker for Fleet

45G 10000mAh 4G Long Battery Wireless Asset Tracker for Fleet

45 G is a rechargeable magnetic Asset GPS Tracker with 10000mAh battery capacity, supporting 2G/4G LTE networks, real-time tracking, anti-re...

View product

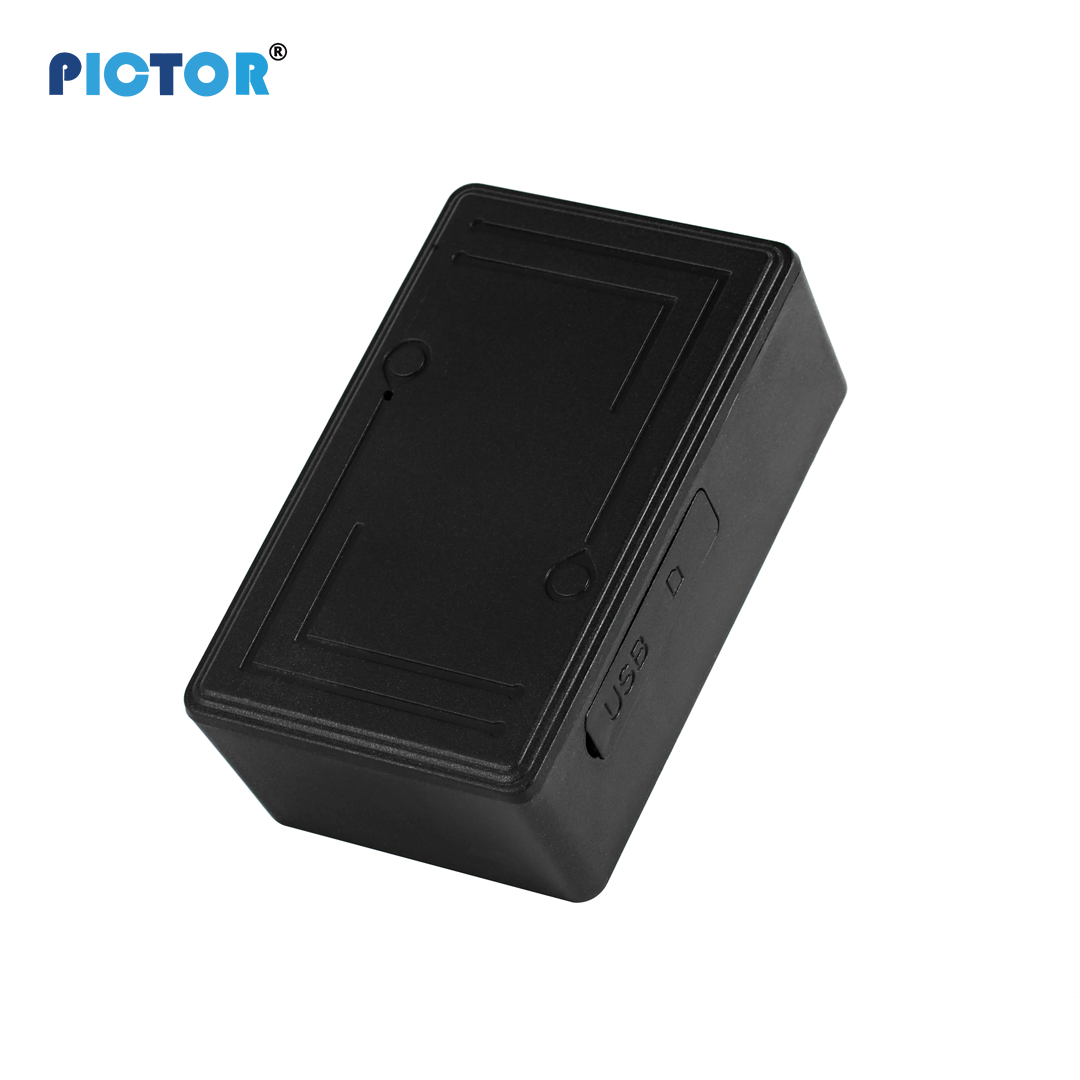

G57 3000mAh 4G Wireless Asset Tracker for Logistics & Fleet

G57 3000mAh 4G Wireless Asset Tracker for Logistics & Fleet

Compact magnetic 2G GPS asset tracker with 3000mAh battery, real-time tracking, geo-fence alerts, and remote voice monitoring support.

View product

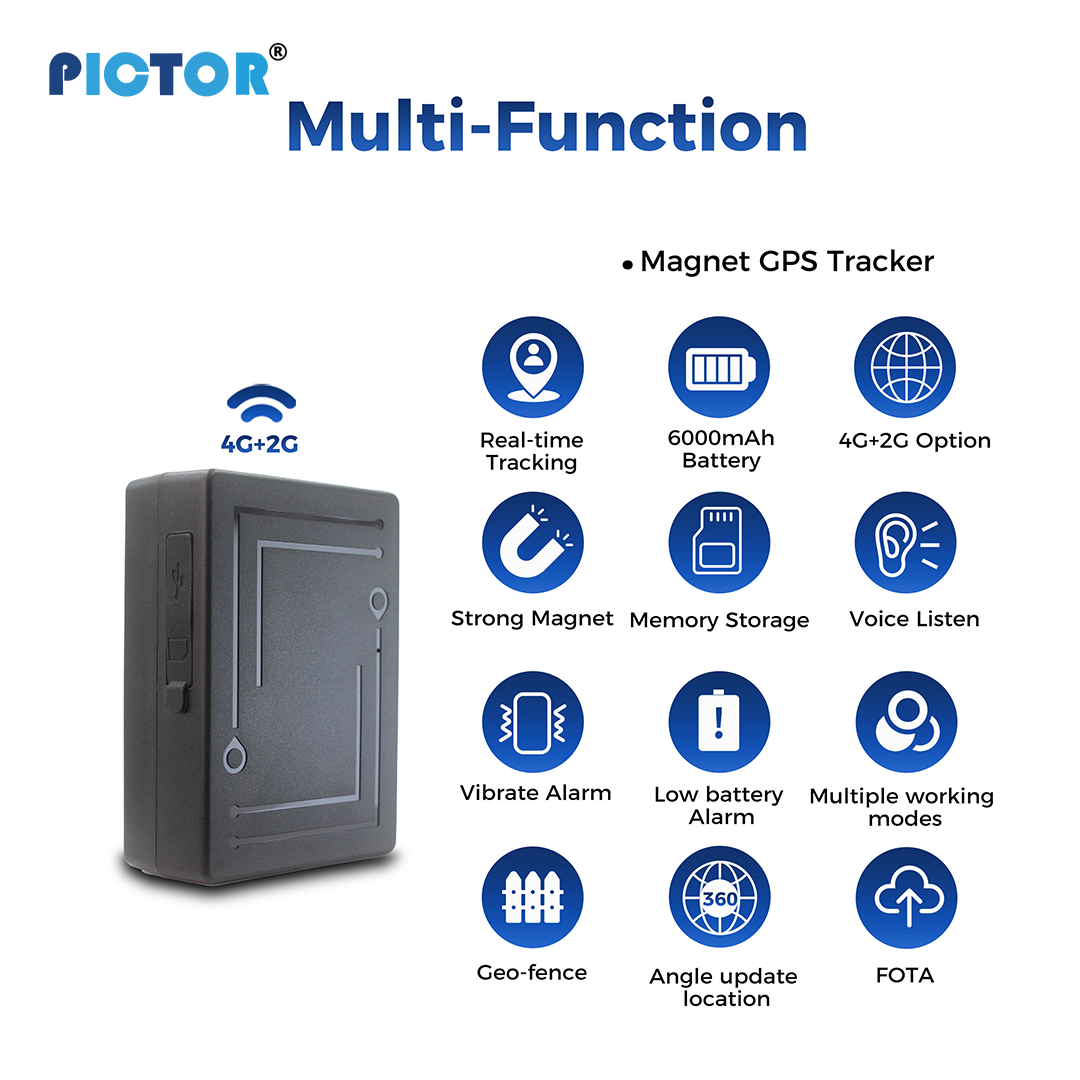

G5A 6000Mah — G5A
