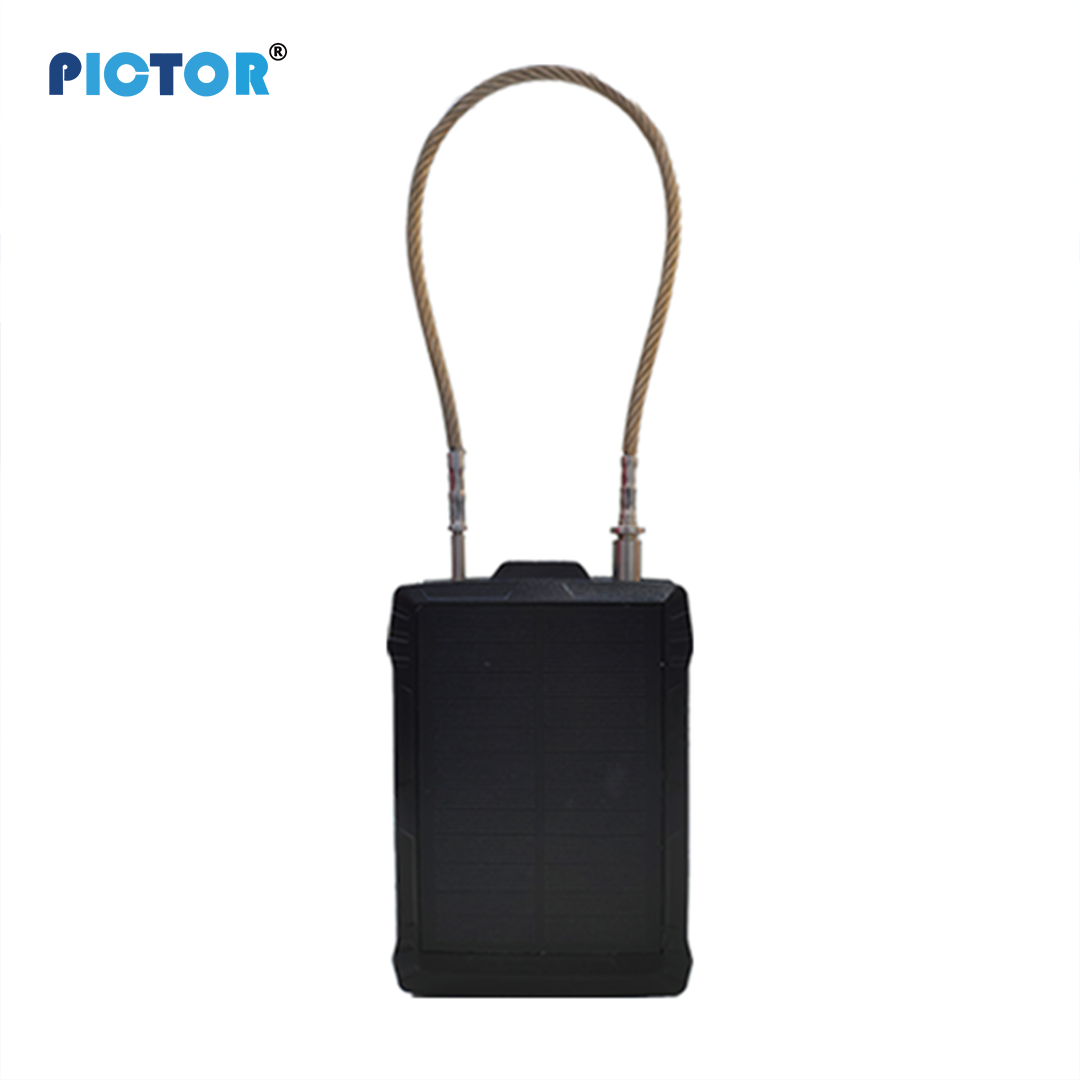

PL620S Smart Electronic Lock (4G GPS E-Lock)

PL620S is a 4G-enabled smart electronic GPS lock designed for real-time tracking and remote access control of containers and high-value assets. It features dual-SIM support, GNSS positioning (GPS + Beidou + GLONASS), RFID authentication, an...

Get a quote Request demo

Sales 1800 123 2632

Need specs or bulk pricing? Contact our team — we usually respond within one business day.

pictor — product

SKU PL620S

Why operators choose us

Proven deployment and support

From specs to installation, we help teams launch faster with fewer surprises.

9,00,000+

Devices sending data via our platform since 2014.

7,000+

Paying customers with live vehicles and assets since 2014.

118+

Indian cities with active customers since 2014.

12+ years

Commercial fleet deployments operating since 2014.

SKU: PL620S E-Locks

How to evaluate this product

Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.

Compare options See related solutions Explore technology stack

Key Highlights

4G LTE Cat-1 industrial IoT module
2G fallback support
GNSS positioning (GPS + Beidou + GLONASS)
Dual Micro-SIM (single standby)
TCP and SMS communication modes

Request Pricing & Demo

Downloads

PL620S Elock User Manual PL620S User Protocol

Specifications

Technical Specifications

Use this table for compatibility checks, deployment planning, and integration review.

Parameter	Value
dimensions_mm - length	195
dimensions_mm - width	114
dimensions_mm - height	37
weight_g	833
material	Engineering plastic
battery_capacity_mAh	10400
waterproof_rating	IP67
working_temperature	-20°C to +80°C
storage_temperature	-40°C to +80°C
humidity_range	5%–99%
average_working_current	<65mA
standby_current	<100uA
charging_specification	DC 5V / 2A (5521 interface)
memory	16MB
motion_sensor	3D acceleration sensor
antenna	Built-in GSM and GPS antenna
cellular_module - type	4G LTE Cat-1 industrial IoT module
cellular_module - gsm_module	Quectel M25, EC200 series, EC25 series
cellular_module - transmission_mode	TCP (cellular network), SMS
gnss_module - chipset	AT6558R
gnss_module - system	GPS, Beidou, GLONASS
gnss_module - channels	32
gnss_module - cold_start_time	≤32s
gnss_module - hot_start_time	≤1s
gnss_module - tracking_sensitivity	-165dBm
gnss_module - cold_start_sensitivity	-148dBm
gnss_module - position_accuracy	<2.5m (CEP50)
working_duration - 2G_continuous_operation_hours	160
working_duration - 4G_real_time_mode_hours	140
led_indicators - gsm	Red LED - Cellular network status
led_indicators - gps	Green LED - GPS fix status
led_indicators - low_battery	Yellow LED
led_indicators - charging	Red/Green LED

Features

Product Features

Features listed here should be evaluated against your route profile, risk controls, and team workflows.

#	Feature
1	4G LTE Cat-1 industrial IoT module
2	2G fallback support
3	GNSS positioning (GPS + Beidou + GLONASS)
4	Dual Micro-SIM (single standby)
5	TCP and SMS communication modes
6	Remote unlock via SMS
7	Unlock via web platform
8	Unlock via authorized RFID key
9	Supports up to 50 authorized RFID keys
10	Supports 5 authorized phone numbers
11	Automatic locking mechanism
12	Lock and unlock operation reports
13	Hard lock hook tamper alert
14	Unauthorized RFID swipe alert
15	Wrong password alert
16	Unlock notification
17	Vibration alert
18	Geo-fence entry alert
19	Geo-fence exit alert
20	Low battery alert
21	Back cover open alert
22	Motor fault alert
23	10400mAh rechargeable lithium battery
24	Solar charging support
25	IP67 waterproof rating
26	Stainless steel lock hook (200KG tensile resistance)
27	Strong magnetic mounting
28	3-axis acceleration sensor

Overview

About PL620S Smart Electronic Lock (4G GPS E-Lock)

The PL620S Smart Electronic Lock is an industrial-grade GPS tracking lock engineered for container and asset security monitoring. It integrates 4G LTE communication, multi-constellation GNSS positioning, motion detection, RFID authentication, and remote unlock capabilities. Users can unlock the device remotely via SMS password or web platform. In the absence of a cellular network, unlocking can be performed using authorized RFID keys. The device supports real-time tracking, tamper alerts, geofencing, and lock/unlock reports. With solar charging support, stainless steel lock hook, and IP67 waterproof protection, it ensures reliable performance in harsh environments.

FAQ

Frequently Asked Questions about PL620S Smart Electronic Lock (4G GPS E-Lock)

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.

A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.

PL620S Smart Electronic Lock (4G GPS E-Lock) can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.

PL620S Smart Electronic Lock (4G GPS E-Lock) is an electronic lock for shipping containers and cargo. It provides real-time tracking, door-open alerts, and tamper detection. Used by logistics companies and exporters for secure container monitoring across India and internationally.

PL620S Smart Electronic Lock (4G GPS E-Lock) locks the container door and sends instant alerts if the lock is tampered with or opened. GPS tracking shows container location. Fleet managers get real-time visibility for cargo security.

Yes. Our E-Locks work with global cellular networks for tracking across borders. Used for export-import, port-to-port, and inland logistics. Contact us for coverage and roaming options.

Battery life varies by model and usage—typically months to a year. Low-battery alerts notify before replacement. Some models support solar or external power for long-haul shipments.

E-Lock pricing includes hardware and connectivity. Contact Pictor for a quote. We offer solutions for logistics companies, exporters, and freight forwarders. Volume pricing for fleet deployments.

Yes. PL620S Smart Electronic Lock (4G GPS E-Lock) includes built-in GPS for live tracking. View container location on a map, get route history, and set geofences. Integrates with our fleet management platform.

Installation is done on the container door. Our technicians or trained partners can install at your yard or port. Setup is typically quick and can often be completed in a short yard or gate turnaround window. We provide installation guidelines and support.
