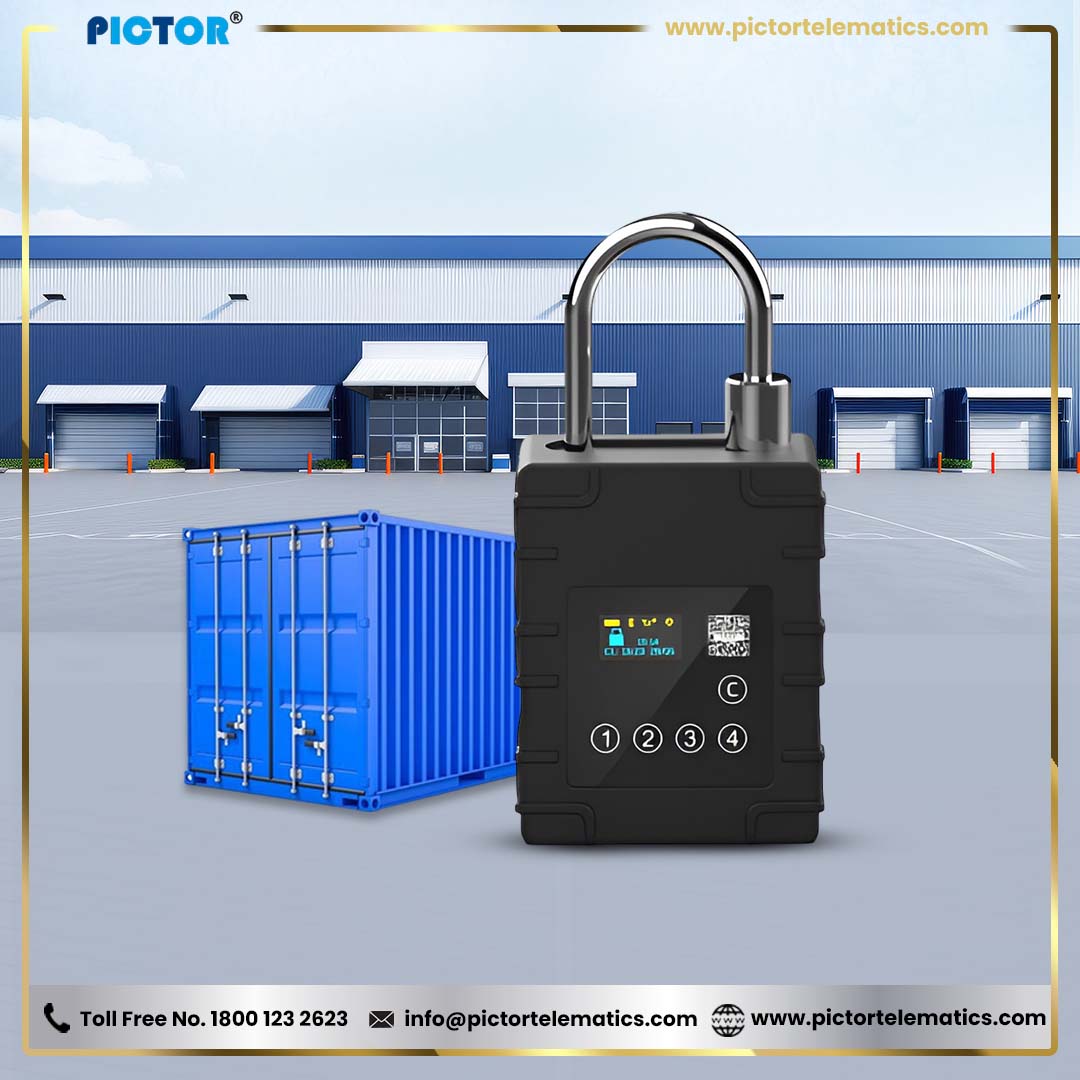

PICTOR T98 GPS Smart Lock

PICTOR T98 GPS Smart Lock is a heavy-duty intelligent electronic lock designed for transportation, logistics, oil & gas, security operations, private organizations, and government applications. It integrates a robust mechanical locking syst...

Get a quote Request demo

Sales 1800 123 2632

Need specs or bulk pricing? Contact our team — we usually respond within one business day.

pictor — product

SKU T98GPSSmartLock

Why operators choose us

Proven deployment and support

From specs to installation, we help teams launch faster with fewer surprises.

9,00,000+

Devices sending data via our platform since 2014.

7,000+

Paying customers with live vehicles and assets since 2014.

118+

Indian cities with active customers since 2014.

12+ years

Commercial fleet deployments operating since 2014.

SKU: T98GPSSmartLock E-Locks

How to evaluate this product

Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.

Compare options See related solutions Explore technology stack

Key Highlights

GPS real-time tracking
GSM / LTE communication

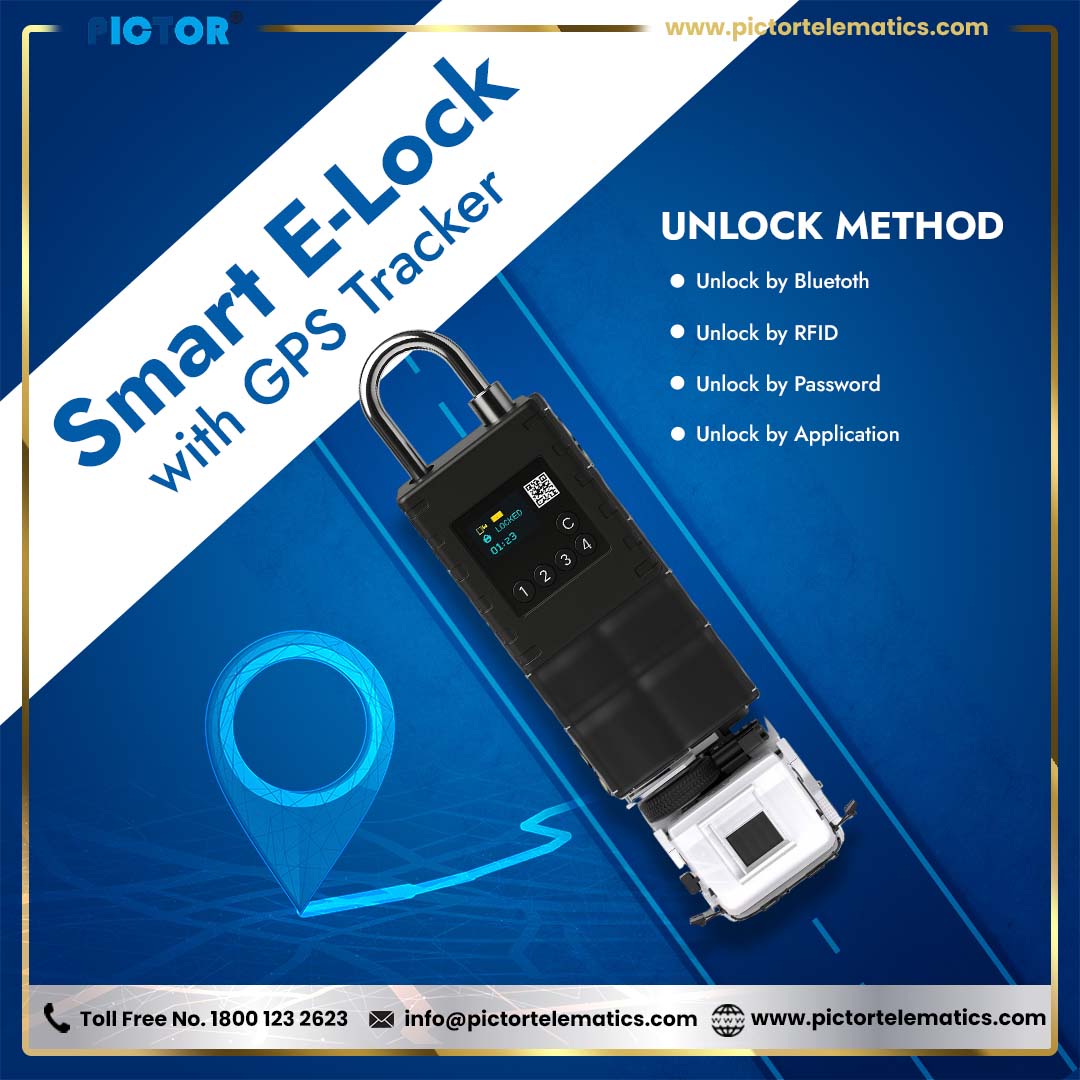

RFID unlock support
NFC unlock support
Bluetooth unlock support

Request Pricing & Demo

Downloads

T98 User Manual T98-E-LOCK Common Protocol V38 (S)-231122 (1) T98-E-LOCK

Specifications

Technical Specifications

Use this table for compatibility checks, deployment planning, and integration review.

Parameter	Value
device_type	GPS Smart Padlock
unlock_methods	Cellular, RFID, NFC, Bluetooth, SMS, Web Platform
display	OLED Screen
communication	GSM, LTE, LoRa, Bluetooth
platform	HHDLINK IoT Web Platform
battery	Built-in high-capacity rechargeable battery
sim_card_support	1
time_report_interval	Configurable
alarm_notifications	Real-time alerts
operating_mode	Fixed wake-up mode (power saving)
environment	Outdoor operation
network - connectivity	GSM, LTE
network - server_configuration	IP address or domain with configurable TCP port
network - apn_configuration	Supported
network - tcp_protocol	1
positioning - gps_tracking	1
positioning - real_time_reporting	1
data_reporting - report_interval	Configurable
data_reporting - heartbeat_interval	Configurable
data_reporting - sleep_mode_condition	Activated when report interval exceeds 600 seconds
security - sms_password_protection	1
security - tamper_alarm	1
security - factory_reset	1
security - configuration_query_via_sms	1
sms_commands_supported	IP configuration, APN configuration, Lock command, Unlock command, Password change, Device information query
platform_functions	Real-time monitoring, Device management, Lock history tracking (time and location), Alarm monitoring

Features

Product Features

Features listed here should be evaluated against your route profile, risk controls, and team workflows.

#	Feature
1	GPS real-time tracking
2	GSM / LTE communication
3	RFID unlock support
4	NFC unlock support
5	Bluetooth unlock support
6	LoRa communication capability
7	Remote lock/unlock via app and web platform
8	OLED display with status indicators
9	Tamper detection alert
10	Automatic timed unlock scheduling
11	Built-in high-capacity rechargeable battery
12	SMS configuration and control
13	Fixed wake-up power saving mode
14	Open/close event logging with time and location

Overview

About PICTOR T98 GPS Smart Lock

PICTOR T98 is a high-security GPS-enabled smart lock that combines mechanical strength with IoT connectivity. The device supports GSM/LTE communication and multiple access technologies including RFID, NFC, Bluetooth, and LoRa. It connects with the HHDLINK IoT platform to provide real-time tracking, lock status monitoring, instant alerts, automatic timed unlocking, and historical data storage including time and location logs. The integrated OLED display shows battery level, network connectivity, positioning status, and tamper alerts. Its built-in rechargeable battery makes it ideal for field and mobile operations.

FAQ

Frequently Asked Questions about PICTOR T98 GPS Smart Lock

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.

A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.

PICTOR T98 GPS Smart Lock can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.

PICTOR T98 GPS Smart Lock is an electronic lock for shipping containers and cargo. It provides real-time tracking, door-open alerts, and tamper detection. Used by logistics companies and exporters for secure container monitoring across India and internationally.

PICTOR T98 GPS Smart Lock locks the container door and sends instant alerts if the lock is tampered with or opened. GPS tracking shows container location. Fleet managers get real-time visibility for cargo security.

Yes. Our E-Locks work with global cellular networks for tracking across borders. Used for export-import, port-to-port, and inland logistics. Contact us for coverage and roaming options.

Battery life varies by model and usage—typically months to a year. Low-battery alerts notify before replacement. Some models support solar or external power for long-haul shipments.

E-Lock pricing includes hardware and connectivity. Contact Pictor for a quote. We offer solutions for logistics companies, exporters, and freight forwarders. Volume pricing for fleet deployments.

Yes. PICTOR T98 GPS Smart Lock includes built-in GPS for live tracking. View container location on a map, get route history, and set geofences. Integrates with our fleet management platform.

Installation is done on the container door. Our technicians or trained partners can install at your yard or port. Setup is typically quick and can often be completed in a short yard or gate turnaround window. We provide installation guidelines and support.
