Product Wireless Asset Tracker

45 G 2G/4G Asset GPS Tracker 10000mAh

45 G is a rechargeable magnetic Asset GPS Tracker with 10000mAh battery capacity, supporting 2G/4G LTE networks, real-time tracking, anti-removal alarm, geo-fencing, and long standby operation up to 90 days.

Get a quote Request demo

Sales 1800 123 2632

Need specs or bulk pricing? Contact our team — we usually respond within one business day.

pictor — product

SKU 45 G

Why operators choose us

Proven deployment and support

From specs to installation, we help teams launch faster with fewer surprises.

9,00,000+

Devices sending data via our platform since 2014.

7,000+

Paying customers with live vehicles and assets since 2014.

118+

Indian cities with active customers since 2014.

12+ years

Commercial fleet deployments operating since 2014.

SKU: 45 G Wireless Asset Tracker

How to evaluate this product

Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.

Compare options See related solutions Explore technology stack

Key Highlights

2G GSM (850/900/1800/1900 MHz) / 4G LTE (FDD & TDD Bands)

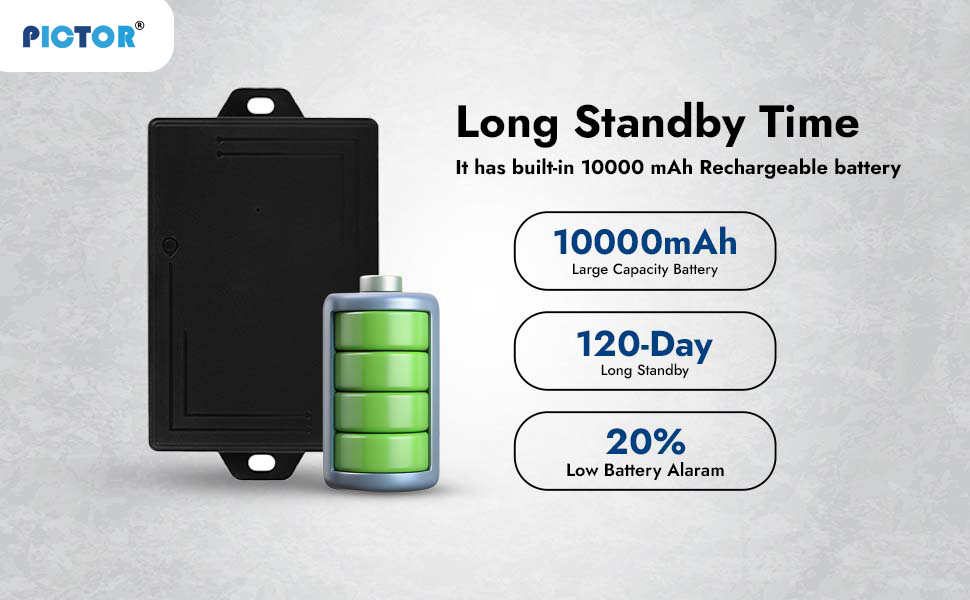

10000mAh high-capacity rechargeable lithium battery
Supported
<10 meters
L1, 1575.42 MHz C/A code

Request Pricing & Demo

Downloads

45 G Serials Communicate Protocol A G57 G5A 45 G User Manual (1)

Specifications

Technical Specifications

Use this table for compatibility checks, deployment planning, and integration review.

Parameter	Value
Model	45 G
Network	2G GSM / 4G LTE Cat 1
Battery Capacity	10000mAh Rechargeable Lithium Battery
Dimensions	152 x 83 x 35 mm
Standby Time	1–90 days (depending on activity and mode)
Charging Voltage	5V DC
Working Current	100uA – 100mA
Operating Temperature	-20°C to +70°C
Antenna	Built-in quad band GSM antenna & GPS ceramic antenna
Memory	32 + 32 Mb
2G GSM Frequency	850/900/1800/1900 MHz
4G LTE Bands (Latin-US Version)	LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66; LTE-TDD B34/B38/B39/B40/B41
4G LTE Bands (Asia Version)	LTE-FDD B1/B3/B5/B8; LTE-TDD B34/B38/B39/B40/B41
GPRS	Class 12, TCP/IP
Chipset (2G Version)	MTK6261 (GSM) + AT6558R (GPS)
Chipset (4G Version)	SIMCom LTE Cat 1 A7670 Series + AT6558R (GPS)
Location Accuracy	<10 meters
Phase Error	RMSPE <5, PPE <20
Max Output Power	GSM850/900: 33±3dBm; GSM1800/1900: 30±3dBm
Frequency Error	±0.1 ppm
Receive Sensitivity	Class II RBER 2% (-102 dBm)
GPS Channels	66
Light Indicators - Green (GSM)	Constant On = Normal, Flashing = Abnormal
Light Indicators - Blue (GPS)	Constant On = Normal, Flashing = Abnormal
Light Indicators - Red (Power)	Constant On = Charging, Off = Fully Charged

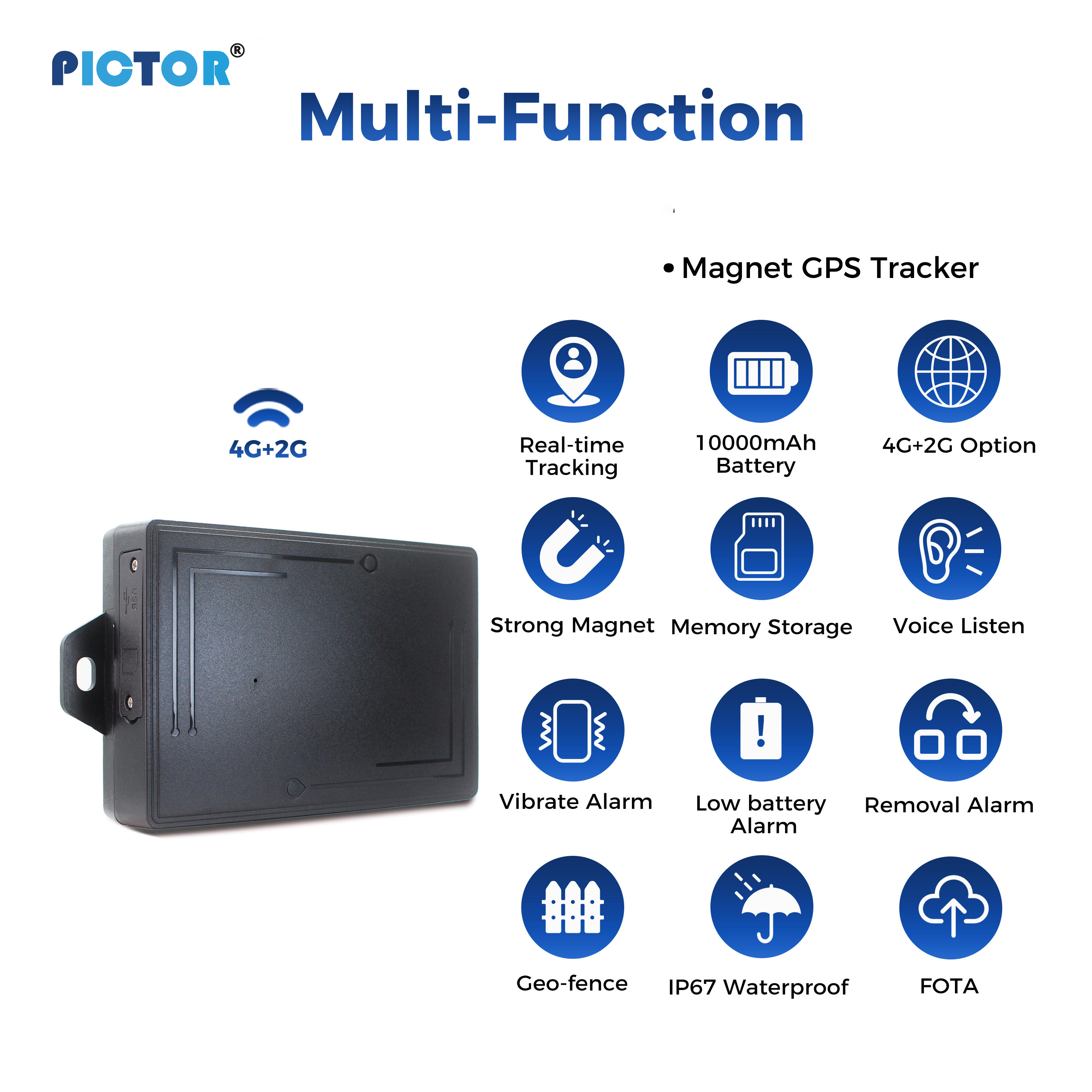

Features

Product Features

Features listed here should be evaluated against your route profile, risk controls, and team workflows.

#	Feature
1	2G GSM (850/900/1800/1900 MHz) / 4G LTE (FDD & TDD Bands)
2	10000mAh high-capacity rechargeable lithium battery
3	Supported
4	<10 meters
5	L1, 1575.42 MHz C/A code
6	-165 dBm
7	-148 dBm
8	≤1 second
9	≤32 seconds
10	Real-time Mode / Power Saving Mode / Clock Mode / Interval Mode / Deep Sleep Mode
11	Geo-fence, Low Battery, Vibration, Fall-off Alarm
12	Remote one-way voice listen supported

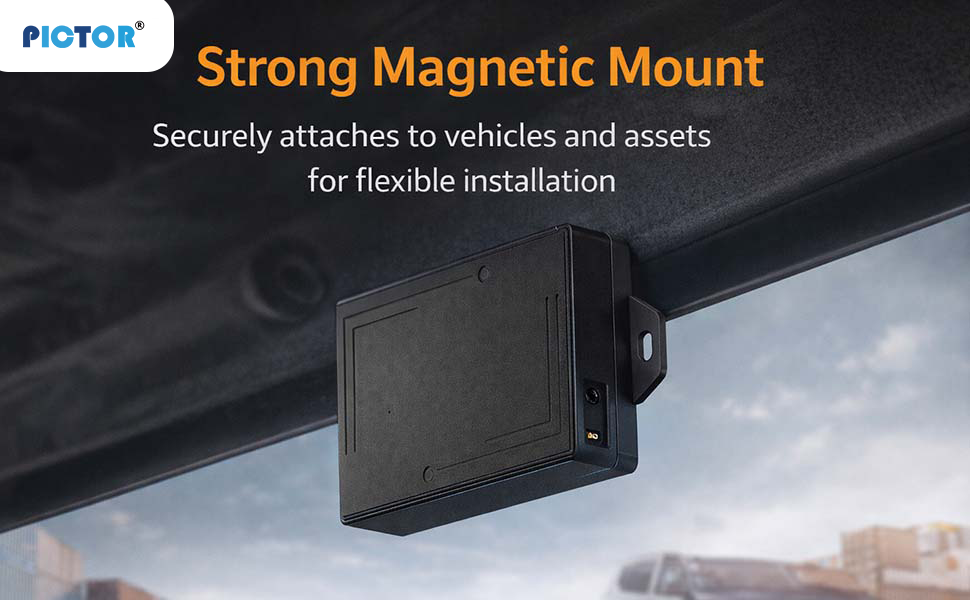

13	Strong magnetic base for hidden placement

Overview

About 45 G 2G/4G Asset GPS Tracker 10000mAh

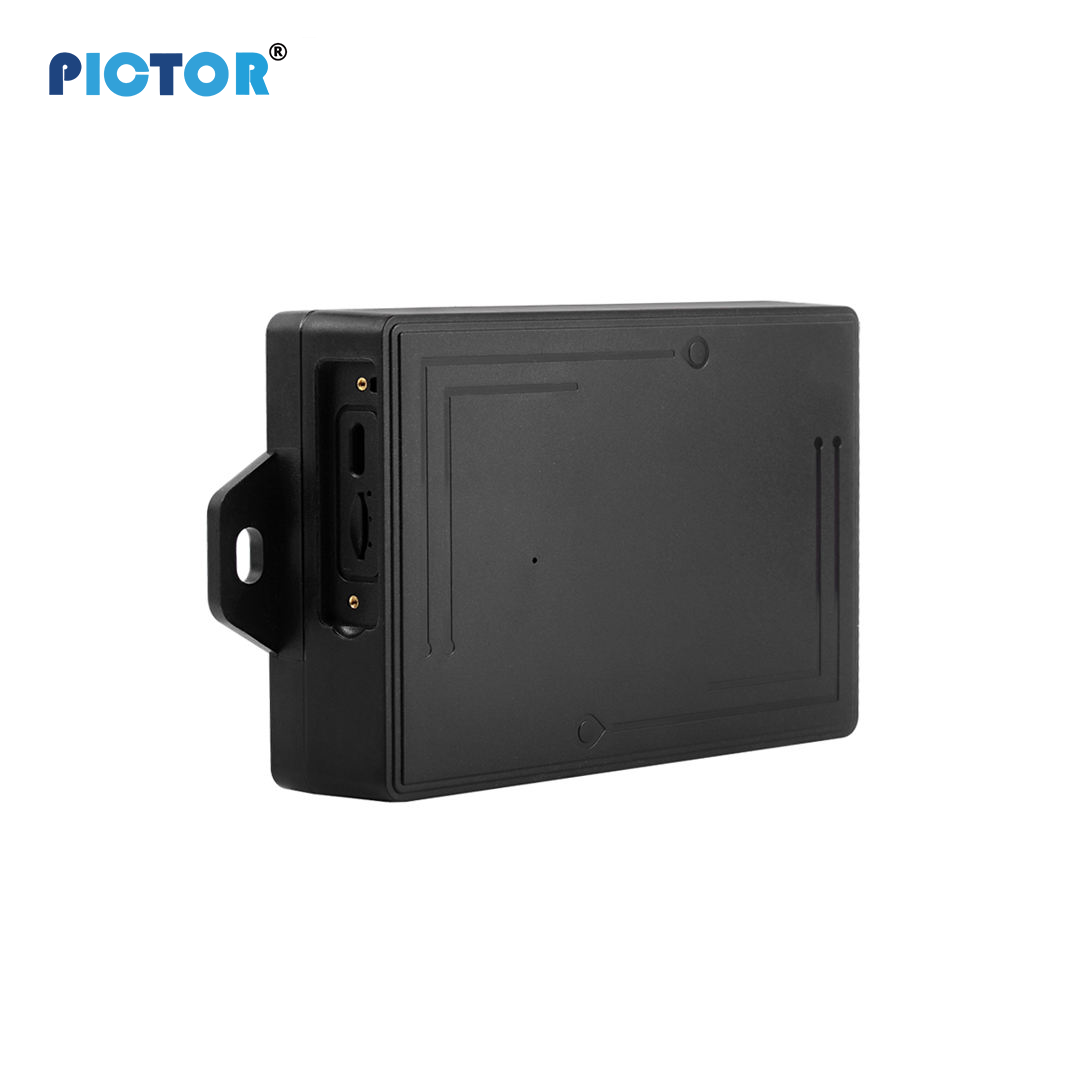

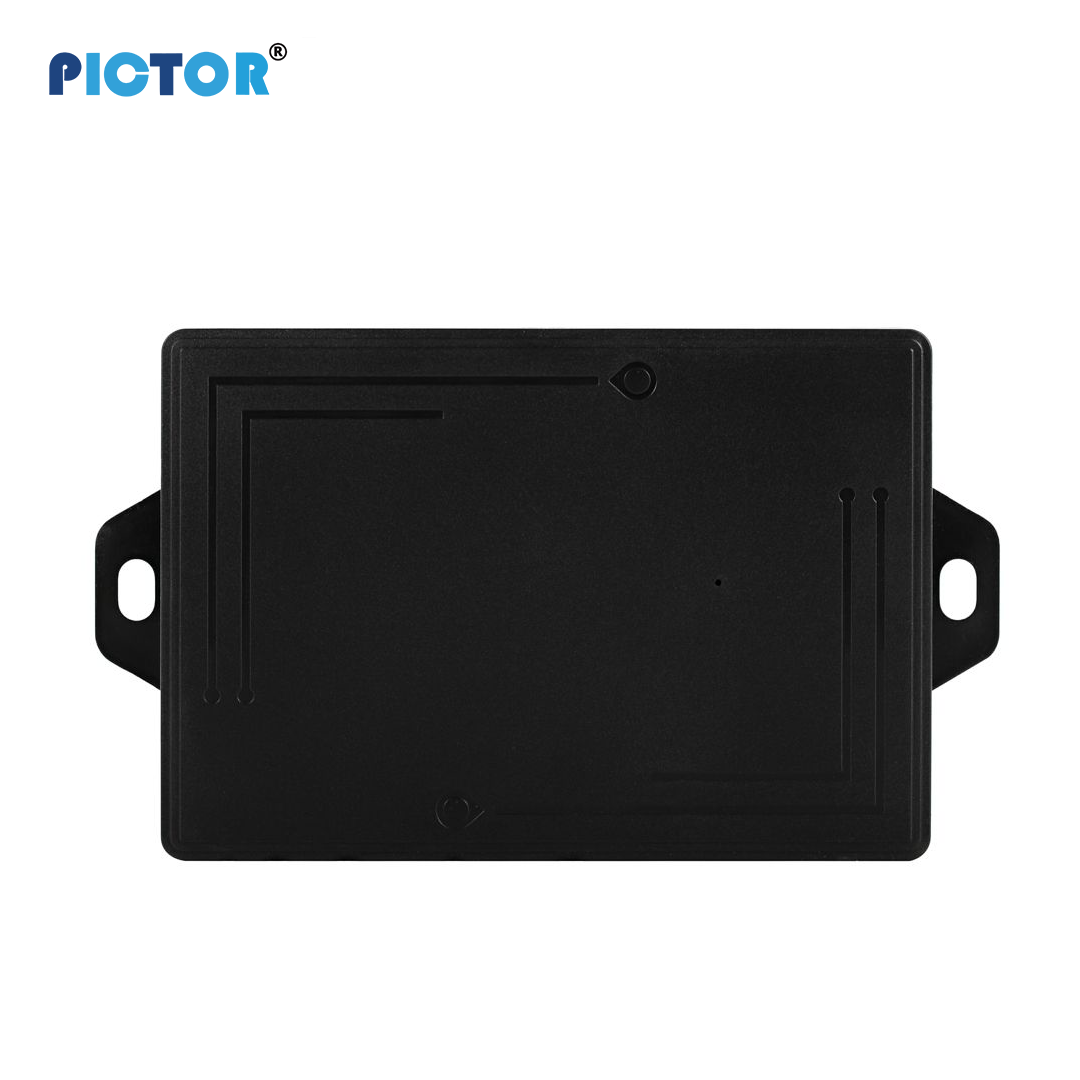

The 45 G Asset GPS Tracker is a wireless, rechargeable tracking device designed for long-term asset and vehicle monitoring. Equipped with a high-capacity 10000mAh lithium battery and strong built-in magnets, it can be discreetly installed on vehicles, containers, or valuable assets. The device supports both 2G GSM and 4G LTE Cat 1 networks, ensuring stable communication across regions. It provides real-time tracking, power-saving modes, deep sleep mode, geo-fencing alerts, vibration alerts, low battery notifications, and anti-removal alarms. A built-in microphone enables remote one-way voice monitoring. The tracker uploads GPS data automatically based on movement or preset intervals through an online platform or mobile app.

FAQ

Frequently Asked Questions about 45 G 2G/4G Asset GPS Tracker 10000mAh

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.

A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.

45 G 2G/4G Asset GPS Tracker 10000mAh can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.

45 G 2G/4G Asset GPS Tracker 10000mAh is a battery-powered GPS tracker for assets that don't have a power source—generators, trailers, construction equipment, containers. No wiring required; place and track via our platform.

Battery life depends on reporting frequency and motion. Typical range is 3–12 months. Configure update intervals to balance battery life and tracking accuracy. Low-battery alerts notify before replacement.

Track generators, trailers, shipping containers, construction equipment, two-wheelers, and any movable asset. Ideal for rental companies, logistics, and businesses with unattended assets.

Yes. Get alerts when the asset moves, leaves a geofence, or is tampered with. Motion-based tracking can increase update frequency when moving and reduce it when stationary to save battery.

Pricing includes hardware and connectivity. Contact Pictor for a quote. We offer competitive rates for single units and volume discounts for fleet deployments.

Yes. 45 G 2G/4G Asset GPS Tracker 10000mAh is built for rugged conditions—dust, moisture, and temperature extremes. IP-rated enclosures protect the unit. Suitable for construction sites, ports, and industrial environments.

Yes. Set geofences for yards, sites, or depots. Receive alerts when assets enter or leave. Useful for theft prevention and asset utilisation monitoring.

Next Step

Ready to evaluate 45 G 2G/4G Asset GPS Tracker 10000mAh for your fleet?

Get a scoped quote, schedule a demo, and validate rollout fit, installation assumptions, and support model.

Request Consultation
