Product Wireless Asset Tracker

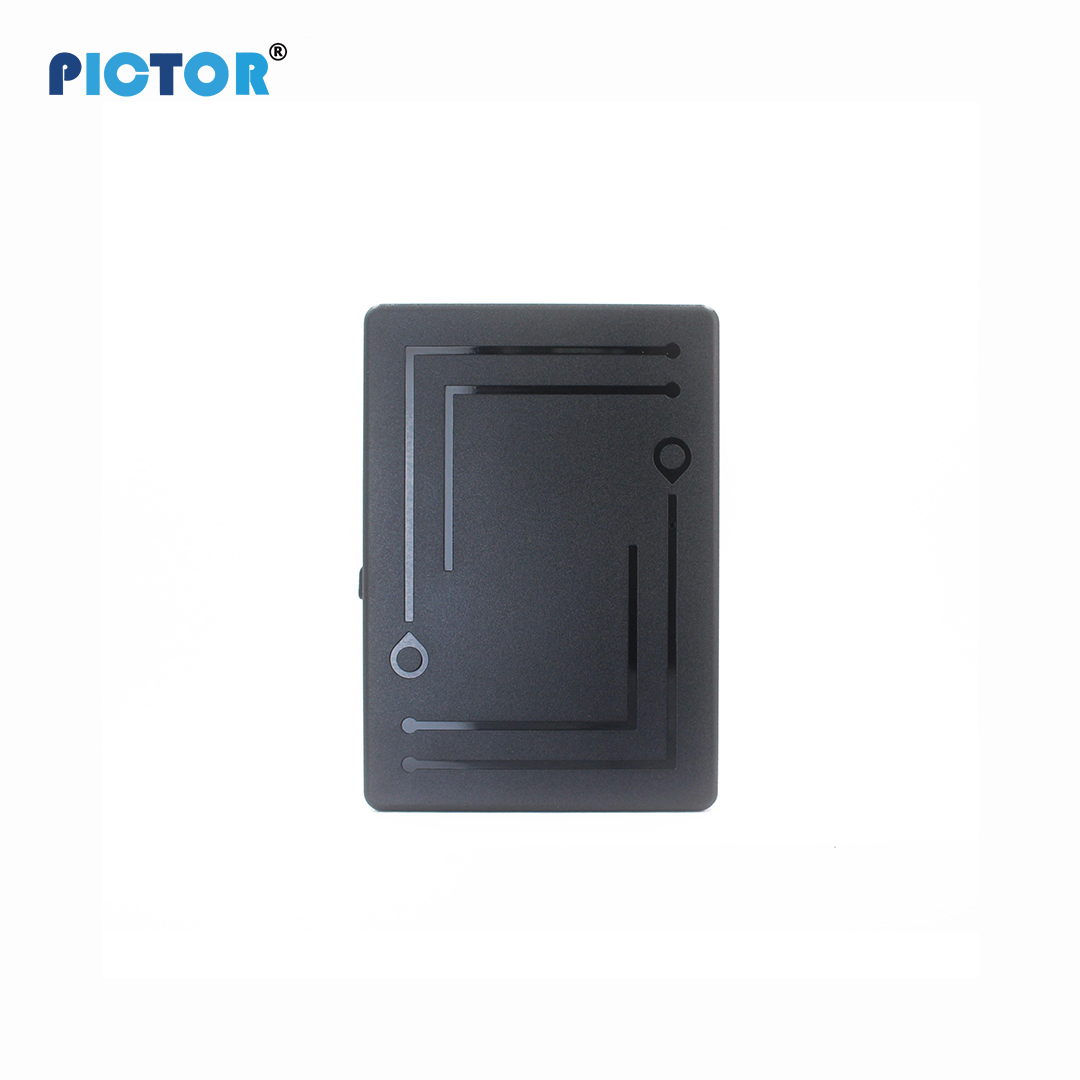

G5A 6000mAh Asset GPS Tracker

G5A 6000mAh is a rechargeable magnetic asset GPS tracker supporting 2G/4G network with real-time tracking, geo-fence alerts, and long standby battery backup.

Get a quote Request demo

Sales 1800 123 2632

Need specs or bulk pricing? Contact our team — we usually respond within one business day.

pictor — product

SKU G5A

Why operators choose us

Proven deployment and support

From specs to installation, we help teams launch faster with fewer surprises.

9,00,000+

Devices sending data via our platform since 2014.

7,000+

Paying customers with live vehicles and assets since 2014.

118+

Indian cities with active customers since 2014.

12+ years

Commercial fleet deployments operating since 2014.

SKU: G5A Wireless Asset Tracker

G5A 6000mAh is a rechargeable magnetic asset GPS tracker supporting 2G/4G network with real-time tracking, geo-fence alerts, and long standby battery backup.

How to evaluate this product

Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.

Compare options See related solutions Explore technology stack

Key Highlights

2G GSM 850/900/1800/1900MHz; 4G LTE FDD & TDD bands (region specific)
Real-time mode, Power-saving mode, Clock mode, Interval mode
GPS + GSM positioning
<10 meters
-165dBm

Request Pricing & Demo

Downloads

A G57 G5A 45 G User Manual (1) G5A Serials Communicate Protocol

Specifications

Technical Specifications

Use this table for compatibility checks, deployment planning, and integration review.

Parameter	Value
Model	G5A
Dimensions	120 x 83 x 29 mm
Network	2G GSM / 4G LTE (region dependent)
Battery Capacity	6000mAh Rechargeable Lithium Battery
GPS Accuracy	< 10 meters
GPS Frequency	L1, 1575.42 MHz C/A code
Channels	66
Memory	32 + 32 Mb
Charging Voltage	5V DC
Working Current	100uA – 100mA
Operating Temperature	-20°C to +70°C
Standby Time	1–90 days depending on activity
2G Chipset	MTK6261 (GSM) + AT6558R (GPS)
4G Chipset	SIMCom LTE Cat 1 A7670 Series + AT6558R (GPS)
GPRS	Class 12, TCP/IP
Phase Error	RMSPE < 5, PPE < 20
Max Output Power	GSM850/900: 33±3dBm; GSM1800/1900: 30±3dBm
Max Frequency Error	±0.1ppm
Receive Sensitivity	Class II RBER2% (-102dBm)
Light Indicators - Green	GSM status (Constant ON normal, Flashing abnormal)
Light Indicators - Blue	GPS status (Constant ON normal, Flashing abnormal)
Light Indicators - Red	Power (ON charging, OFF fully charged)

Features

Product Features

Features listed here should be evaluated against your route profile, risk controls, and team workflows.

#	Feature
1	2G GSM 850/900/1800/1900MHz; 4G LTE FDD & TDD bands (region specific)
2	Real-time mode, Power-saving mode, Clock mode, Interval mode
3	GPS + GSM positioning
4	<10 meters
5	-165dBm
6	-148dBm
7	≤1 second
8	≤32 seconds
9	Built-in quad band GSM antenna and GPS ceramic antenna
10	Geo-fence alarm, Low battery alarm, Vibration alarm, Fall-off alarm
11	One-way remote voice listening via SIM call
12	Built-in strong magnet for concealed installation
13	Configurable via SMS commands
14	Online web platform & mobile APP tracking

Overview

About G5A 6000mAh Asset GPS Tracker

The G5A 6000mAh Asset GPS Tracker is a wireless, rechargeable tracking device designed for vehicle and asset monitoring. Equipped with built-in GSM and GPS antennas, it provides accurate real-time location tracking with less than 10 meters accuracy. The device supports multiple working modes including real-time, power-saving, clock, and interval modes. With strong magnetic mounting and compact design, it can be discreetly installed in vehicles or assets. It features geo-fence alerts, vibration alarms, low battery notifications, and remote voice monitoring via SIM-based communication. The long standby battery ensures extended operation depending on activity levels.

FAQ

Frequently Asked Questions about G5A 6000mAh Asset GPS Tracker

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.

A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.

G5A 6000mAh Asset GPS Tracker can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.

G5A 6000mAh Asset GPS Tracker is a battery-powered GPS tracker for assets that don't have a power source—generators, trailers, construction equipment, containers. No wiring required; place and track via our platform.

Battery life depends on reporting frequency and motion. Typical range is 3–12 months. Configure update intervals to balance battery life and tracking accuracy. Low-battery alerts notify before replacement.

Track generators, trailers, shipping containers, construction equipment, two-wheelers, and any movable asset. Ideal for rental companies, logistics, and businesses with unattended assets.

Yes. Get alerts when the asset moves, leaves a geofence, or is tampered with. Motion-based tracking can increase update frequency when moving and reduce it when stationary to save battery.

Pricing includes hardware and connectivity. Contact Pictor for a quote. We offer competitive rates for single units and volume discounts for fleet deployments.

Yes. G5A 6000mAh Asset GPS Tracker is built for rugged conditions—dust, moisture, and temperature extremes. IP-rated enclosures protect the unit. Suitable for construction sites, ports, and industrial environments.

Yes. Set geofences for yards, sites, or depots. Receive alerts when assets enter or leave. Useful for theft prevention and asset utilisation monitoring.

Next Step

Ready to evaluate G5A 6000mAh Asset GPS Tracker for your fleet?

Get a scoped quote, schedule a demo, and validate rollout fit, installation assumptions, and support model.

Request Consultation
