GPS Telematics Pro
Product Wireless Asset Tracker

GS300 Asset GPS Tracker

GS300 is a 4G wireless asset GPS tracker with a built-in 7800mAh battery, designed for long-term real-time tracking with IP68 waterproof protection.

Get a quote Request demo
Sales 1800 123 2632

Need specs or bulk pricing? Contact our team — we usually respond within one business day.

pictor — product
SKU GS300

Why operators choose us

Proven deployment and support

From specs to installation, we help teams launch faster with fewer surprises.

9,00,000+
Devices sending data via our platform since 2014.
7,000+
Paying customers with live vehicles and assets since 2014.
118+
Indian cities with active customers since 2014.
12+ years
Commercial fleet deployments operating since 2014.
SKU: GS300 Wireless Asset Tracker

GS300 is a 4G wireless asset GPS tracker with a built-in 7800mAh battery, designed for long-term real-time tracking with IP68 waterproof protection.

How to evaluate this product

Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.

Compare options See related solutions Explore technology stack

Key Highlights

  • 4G LTE network with Nano SIM support
  • Multi-constellation GNSS (GPS/BDS/GLONASS) with ≤5m accuracy
  • 7800mAh built-in battery for super long standby
  • Up to 4 years (positioning once per day)
  • IP68 certified
Request Pricing & Demo

Downloads

GS300 Datasheet GS300 Flyer GS300 Manual
Specifications

Technical Specifications

Use this table for compatibility checks, deployment planning, and integration review.

Parameter Value
Network 4G LTE
SIM Card Nano SIM
Battery Capacity 7800mAh (Non-rechargeable)
Positioning System GPS + BDS + GLONASS
Positioning Accuracy ≤5 meters
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Humidity 10% - 85% RH (non-condensing)
Dimensions 138mm × 72mm × 22mm
Weight 205g
Protection Level IP68 Waterproof
Shell Material ABS
Working Voltage 3.0V - 3.8V
Sleep Current 88μA (<70μA per flyer spec)
Positioning Module Quectel L76K
Channel 32 Channels
GPS Sensitivity -147 dBm
Tracking Sensitivity -162 dBm
Cold Start Time Average 35 seconds
Hot Start Time Average 1 second
LTE Antenna FPC Antenna
GPS Antenna Built-in Ceramic Antenna (18mm × 18mm × 4mm)
External Interfaces 1 Built-in switch, 1 USB debugging interface, 1 Light sensor
LED Indicators Blue (GPS), Green (Network), Red (Power)
Features

Product Features

Features listed here should be evaluated against your route profile, risk controls, and team workflows.

# Feature
1 4G LTE network with Nano SIM support
2 Multi-constellation GNSS (GPS/BDS/GLONASS) with ≤5m accuracy
3 7800mAh built-in battery for super long standby
4 Up to 4 years (positioning once per day)
5 IP68 certified
6 Light sensor alarm, disassemble alarm, multiple alert protections
7 User-defined geo-fence support
8 Real-time tracking with trace playback
9 Firmware OTA upgrade supported
10 Web platform and Android/iOS app
Overview

About GS300 Asset GPS Tracker

GS300 is a professional 4G asset GPS tracking device engineered for transport, logistics, container monitoring, and valuable asset protection. Equipped with a high-capacity 7800mAh non-rechargeable battery, the device supports extended standby operation for long-term deployments. It features multi-constellation positioning (GPS+BDS+GLONASS), ensuring high-accuracy tracking up to ≤5 meters. With IP68 waterproof protection, built-in light sensor, disassemble alarm, geo-fence alerts, and trace playback functionality, GS300 delivers reliable performance in harsh environmental conditions.

FAQ

Frequently Asked Questions about GS300 Asset GPS Tracker

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.
A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.
GS300 Asset GPS Tracker can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.
GS300 Asset GPS Tracker is a battery-powered GPS tracker for assets that don't have a power source—generators, trailers, construction equipment, containers. No wiring required; place and track via our platform.
Battery life depends on reporting frequency and motion. Typical range is 3–12 months. Configure update intervals to balance battery life and tracking accuracy. Low-battery alerts notify before replacement.
Track generators, trailers, shipping containers, construction equipment, two-wheelers, and any movable asset. Ideal for rental companies, logistics, and businesses with unattended assets.
Yes. Get alerts when the asset moves, leaves a geofence, or is tampered with. Motion-based tracking can increase update frequency when moving and reduce it when stationary to save battery.
Pricing includes hardware and connectivity. Contact Pictor for a quote. We offer competitive rates for single units and volume discounts for fleet deployments.
Yes. GS300 Asset GPS Tracker is built for rugged conditions—dust, moisture, and temperature extremes. IP-rated enclosures protect the unit. Suitable for construction sites, ports, and industrial environments.
Yes. Set geofences for yards, sites, or depots. Receive alerts when assets enter or leave. Useful for theft prevention and asset utilisation monitoring.
Next Step

Ready to evaluate GS300 Asset GPS Tracker for your fleet?

Get a scoped quote, schedule a demo, and validate rollout fit, installation assumptions, and support model.

Request Consultation
Explore

Related Products

More products you might like.

45 G 2G/4G Asset GPS Tracker 10000mAh
10000 Mah Tracker

45 G 2G/4G Asset GPS Tracker 10000mAh

45 G is a rechargeable magnetic Asset GPS Tracker with 10000mAh battery capacity, supporting 2G/4G LTE network...

View product
G57 2G Asset GPS Tracker
3000 Mah Tracker

G57 2G Asset GPS Tracker

Compact magnetic 2G GPS asset tracker with 3000mAh battery, real-time tracking, geo-fence alerts, and remote v...

View product
G5A 6000mAh Asset GPS Tracker
6000 Mah Tracker

G5A 6000mAh Asset GPS Tracker

G5A 6000mAh is a rechargeable magnetic asset GPS tracker supporting 2G/4G network with real-time tracking, geo...

View product
P08 4G Magnet GPS Tracker
10000 Mah Tracker

P08 4G Magnet GPS Tracker

P08 is a 4G magnetic GPS tracker with a powerful 10000mAh battery, designed for long-term real-time vehicle an...

View product
PO8SA 4G Magnet GPS Tracker
10000 Mah Tracker

PO8SA 4G Magnet GPS Tracker

PO8SA 4G Magnet GPS Tracker is a compact real-time tracking device with strong magnetic mounting, 4G connectiv...

View product

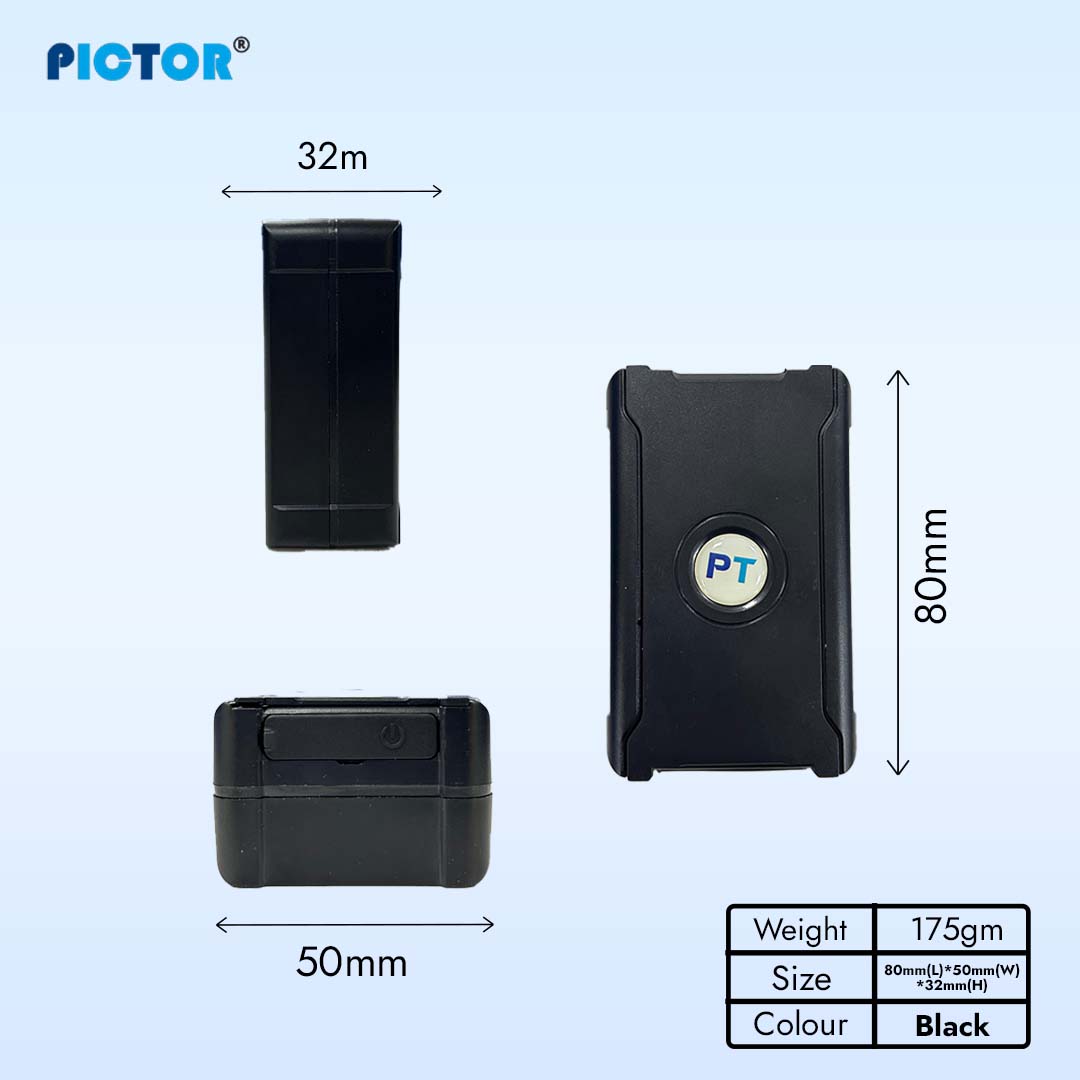

PT20 2G Magnetic GPS Tracker
