PT20 2G Magnetic GPS Tracker
PT20 2G is a long-standby magnetic GPS tracker with built-in 6000mAh battery, real-time tracking, vibration alert, and geo-fence support, designed for asset and vehicle tracking applications.
Need specs or bulk pricing? Contact our team — we usually respond within one business day.
Why operators choose us
Proven deployment and support
From specs to installation, we help teams launch faster with fewer surprises.
PT20 2G is a long-standby magnetic GPS tracker with built-in 6000mAh battery, real-time tracking, vibration alert, and geo-fence support, designed for asset and vehicle tracking applications.
How to evaluate this product
Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.
Key Highlights
- Supports continuous location monitoring via WEB/APP platform
- Built-in strong magnet for easy and secure installation
- 6000mAh battery with intelligent power saving mode
- Set virtual boundaries with entry/exit alerts
- Triggers alarm when vibration is detected
Technical Specifications
Use this table for compatibility checks, deployment planning, and integration review.
| Parameter | Value |
|---|---|
| Device Type | Magnetic GPS Tracker |
| Network Type | 2G GSM/GPRS |
| GPS Chip | MTK2503D |
| GSM Frequency | 850/900/1800/1900 MHz |
| GPRS | Class 12, TCP/IP built-in GSM module |
| Channel | 20 Channels |
| Tracking Sensitivity | -160 dBm |
| Acquisition Sensitivity | -144 dBm |
| Positioning Accuracy | <5m |
| Locating Time - Hot Start | <2 sec (Open Sky) |
| Locating Time - Warm Start | <15 sec |
| Locating Time - Cold Start | <38 sec (Open Sky) |
| Battery Capacity | 6000mAh Built-in Battery |
| Working Voltage | 3.7V |
| Voltage Input | 5V |
| Working Temperature | -25°C to 80°C |
| Dimensions | 80mm x 50mm x 32mm |
| Weight | 175g |
| GPS Antenna | Built-in 25mm x 25mm x 2mm Ceramic Chip Antenna |
| GSM Antenna | Shrapnel Antenna |
| LED Indicators - Power LED | Red |
| LED Indicators - GPS LED | Blue |
| LED Indicators - GSM LED | Yellow |
| Communication Module | GSM/GPRS Class 12 |
| Upload Interval | 10 seconds |
| Working Modes | Intelligent Power Saving Mode / Interval Mode |
| Third-Party Query Support | WEB / APP |

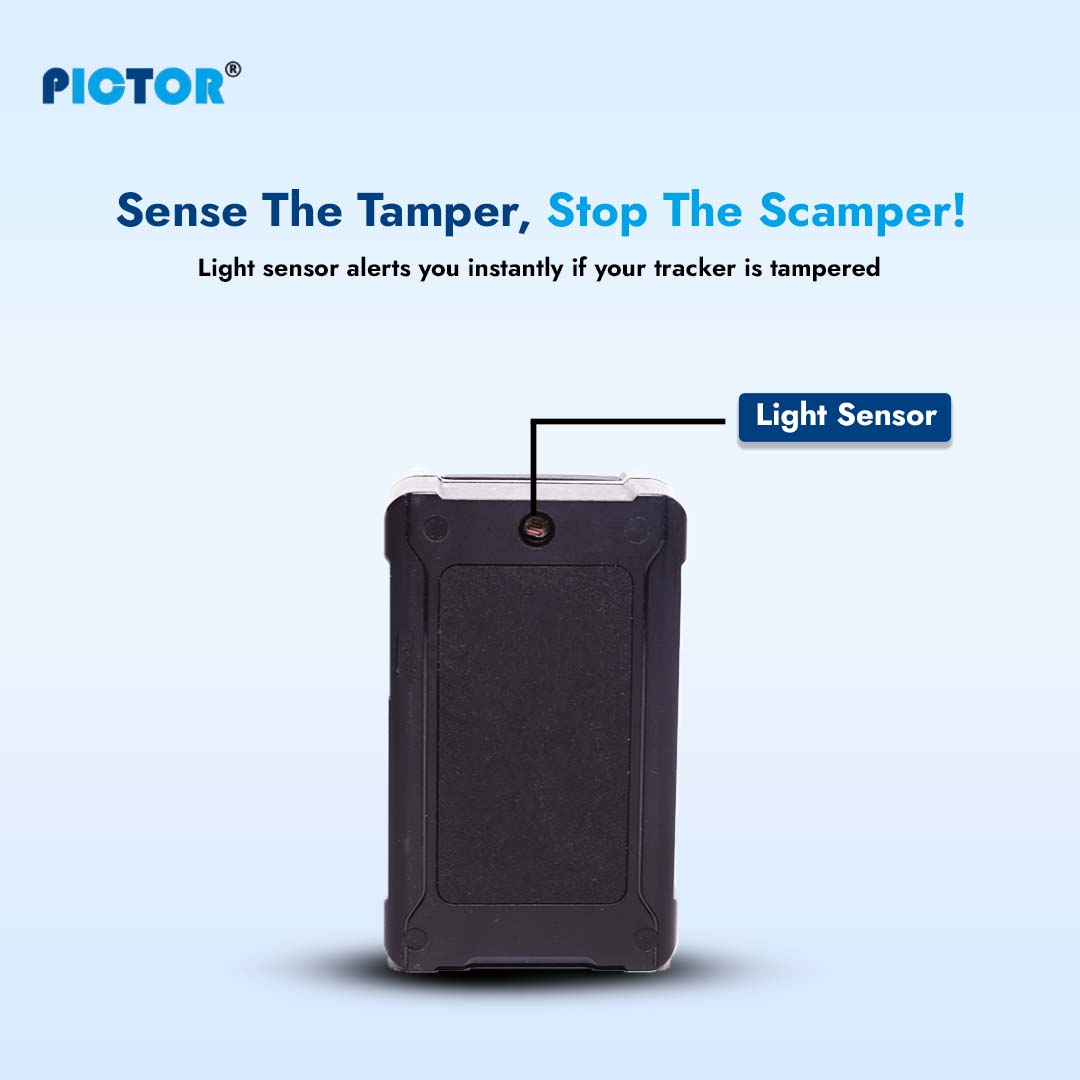

| Light Sensor | Yes |
| Vibration Sensor | Yes |
| Power Button | Yes |
| SOS Button | No |
| ACC Detection | No |
| Oil/Electricity Cut Off | No |
| Data Uploading Port | Yes |
| Function Port | No |
Product Features
Features listed here should be evaluated against your route profile, risk controls, and team workflows.
| # | Feature |
|---|---|
| 1 | Supports continuous location monitoring via WEB/APP platform |
| 2 | Built-in strong magnet for easy and secure installation |
| 3 | 6000mAh battery with intelligent power saving mode |
| 4 | Set virtual boundaries with entry/exit alerts |
| 5 | Triggers alarm when vibration is detected |
| 6 | Tamper and disassemble detection alert |
| 7 | Built-in microphone for remote listening |
| 8 | Low battery alarm, overspeed alarm, disassemble alarm |
| 9 | Every 10 seconds (configurable) |
| 10 | SMS command or tracking platform |
About PT20 2G Magnetic GPS Tracker
PT20 2G Magnetic GPS Tracker is a self-contained battery-powered tracking device designed for transport, logistics, container monitoring, construction equipment, luggage, and valuable asset tracking. Equipped with MTK2503D GPS chip and GSM/GPRS 2G communication, it provides real-time tracking with intelligent power-saving mode for extended standby. The strong magnetic base allows easy installation on vehicles or metal surfaces. It supports web and app platform tracking, vibration alerts, geo-fence monitoring, and remote voice monitoring.
Frequently Asked Questions about PT20 2G Magnetic GPS Tracker
Ready to evaluate PT20 2G Magnetic GPS Tracker for your fleet?
Get a scoped quote, schedule a demo, and validate rollout fit, installation assumptions, and support model.
