PT20 4G Long Standby GPS Tracker
PT20 4G is a long standby real-time GPS tracking device with built-in 6000mAh battery, 4G connectivity, strong magnetic mounting, and intelligent power saving mode for vehicle and asset tracking.
Need specs or bulk pricing? Contact our team — we usually respond within one business day.
Why operators choose us
Proven deployment and support
From specs to installation, we help teams launch faster with fewer surprises.
PT20 4G is a long standby real-time GPS tracking device with built-in 6000mAh battery, 4G connectivity, strong magnetic mounting, and intelligent power saving mode for vehicle and asset tracking.
How to evaluate this product
Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.
Key Highlights
- Supports GPS/BDS positioning with ≤5m accuracy
- 6000mAh rechargeable battery for extended operation

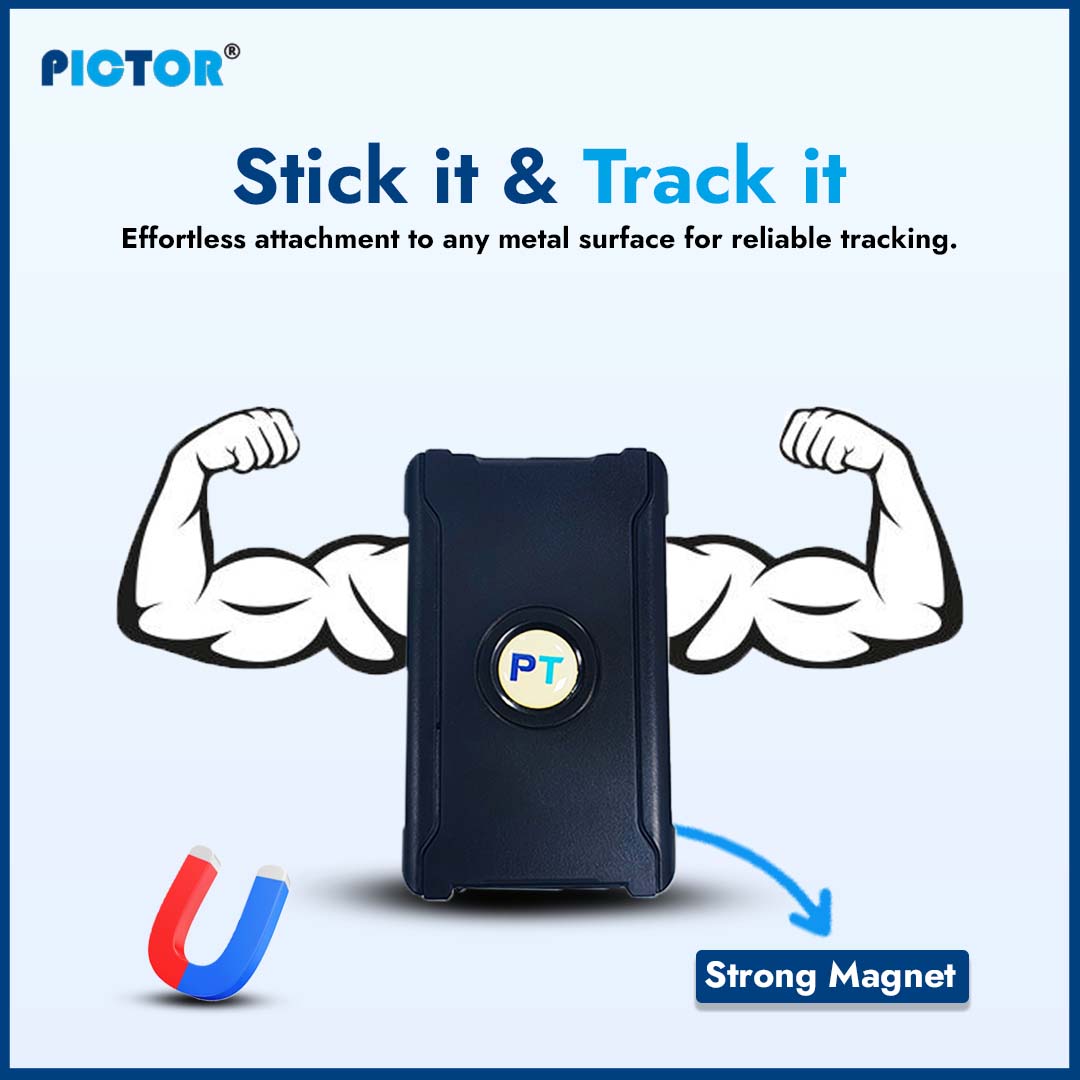

- Easy installation on metal surfaces
- Built-in microphone for live voice monitoring
- Set geographic boundaries with instant alerts
Technical Specifications
Use this table for compatibility checks, deployment planning, and integration review.
| Parameter | Value |
|---|---|
| Network | 4G |
| Location Accuracy | ≤5m |
| GPS Module | Neoway N58 |
| GPS Chip | AT6558R (BD + GPS) |
| Channels | 56 |
| Acquisition Sensitivity | -144dBm |
| Tracking Sensitivity | -165dBm |

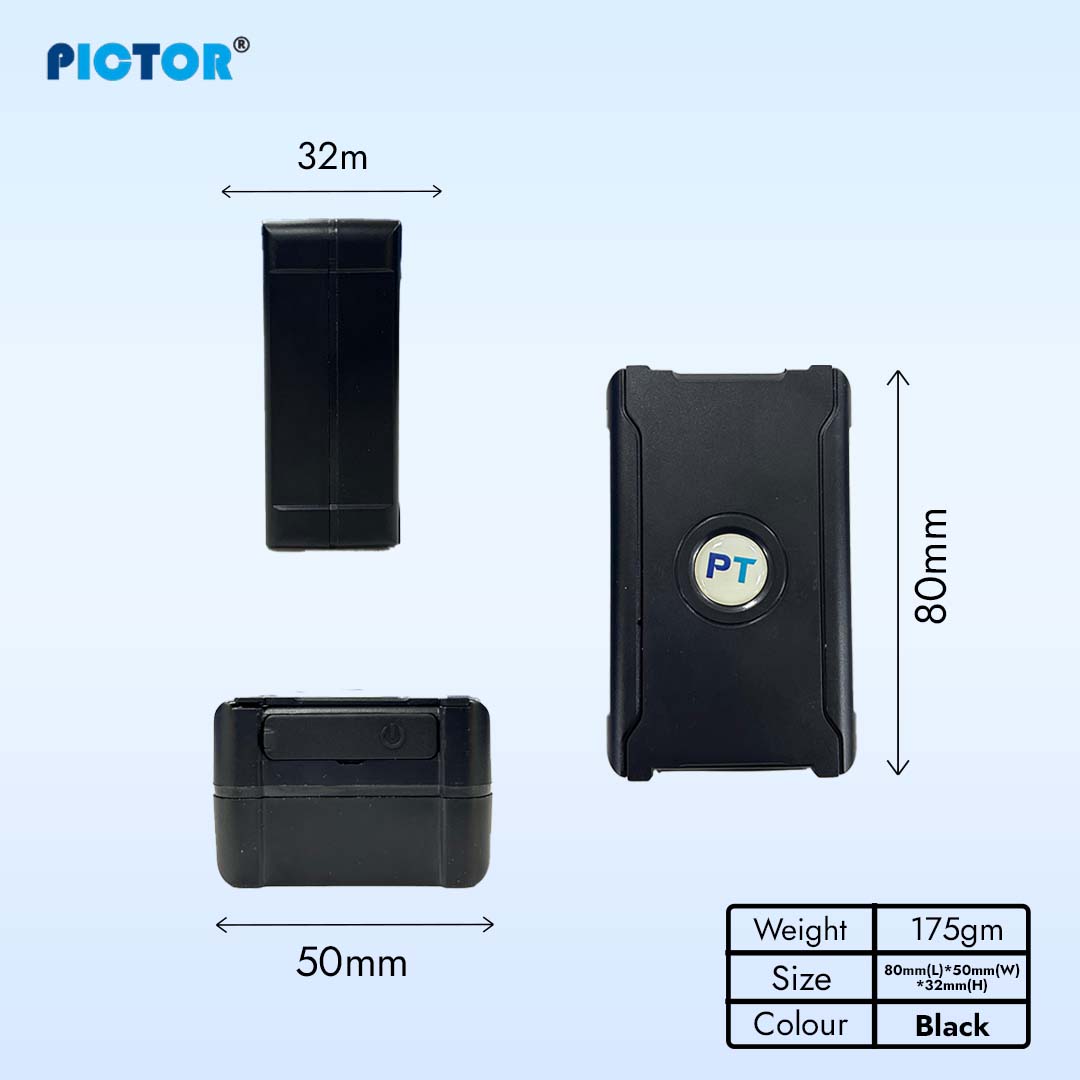

| Dimension | 80(L) × 50(W) × 32(H) mm |
| Voltage Input | 5V |
| Battery Capacity | 6000mAh |
| Built-in Battery | Yes |
| Working Voltage | 3.7V |
| Working Temperature | -25°C to +65°C |
| GPRS Uploading Interval | 10 Seconds |
| Working Mode | Intelligent Power Saving Mode / Interval Mode |
| GPS Antenna | Built-in 25×25×2mm Ceramic Chip Antenna |
| 4G Antenna | FPC Antenna |
| Hot Start | <2 Seconds (Open Sky) |
| Warm Start | <15 Seconds |
| Cold Start | <38 Seconds (Open Sky) |
| Power Button | Yes |
| SOS Button | No |
| Vibration Sensor | Yes |
| Microphone | Yes |
| ACC Detection | No |
| Oil/Electricity Cut Off | No |
| Data Upload Port | Yes |
| Function Port | No |
| Third Party Query | Web / App |
| Remotely Cut Off Power | No |

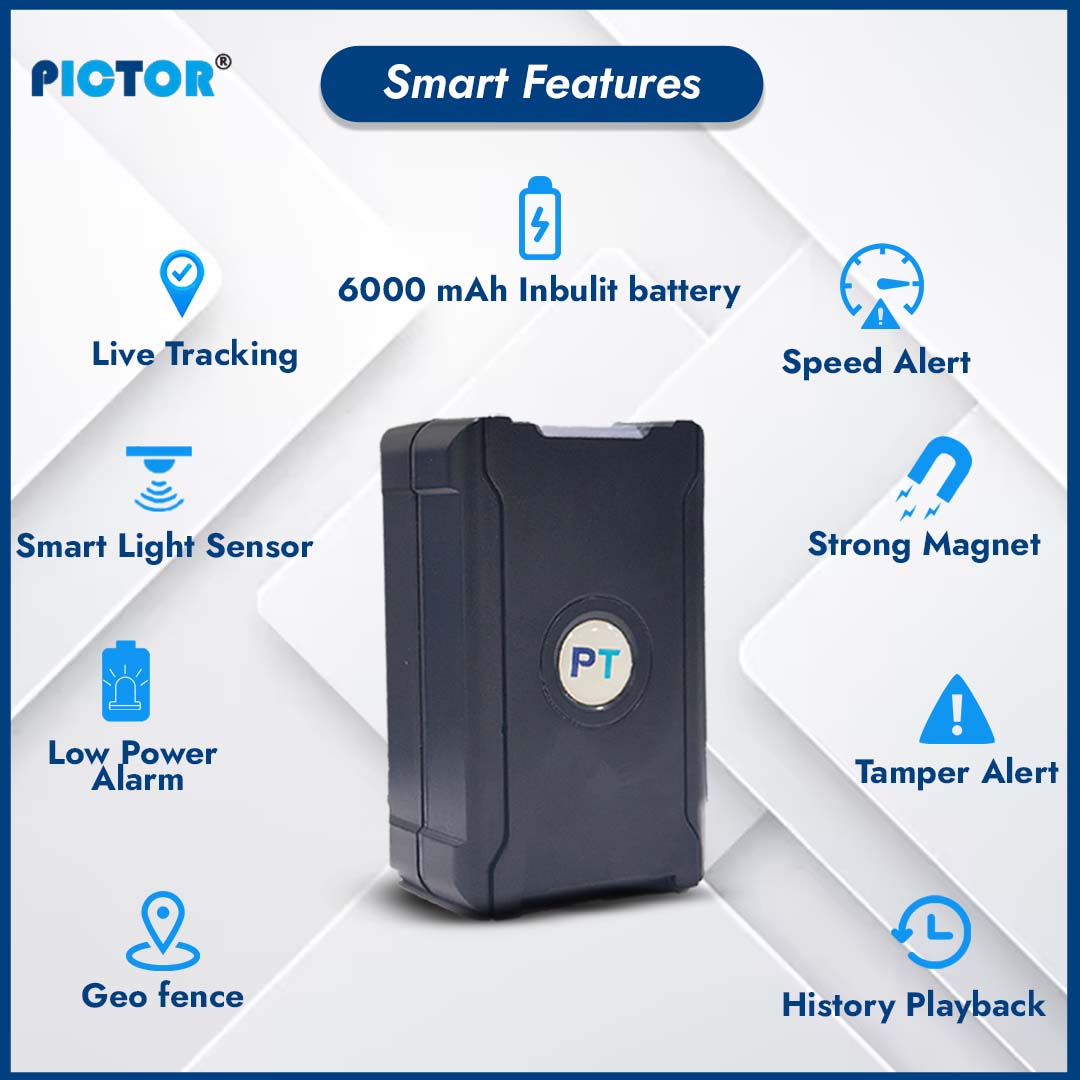

Product Features
Features listed here should be evaluated against your route profile, risk controls, and team workflows.
| # | Feature |
|---|---|
| 1 | Supports GPS/BDS positioning with ≤5m accuracy |
| 2 | 6000mAh rechargeable battery for extended operation |
| 3 | Easy installation on metal surfaces |
| 4 | Built-in microphone for live voice monitoring |
| 5 | Set geographic boundaries with instant alerts |
| 6 | Built-in vibration sensor for movement detection |

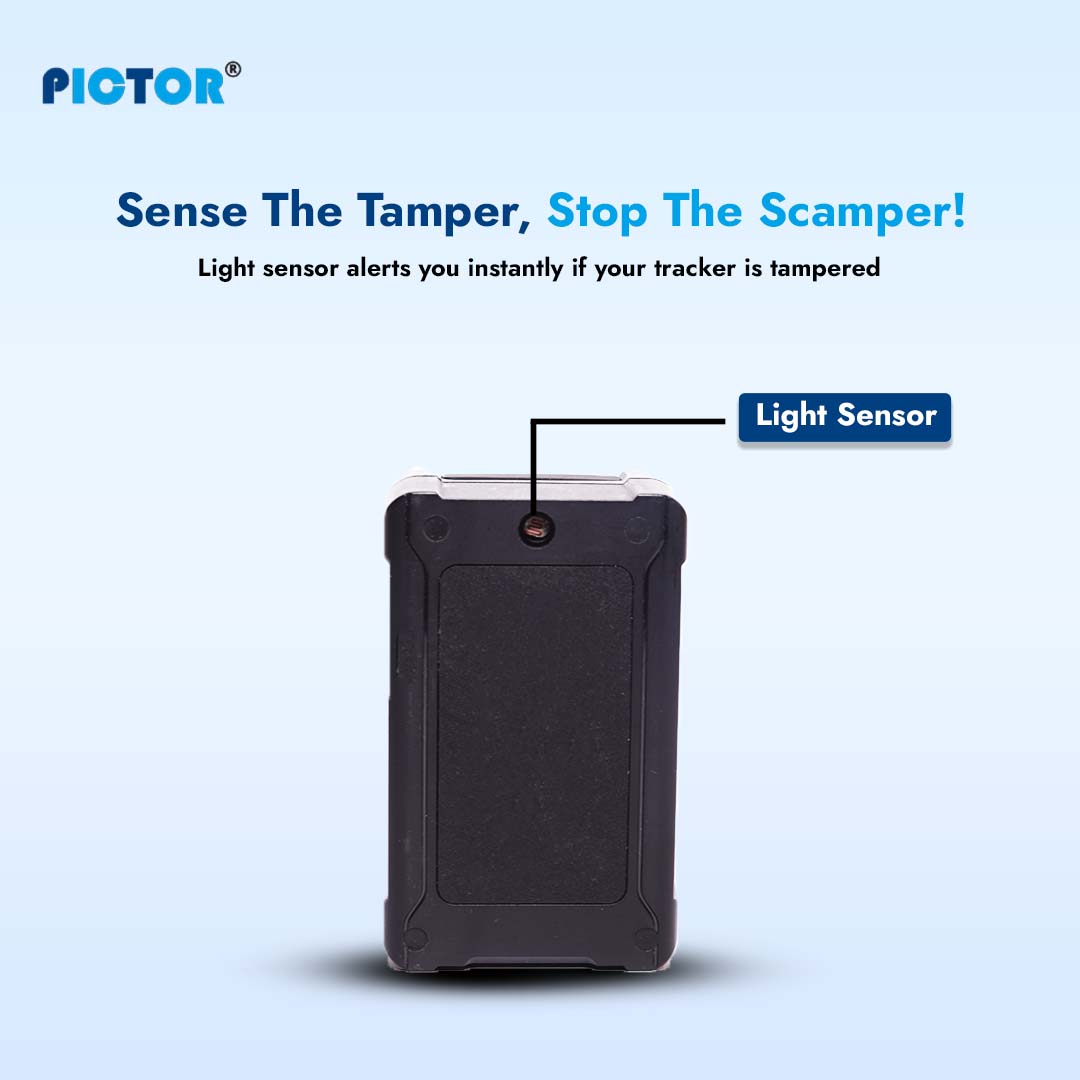

| 7 | Integrated light detection sensor |
| 8 | LED indicators for Power (Red), GPS (Blue), GSM (Yellow) |
| 9 | Parameter settings via SMS or tracking platform |
| 10 | Small form factor (80×50×32mm) for concealed installation |
About PT20 4G Long Standby GPS Tracker
PT20 4G is a compact and high-performance long standby GPS tracker designed for real-time tracking and remote monitoring. Equipped with a 6000mAh rechargeable battery, built-in ceramic GPS antenna, 4G FPC antenna, and vibration & light sensors, it ensures accurate positioning and reliable performance. The device supports SMS and platform configuration, remote voice monitoring, GEO-fence alerts, vibration alerts, and intelligent power-saving modes. With strong magnetic mounting and compact dimensions (80×50×32mm), it is ideal for vehicle and asset tracking applications.
