GPS Telematics Pro
Product Wireless Asset Tracker

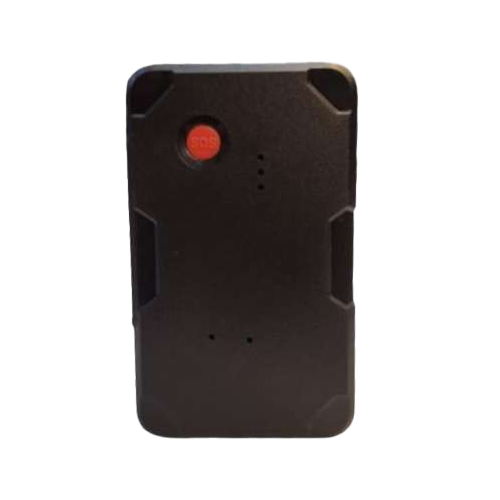

PT30 Magnetic GPS Tracker

PT30 is a magnetic real-time GPS tracker with quad-band GSM support, long standby capability, and intelligent power-saving modes for reliable vehicle and asset tracking.

Get a quote Request demo
Sales 1800 123 2632

Need specs or bulk pricing? Contact our team — we usually respond within one business day.

pictor — product
PT30- 3000-MAH.png
SKU PT30

Why operators choose us

Proven deployment and support

From specs to installation, we help teams launch faster with fewer surprises.

9,00,000+
Devices sending data via our platform since 2014.
7,000+
Paying customers with live vehicles and assets since 2014.
118+
Indian cities with active customers since 2014.
12+ years
Commercial fleet deployments operating since 2014.
PT30- 3000-MAH.png
SKU: PT30 Wireless Asset Tracker

PT30 is a magnetic real-time GPS tracker with quad-band GSM support, long standby capability, and intelligent power-saving modes for reliable vehicle and asset tracking.

How to evaluate this product

Check fit by vehicle type, monitoring objective, installation method, and reporting needs. If you are comparing options, use our comparison and solutions pages before finalizing procurement.

Compare options See related solutions Explore technology stack

Key Highlights

  • Live GPS location tracking with data upload to platform server
  • Playback historical tracking data
  • Triggers alert when vehicle exceeds preset speed
  • Detects movement or vibration
  • Enters sleep mode when parked for more than 3 minutes
Request Pricing & Demo

Downloads

PT30 4G Tracker Communication Protocol_v1.8 PT30 USER MANUAL
Specifications

Technical Specifications

Use this table for compatibility checks, deployment planning, and integration review.

Parameter Value
Model PT30
Network Type GSM Quad Band
GSM Frequency 850/900/1800/1900 MHz
GPRS Class 12, TCP/IP
Working Voltage 9V - 100V DC
Working Current (12V) ≈22mA
Working Current (24V) ≈12mA
Battery Capacity 3000mAh Rechargeable
GPS Accuracy 10m (2D RM)
Cold Start Time ≈38 seconds (Open sky)
Warm Start Time ≈32 seconds
Hot Start Time ≈2 seconds (Open sky)
Operating Temperature -20°C to +70°C
Operating Humidity 20% - 80% RH
Mounting Type Magnetic
Positioning System GPS
Data Transmission GPRS via TCP/IP
Sleep Function Automatic sleep when stationary
Heartbeat Upload Configurable interval
Command Examples - Smart Mode MODE1,60,180#
Command Examples - Power Save Mode MODE2,30#
Command Examples - Status Inquiry CXZT
Command Examples - Factory Reset FORMAT
Command Examples - Position Inquiry URL#
Features

Product Features

Features listed here should be evaluated against your route profile, risk controls, and team workflows.

# Feature
1 Live GPS location tracking with data upload to platform server
2 Playback historical tracking data
3 Triggers alert when vehicle exceeds preset speed
4 Detects movement or vibration
5 Enters sleep mode when parked for more than 3 minutes
6 Uploads GPS data at defined intervals and heartbeat packets
7 Wakes up at preset intervals, uploads data for 3 minutes, then sleeps
8 Red (Power), Yellow (GSM), Blue (GPS)
9 Supports status inquiry, factory reset, and location inquiry via SMS command
Overview

About PT30 Magnetic GPS Tracker

The PT30 Magnetic GPS Tracker is a compact and powerful tracking device designed for real-time vehicle and asset monitoring. Equipped with quad-band GSM and GPRS Class 12 connectivity, it ensures stable communication across global networks. The device features a built-in 3000mAh rechargeable battery and strong magnetic mounting for easy installation. It supports smart tracking modes, vibration alerts, overspeed alerts, and sleep standby functionality for extended battery life. With precise GPS positioning accuracy of up to 10 meters, PT30 is suitable for fleet management, asset protection, and vehicle security applications.

FAQ

Frequently Asked Questions about PT30 Magnetic GPS Tracker

Choose based on vehicle type, deployment scale, and monitoring objective. For most buyers, the best process is pilot first, validate data quality and workflow fit, then scale with the model that gives reliable operations and manageable total cost of ownership.
A complete implementation usually includes device setup, platform configuration, alert-rule tuning, and user onboarding. The exact scope depends on your rollout size, integration needs, and whether additional modules such as fuel sensing or video are included.
PT30 Magnetic GPS Tracker can improve visibility, response time for operational exceptions, and reporting discipline. Financial and safety gains are typically strongest when teams define baseline KPIs and run consistent review and coaching workflows after go-live.
PT30 Magnetic GPS Tracker is a battery-powered GPS tracker for assets that don't have a power source—generators, trailers, construction equipment, containers. No wiring required; place and track via our platform.
Battery life depends on reporting frequency and motion. Typical range is 3–12 months. Configure update intervals to balance battery life and tracking accuracy. Low-battery alerts notify before replacement.
Track generators, trailers, shipping containers, construction equipment, two-wheelers, and any movable asset. Ideal for rental companies, logistics, and businesses with unattended assets.
Yes. Get alerts when the asset moves, leaves a geofence, or is tampered with. Motion-based tracking can increase update frequency when moving and reduce it when stationary to save battery.
Pricing includes hardware and connectivity. Contact Pictor for a quote. We offer competitive rates for single units and volume discounts for fleet deployments.
Yes. PT30 Magnetic GPS Tracker is built for rugged conditions—dust, moisture, and temperature extremes. IP-rated enclosures protect the unit. Suitable for construction sites, ports, and industrial environments.
Yes. Set geofences for yards, sites, or depots. Receive alerts when assets enter or leave. Useful for theft prevention and asset utilisation monitoring.
Next Step

Ready to evaluate PT30 Magnetic GPS Tracker for your fleet?

Get a scoped quote, schedule a demo, and validate rollout fit, installation assumptions, and support model.

Request Consultation
Explore

Related Products

More products you might like.

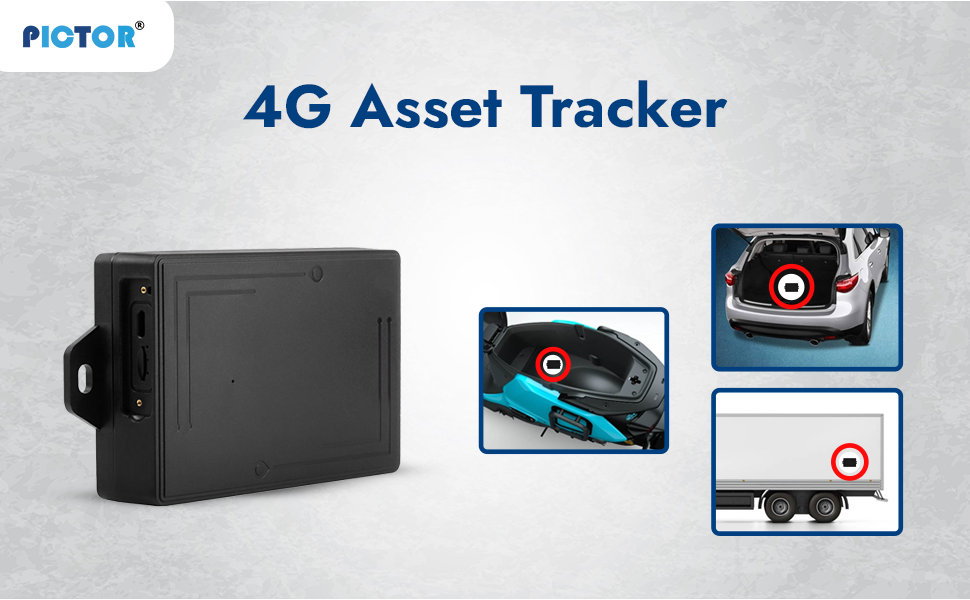

45 G 2G/4G Asset GPS Tracker 10000mAh
10000 Mah Tracker

45 G 2G/4G Asset GPS Tracker 10000mAh

45 G is a rechargeable magnetic Asset GPS Tracker with 10000mAh battery capacity, supporting 2G/4G LTE network...

View product

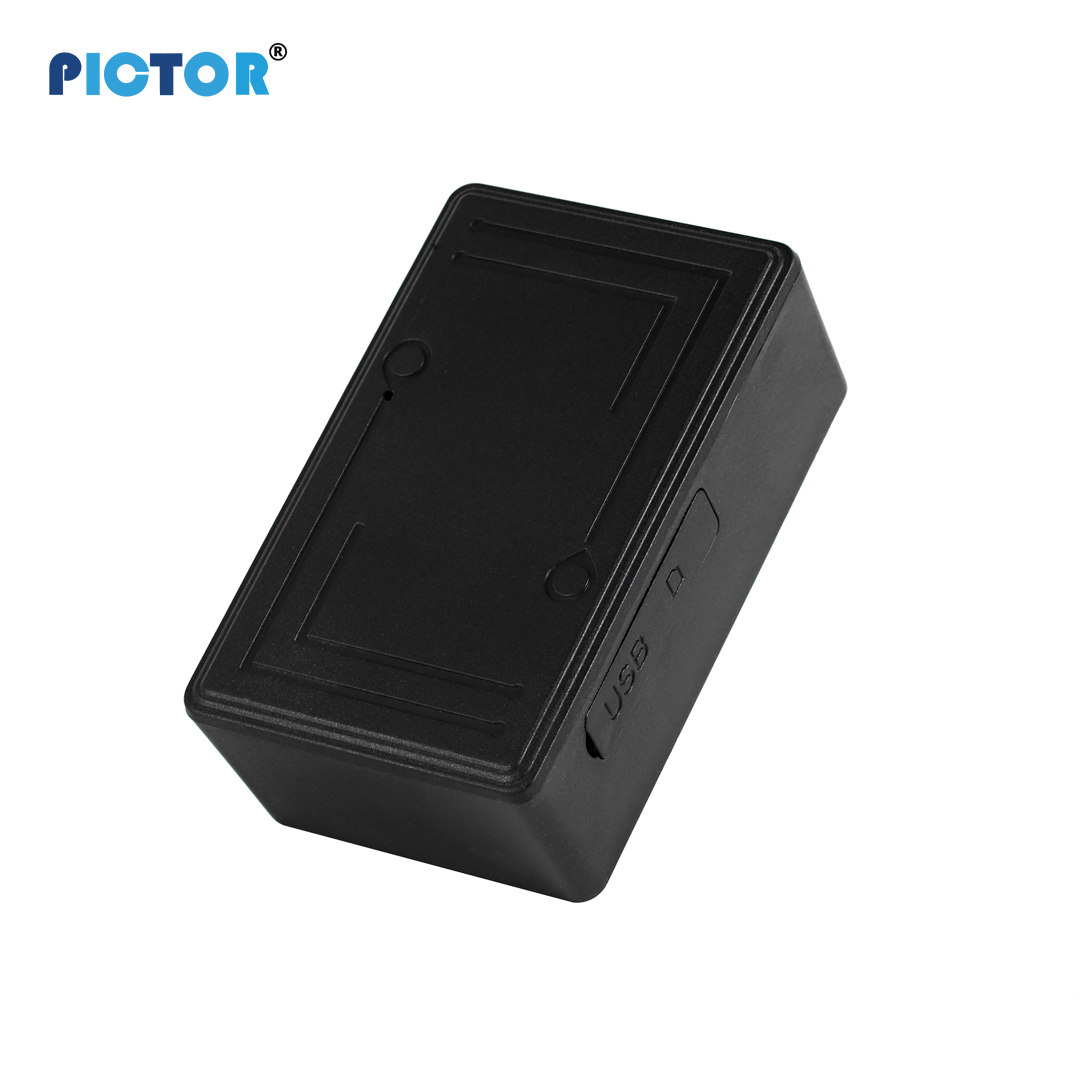

G57 2G Asset GPS Tracker
3000 Mah Tracker

G57 2G Asset GPS Tracker

Compact magnetic 2G GPS asset tracker with 3000mAh battery, real-time tracking, geo-fence alerts, and remote v...

View product

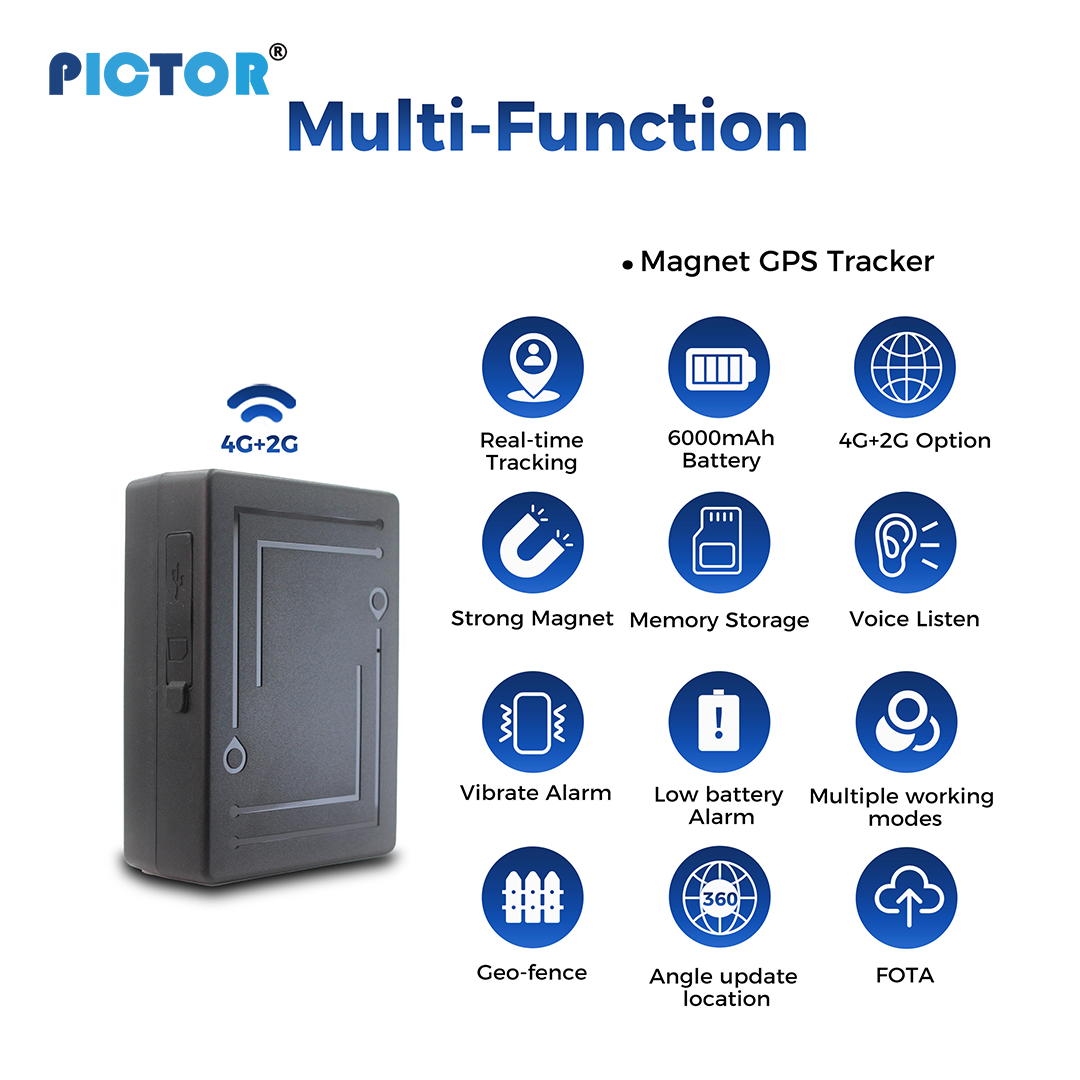

G5A 6000mAh Asset GPS Tracker
6000 Mah Tracker

G5A 6000mAh Asset GPS Tracker

G5A 6000mAh is a rechargeable magnetic asset GPS tracker supporting 2G/4G network with real-time tracking, geo...

View product

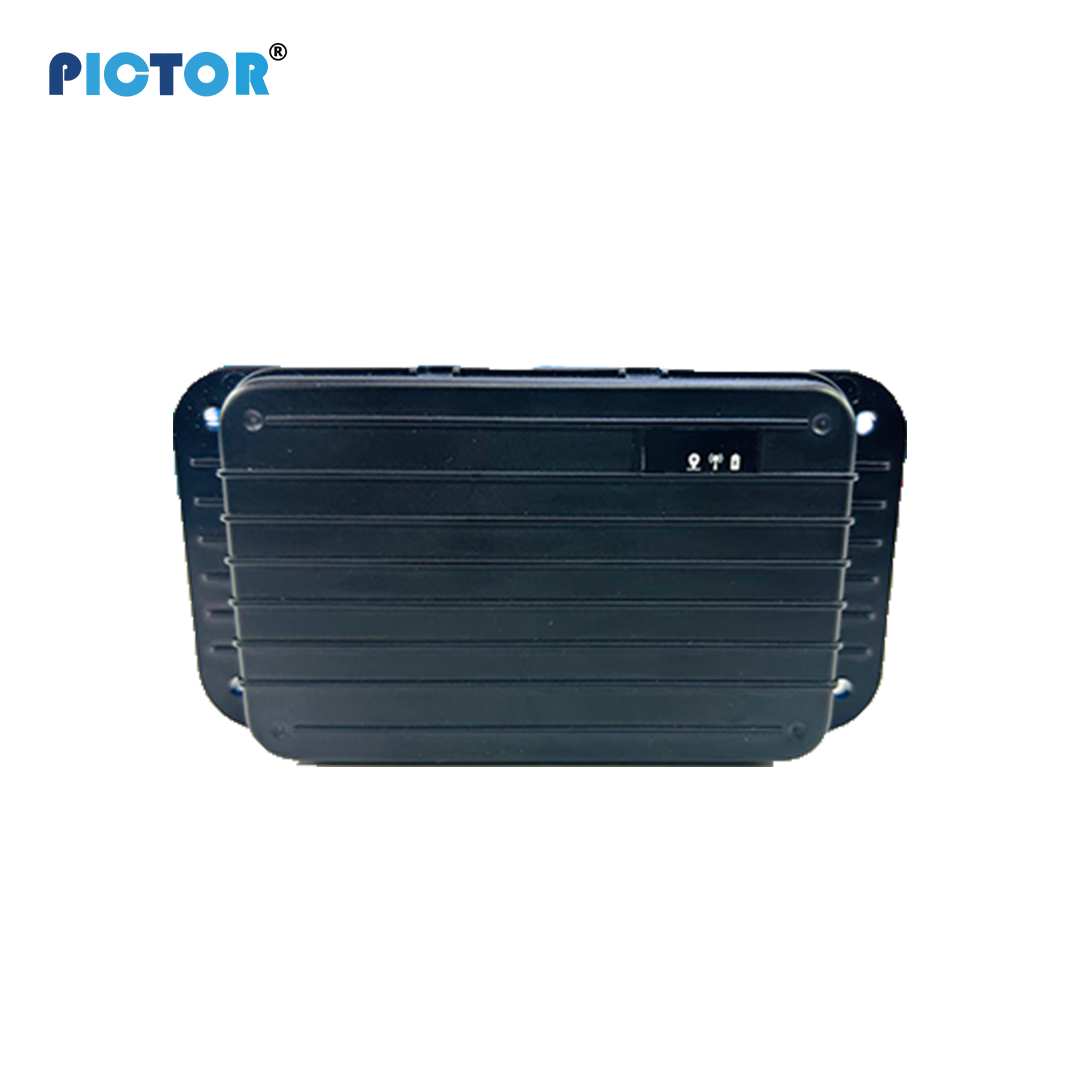

GS300 Asset GPS Tracker
7800 Mah Tracker

GS300 Asset GPS Tracker

GS300 is a 4G wireless asset GPS tracker with a built-in 7800mAh battery, designed for long-term real-time tra...

View product
P08 4G Magnet GPS Tracker
10000 Mah Tracker

P08 4G Magnet GPS Tracker

P08 is a 4G magnetic GPS tracker with a powerful 10000mAh battery, designed for long-term real-time vehicle an...

View product

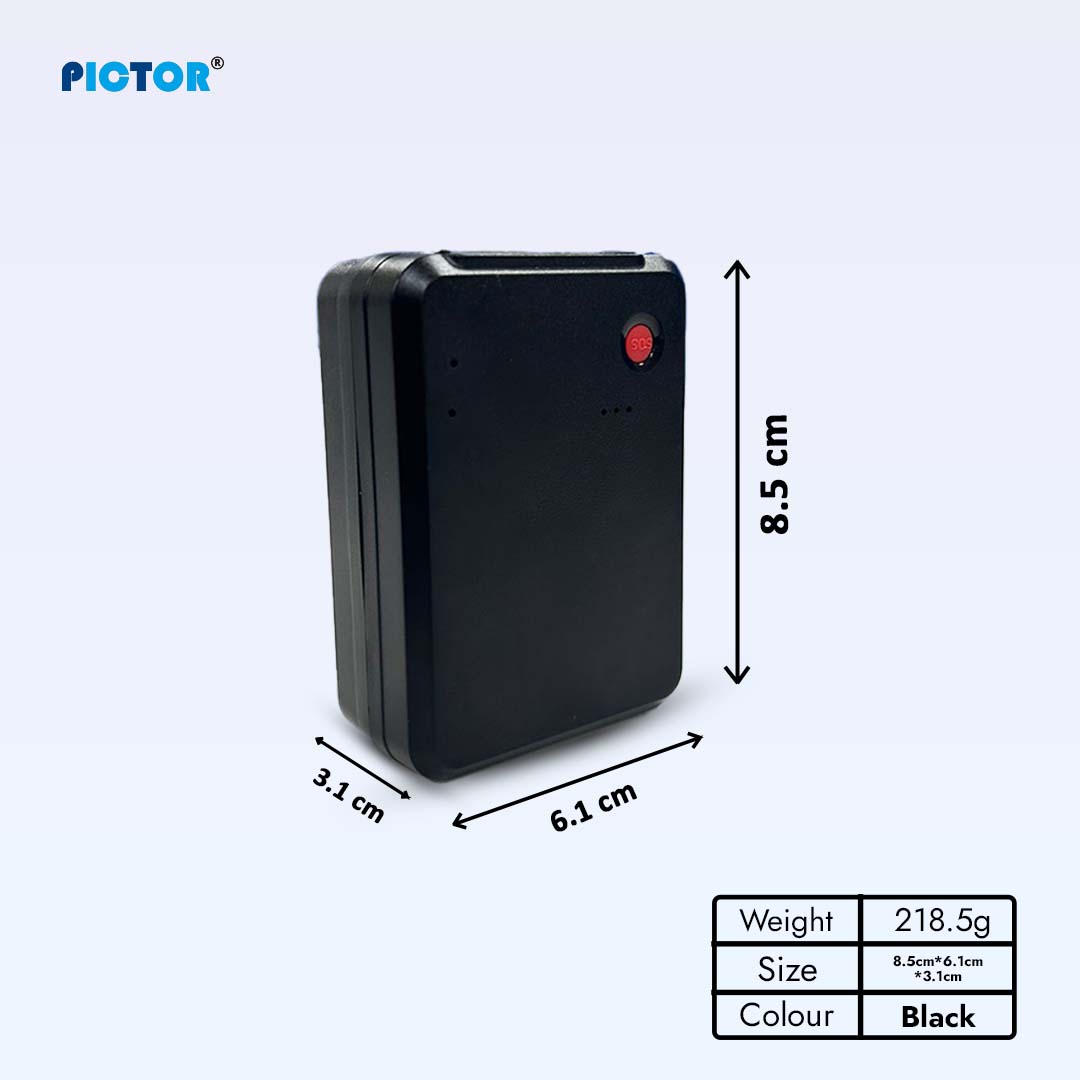

PO8SA 4G Magnet GPS Tracker
